IG192HFP Hyper Fast Poll Modem
High Speed Industrial Grade 19.2 kbps Hyper Fast Poll Multi-Drop Modem
for Industrial, Utility & SCADA Applications

view modem Manual

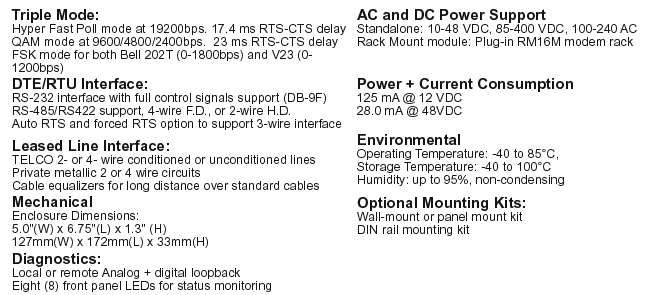

  • DTE/RTU Interface:
    RS-232 interface with full control signals support (DB-9F)
    RS-485/RS422 support, 4-wire F.D., or 2-wire H.D.
    Auto RTS and forced RTS option supports 3-wire interface Carrier is turned on by Data from RTU
  • Leased Line Interface:
    TELCO 2- or 4- wire conditioned or unconditioned lines
    Private metallic 2 or 4 wire circuits Cable equalizers for long distance over standard cables
  • Mechanical:
    Enclosure Dimensions:
    5.0"(W) x 6.75"(L) x 1.3" (H)
    127mm(W) x 172mm(L) x 33mm(H)
  • Diagnostics:
    Local or remote Analog + digital loopback
    Eight (8) front panel LEDs for status monitoring
  • AC and DC Power Support:
    Standalone: auto ranging power
    10-60 VDC, 85-400 VDC, 100-240 AC
    Rack Mount module: Plug-in RM16M modem rack
  • Environmental:
    Operating Temperature: -40 to 85C,
    Storage Temperature: -40 to 100C
    Humidity: up to 95%, non-condensing
  • Power + Current Consumption:
    125 mA @ 12 VDC
    28.0 mA @ 48VDC
  • Optional Mounting Kits:
    Wall-mount or panel mount kit
    DIN rail mounting kit








modem comes with 9 pin DB9 to 25pin DB25 adaptor

Industrial Grade IG192HFP Hyper Fast Poll Modem

The IG192HFP Industrial Grade 19.2kbps Hyper Fast Poll industrial modem is the highest performance triple mode, full featured leased line modem of its class. These modems are designed for rugged industrial automation, utility, and SCADA communications. Boasting the latest innovative digital signal processing (DSP) technology, the IG192HFP modem delivers a 17.4 ms training time (RTS-CTS delay) at 19200bps. The modem will fall back to support 9600/4800/2400 bps at 23 ms RTSCTS delay, as well as Bell 202T and V.23 operation. The IG192HFP is ideal for point-to-point and multi-point polling network with the industry's fastest training time.

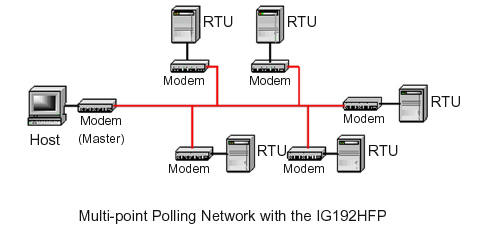

The IG192HFP Industrial Grade 19.2 kbps Hyper Fast Poll modem is designed to operate over 4-wire full duplex or 2-wire half duplex unconditioned leased lines or private metallic circuits. For optimum performance, the modem employs QAM modulations and Viterbi decoding scheme along with its adaptive equalizer to communicate over a variety of transmission lines. The IG192HFP supports DTE/RTUs with an EIA RS-232 and RS-485 serial port at speeds of 19200, 9600, 4800, 2400, and 1200 bps. With its Auto-RTS mode, the modem can support DTE/RTUs with 3-wire serial interface (TD, RD, SG) in point-to-point and multi-point polling applications.

The triple mode capability allows the IG192HFP Industrial Grade 19.2 kbps Hyper Fast Poll modem to communicate with the older generation DSP9612FP at up to 9600 kbps and both the Bell 202T and V.23 FSK modems at up to 1200 bps. The IG192HFP Industrial Grade 19.2 kbps Hyper Fast Poll modem is designed to operate over a wide range of AC or DC power supply voltages and temperatures. With proven reliability and ease of installation, the IG192HFP is ideal for point-to-multipoint polling networks, where fast training time and low network latency are critical for system performance.

modem card

view RM16M Chassis/Rack Spec Sheet page



Specifications




modem comes with 9 pin DB9 to 25pin DB25 adaptor

Ordering Information

IG192HFP Standalone AC voltage (100-240 VAC)
IG192HFP-LV Standalone DC voltage (10-48 VDC)
IG192HFP-HV Standalone High DC voltage (100-240 VAC, 85-400 VDC)

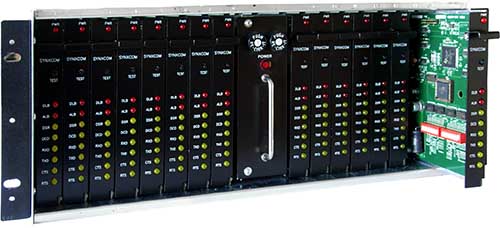

IG192HFP-RM RM16M Rack-mount module

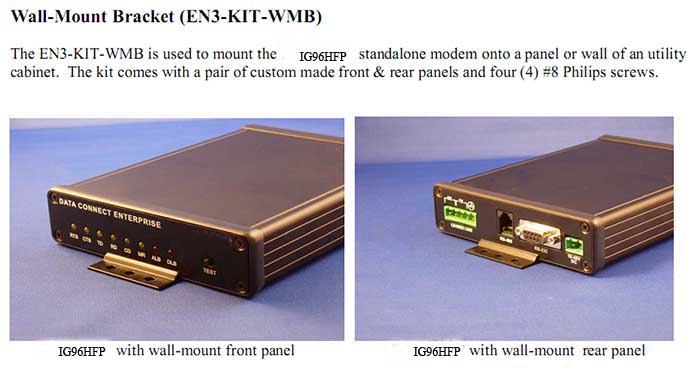

IG192HFP-WMB Wall-mount/panel-mount kit
IG192HFP-DIN DIN rail mounting kit
