High Speed - Multi-Drop modem

IG96HFP is ideal for point-to-point and multi-point polling network with the industry's fastest training time. This modem now supersedes the DSP9612 FP-LV-RM and modems and is completely compatible.

(This part number change allows us to harmonize the older DSP part number in to our newer DCE IG product line)

IG96HFP Hyper Fast Poll Modem High Speed Industrial Grade 9.6 kbps Hyper Fast Poll Multi-Drop Modem for Industrial, Utility & SCADA Applications

with AUTO RTS - Transmit Carrier can be triggered off data - view PDF for more info


Specifications
  • Triple Mode:
    Hyper Fast Poll (at 17.4 ms) RTS-CTS delay mode at 9,600bps, and 4,800 and 2400 QAM mode and FSK mode for Bell 202T (0-1800)modes
  • DTE/RTU Interface:
    RS-232 interface with full control signals support (DB-9F)
    RS-485/RS422 support, 4-wire F.D., or 2-wire H.D.
    Auto RTS and forced RTS option supports 3-wire interface Carrier is turned on by Data from RTU
  • Leased Line Interface:
    TELCO 2- or 4- wire conditioned or unconditioned lines
    Private metallic 2 or 4 wire circuits Cable equalizers for long distance over standard cables
  • Mechanical:
    Enclosure Dimensions:
    5.0"(W) x 6.75"(L) x 1.3" (H)
    127mm(W) x 172mm(L) x 33mm(H)
  • Diagnostics:
    Local or remote Analog + digital loopback
    Eight (8) front panel LEDs for status monitoring
  • AC and DC Power Support:
    Standalone: auto ranging power
    10-60 VDC, 85-400 VDC, 100-240 AC
    Rack Mount module: Plug-in RM16M modem rack
  • Environmental:
    Operating Temperature: -40 to 85C,
    Storage Temperature: -40 to 100C
    Humidity: up to 95%, non-condensing
  • Power + Current Consumption:
    125 mA @ 12 VDC
    28.0 mA @ 48VDC
  • Optional Mounting Kits:
    Wall-mount or panel mount kit
    DIN rail mounting kit


PLEASE NOTE - THE MODEM COMES WITH  A 9 PIN DB9 TO A 25 PIN DB25 ADAPTOR FOR WHEN THE APPLICATION REQUIRES A 25 PIN CONNECTOR

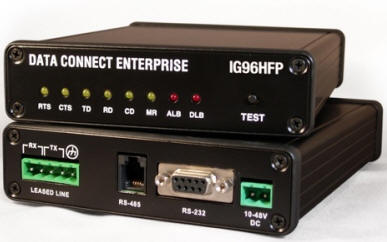

standalone table-top modem

view modem Manual

modem comes with 9 pin DB9 to 25pin DB25 adaptor



modem card

view RM16M Chassis/Rack Spec Sheet page



view modem Manual




The Data Connect IG96HFP Industrial Grade 9.6kbps Hyper Fast Poll industrial modem is the highest performance triple mode, full featured leased line modem of its class. These modems are designed for rugged industrial automation, utility, and SCADA communications. Boasting the latest innovative digital signal processing (DSP) technology, the IG96HFP modem will soon deliver a 17.4 ms training time (RTS-CTS delay) at 9600bps. The modem will also support 9600/4800/2400 bps at 23 ms RTS- CTS delay, as well as Bell 202T and V.23 operation. The IG96HFP is ideal for point-to-point and multi-point polling network with the industry's fastest training time.

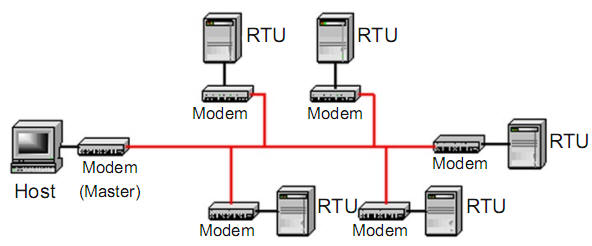

Multi-point Polling Network with the IG96HFP


Ordering Information - - Model No. Description

  • IG96HFP Standalone AC voltage (100-240 VAC)

  • IG96HFP-LV Standalone DC voltage (10-60 VDC)

  • IG96HFP-HV Standalone High DC voltage
    (100-240 VAC, 85-400 VDC)

  • IG96HFP-RM RM16M Rack-mount module

  • IG96HFP-WMB Wall-mount/panel-mount kit

  • IG96HFP-DIN DIN rail mounting kit
