Industrial Rated Ethernet Fiber Optic
Switch DC Powered

The TC3715 10/100 Industrial Ethernet Fiber Optic Switch -
Industrial Hardened up to -40C to 80C (optional)
 DC powered 12VDC, 24VDC, 24VDC, -48VDC, 125VDC or 115/230VAC


                       TC3715

Related Products:
TC3705, TC3210, TC3300



  • 6 Ethernet 10/100Base-T
    Auto-Sensing UTP Ports

  • 1 or 2 Fiber Optic 100Base-FX Ports

  • Optional 1-Fiber/WDM Version

  • Distances up to 80km

  • Multimode or Single Mode (1300/1550nm)

  • Full or Half-Duplex Operation

  • Industrial Hardened,
    -40C to 80C (optional)

  • Exceeds Pertinent NEMA & Caltrans Traffic Control Specifications

  • Rackmount

10/100 Industrial Ethernet Fiber Optic Switch
Model TC3715

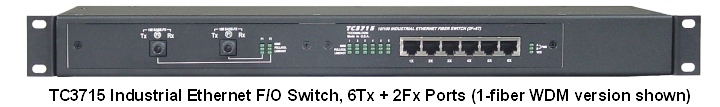

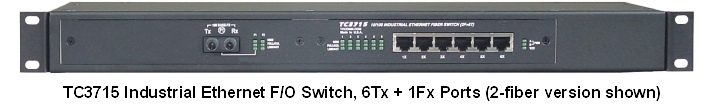

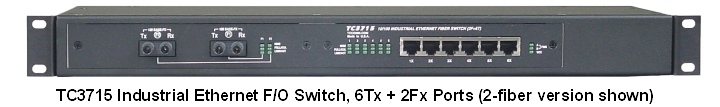

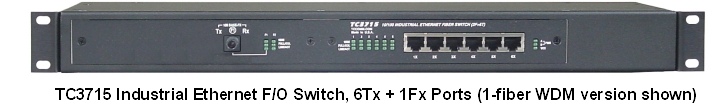

6Tx + 1Fx Ports, 2-fiber strands


6Tx + 2Fx Ports, 2-fiber strands


6Tx + 1Fx Ports, 1-fiber strand (WDM)


6Tx + 2Fx Ports, 1-fiber strand (WDM)

(Click on images to enlarge)


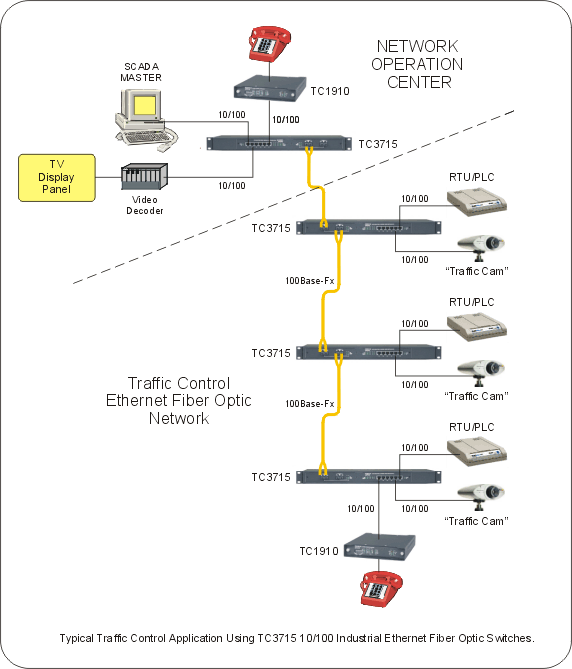

Applications

The TC3715 10/100 Ethernet Switch is a low cost and flexible bandwidth solution to efficiently handle the heavy traffic of local workgroups - reducing the need of expensive routers that usually cater to the network backbone.

Top


Description

Featuring distances up to 80km, the TC3715 10/100Base-T Industrial Ethernet Fiber Optic Switch provides a 100Base-FX port that combines Ethernet Switching and Fiber Optic technology to boost total network bandwidth.

The TC3715 offers one or two multimode (1300nm) or single mode (1300/1550nm) optical ports and six Ethernet 10/100Base-T Auto-Sensing switched ports. Each of these ports supports either 10Base-T or 100Base-T. A two-way "one fiber" single mode version is available. There are two optional versions (Model TC3715Q/Y) for extreme temperature applications (-20C to 70C, -40C to 80C).

Optional Bandwidth Control gives users, especially data service providers, the ability to control or limit bandwidth. Data rates for Bandwidth Control can be set at none, 128K, 256K, 512K, 1M, 2M, 4M, 8M, 16M, 32M and 64M. It can be managed through any Web Browser, Telnet or Serial Console. Password protection is provided.

Because it functions like an Ethernet bridge (connects multiple Ethernet segments to prevent unnecessary network traffic), it creates an efficient sub-divided switched LAN that provides full and transparent bandwidth for each segment.

The TC3715's modern switching technology eliminates the congestion problem inherent to the contention-oriented Ethernet CSMA/CD protocol. This improves predictable response times under heavy network loads. Previously, expensive routing technology was used to alleviate congestion from heavy traffic loads.

Power is 12VDC, optional 24Vdc, -48Vdc, 125Vdc, or 115/230VAC with an external power cube. Units are 19" rack mountable. Optical connectors can be SC, ST or FC.

Top


Technical Specifications

Data Rates
10/100 Mbps (auto-sensing)
Bandwidth Control None, 128K, 256K, 512K, 1M, 2M, 4M, 8M, 16M, 32M and 64M
Optical
Interface 100Base-Fx
Transmitter ELED, LASER
Receiver PIN Diode
Wavelength 1300nm Multimode
1300nm, 1550nm Single Mode
Fiber Optic Connectors ST, optional FC or SC
Loss Budget*
(1300nm, 1550nm)
Multimode (62.5/125µm): 15dB
Single Mode (9/125µm): 20dB
Interface Ethernet 100Base-Fx
Electrical
Ethernet Ports 6 RJ-45 Female
Interface Ethernet 10/100Base-T
Safety CSA
Emission FCC Class A
System
Bit Error Rate 1 in 10^9 or better
Visual Indicators
System Status Power, Status (8)
Port Status (Each Port) 10/100, Act, Link, Tx, Rx, Speed
Alarm
Dry Contact Normal OPEN
Power
Standard 12VDC @ 500mA
Optional 24VDC, -48VDC, 125VDC or 115/230VAC (with external power cube)
Temperature
Operating -10° to 50°C
High Temp (Optional) -20° to 70°C
Hardened (Optional) -40° to 80°C
Storage -40° to 90°C
Humidity 95% non-condensing
Physical (Rackmount Unit)
Height (3.53 cm) 1.4"
Width (48.26 cm) 19.0"
Depth (16.57 cm) 6.5"
Weight (544 gm) 1.2 lbs

Top


jump to fiber Tutorial

jump to related fiber equipment page
jump to  related fiber page
