WDM 10/100BaseT to Fiber Converter

3port 10/100Base-T Ethernet Fiber Optic Media Converter w/ Bandwidth Control

Bandwidth Control gives users the ability to control or limit bandwidth
Data rates for Bandwidth Control can be set at 32K increments (i.e. 32K,


Switching/Bridging Ethernet Fiber Media Converter w/ Rate Control


  • 3 Ports 10/100 Base-T
  • 1 Port 100FX; (MM/SM 1300/1550nm)
  • Rate Control (32Kbps to 100 Mbps, in 32K increments) and VLAN
  • Network Management (Web, SNMP, Telnet)
  • Remote Firmware Upgrade
  • Hardened Temperature Version Exceeds Pertinent Industry Specs (-40°C to 80°C)
  • One Fiber, Bi-Directional option
  • Huge Frames Supported (1916 bytes)
  • Configuration Save and Load
  • Power Monitoring
printable Data Sheets:
2 pages

TC3240

 click here to see
TC3240 manual



Applications

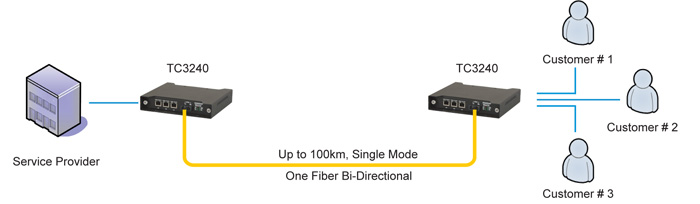

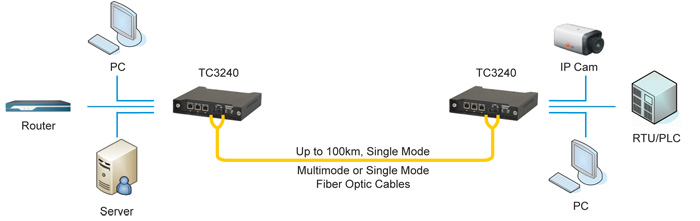

The TC3240 is frequently used by Data Service Providers to control the bandwidth they offer to customers. It is also used for its ability to transmit over long distances (100km or farther) without connecting to additional hardware, e.g. a Switch or a Router. The Hardened Temperature option enables it to be used in extreme environments.

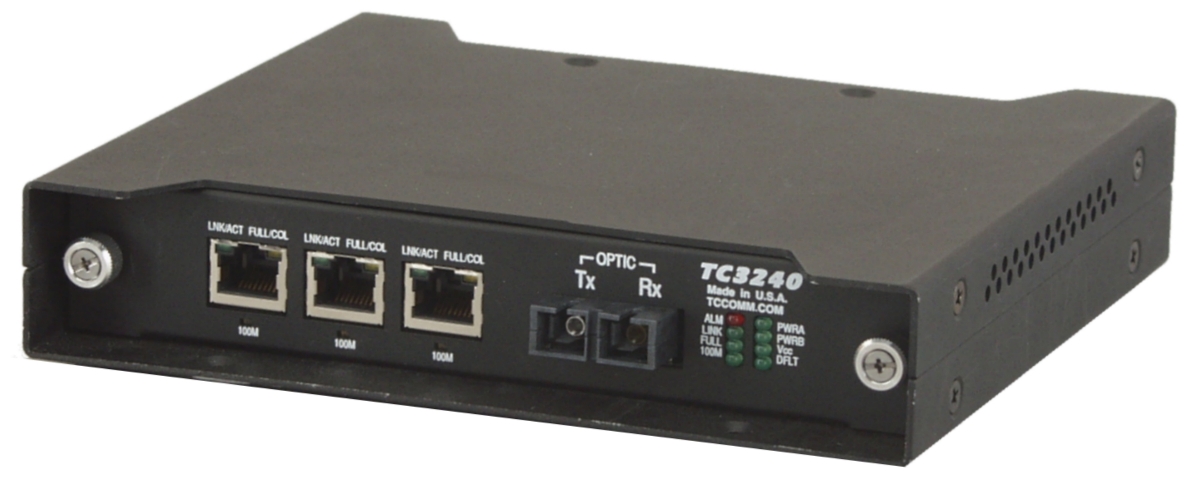

Featuring High Security, Long Distance capability and Rate Control, the new model TC3240 10/100M 4-port Switching/Bridging Fiber Optic Ethernet Media Converter converts or connects 10/100Base-TX (UTP) networks to 100Base-FX (Fiber Optic) networks.

The TC3240 includes a built-in switch that enables distances up to 100km without additional hardware (e.g. Switch or Router).  It can be managed through any Web Browser, SNMP, Telnet or Serial Console.  Configuration settings can be stored and ecovered to simplify network administration, and, firmware can be remotely uploaded.  VLAN and Network Time Protocol (NTP) are supported.

The TC3240 also addresses several important Security issues.  It allows up to four different IP address aliases, manageable privilege levels for users, and is password protected.  VLAN is also implemented to secure access to the TC3240.

Rate Control, especially important to data service providers, gives users the ability to control or limit bandwidth. Data rates for Rate Control can be set in 32kbps increments, up to 100 Mbps.  A “one fiber, bi-directional” version is available for maximizing fiber optic cable usage.

The TC3240 provides 10/100Mbps Auto-Negotiation and automatically adapts to full or half-duplex mode. Transparent to the network, it operates effectively even during high-demand traffic loads.  The “Huge Frame” feature enables handling of packets up to 1916 bytes.

An Industrial Hardened version is available for harsh environments (e.g. Process Control applications in Manufacturing, Utility, SCADA, Transportation, & Traffic Control). This version complies with most pertinent environmental and temperature specifications (-40°C to 80°C).  Standard temperature range is -10°C to 50°C. The optional high temperature version provides a range of -20°C to 70°C.

The TC3240 supports single mode distances up to 100 km (1550nm laser) and works with all types and sizes of fiber optic cable. Fiber optic connectors are ST, FC or SC. The UTP connector is RJ-45 Female.

Dry contact alarms are provided for connection to remote network management systems. A local loopback feature, eight LED indicators and an Uplink/Downlink slide switch are provided on the front panel to assist with installation and troubleshooting.

Standard power is 12VDC and includes built-in redundancy. Optional power sources include 24VDC, -48VDC, 125VDC or 115/230VAC with an with an external power cube. The TC3220S is the standalone/wall-mount unit. The TC3220R rack-mount version fits into the TCRM192 or TCRM196 19" rack-mount card cages.

Specifications

Data Rate
10/100 Mbps (Auto-Sensing)
Rate Control 32Kb increments, (32K, 64K, 96K... to 100M)
Optical
Interface 100Base-FX
Transmitter ELED, LASER*
Receiver PIN Diode
Wavelength 1300nm Multimode
1300nm, 1550nm Single Mode
Fiber Optic Connectors ST, FC or SC
Loss Budget*
(1300nm, 1550nm)
Multimode (62.5/125µm): 15dB
Single Mode (9/125µm): 20dB
Electrical
Interface 10/100Base-T Ethernet
Connector (UTP) RJ45 Female
System
Bit Error Rate 1 in 109 or better

Alarm
Dry Contact Normal OPEN
Visual Indicators
Power Status PWRA, PWRB, Vcc
UTP Signal Status Auto Neg. Detect, TP, 10M, 100M
Optic Signal Status FO, 10M, 100M
Power
Standard 12VDC @ <400 mA
Optional 24VDC, -48VDC, 125VDC, 115/230VAC (with external power cube)
Temperature
Operating -10° to 50°C
Hi-Temp (optional) -20° to 70°C
Extreme Temp (optional) -40° to 80°C
Storage -40° to 90°C
Humidity 95% non-condensing
Physical (Wall-mount Base Unit)
Height (3.53 cm) 1.39"
Width (18.13 cm) 7.14"
Depth (16.59 cm) 6.53"
Weight (544 gm) 1.2 lbs.
