Wireless Digital Cell Cellular Transceiver
for modems

Access data with an RJ-11 modem output. It's perfect for legacy equipment.
W
ireless Modem for RJ11 Devices to Transmit Data via Digital Cellular

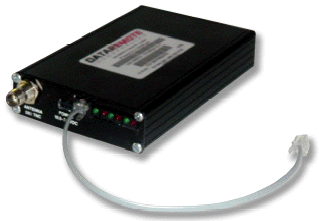

The CDS-9060T/R allows any meter or terminal with an RJ11 jack to send data over digital cellular – significantly reducing the costs of transmission, while eliminating the need for a costly upgrade. Simply plug a standard modem line into the CDS-9060T/R’s RJ11 port and to start taking advantage of the reliability and privacy offered by the rapidly expanding CDMA network.

Distinctive Features

  • Standard RJ11 interface

  • Complete network approvals
    (approved by all major carriers)

  • Distinguishes DTMF tones for IP routing

  • Easy trouble-shooting via configuration menu

  • Analog data/fax transmissions

  • Internal signal-strength meter

  • FCC and Canada certified RF

  • Easy set up




This rugged wireless data modem operates in CDMA dual mode, supporting both circuit switched and 1xRTT packet-switched services. The extensive coverage of the CDMA network means DataRemote’s CDS-9060T/R is the perfect solution for affordable, packet data transmission from remote areas for anywhere a fixed line is unavailable.


Standard Features


Typical Applications

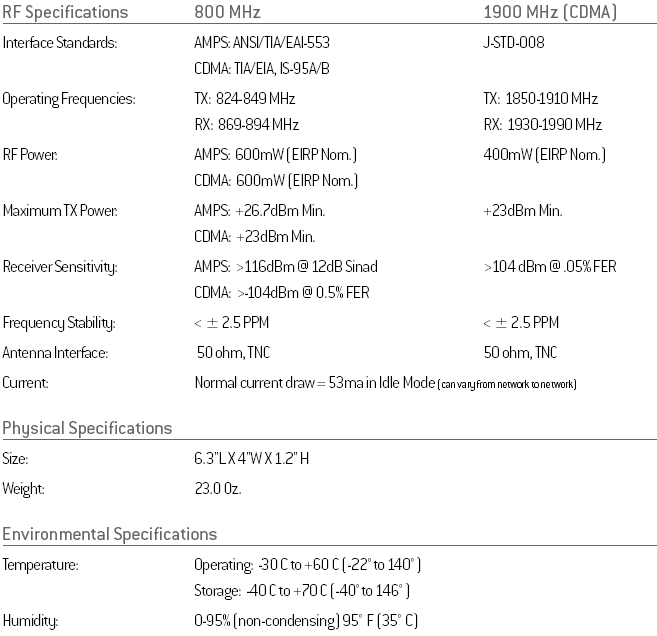

General Specifications




see PDF write up


DataRemote Cellular Modems

DataRemote manufactures CDMA digital cellular/ PCS and analog (AMPS) modems built for commercial and industrial environments. Cellular modem products deliver premium performance in North, Central and South America. Product warranty is one year, including materials and workmanship.



CELLULAR MODEMS

Product No.

Description

CDS-9020 CDMA Data Modem, RS232 and SMS capability, 800 and 1900MHz, NO Analog capability
CDS-9022 CDMA/Analog Tri-mode Modem, RS232, SMS, analog data capability, including handsfree voice, 800 & 1900 MHz
CDS-9030 Low Cost CDMA/PCS RS-232 Wireless Data Modem with AMPS analog add-on feature
CDS-9050 CDMA Data Modem, with GPS engine, 512 Kb memory (upgradable to 1Mb), dual DCE RS232 I/O ports, SMS, user configrable I/O control features for remote equipment, configurable internal data logging, 800 and 1900 MHz
CDS-9052 CDMA/Analog Tri-mode Modem, with GPS engine, handsfree voice, analog data capability, 512 Kb memory (upgradable to 1Mb), dual DCE RS232 I/O ports, SMS, user configrable I/O control features for remote equipment, configurable internal data logging, 800 and 1900 MHz
CDS-9060 CDMA2000 1xRTT Data Modem, with GPS engine, 512 Kb memory, dual DCE RS232 I/O ports, SMS, user configurable I/O control features for remote equipment, configurable internal data logging, 800 and 1900 MHz  Analog Modem Upgradeable (CDS-9060A)

Note: Power supplies, antennas and NEMA enclosures are not included with modems unless otherwise ordered. All DataRemote modems are supplied with a User Guide, test antenna, RS-232 interface cable and terminal software for initial setup and testing. Click here for approved alternative antennas.
