CELL ANTENNA DUAL BAND

  Cellular antennas for cell - cellular wireless data modems


CELL ANTENNA DUAL BAND  MAGNETIC MOUNT PORTABLE

CHOOSE FROM OUR SELECTION OF HIGH PERFORMANCE  ANTENNAS:


Model Height (in) Gain (dB)
CA04M  3.5 3
CA10M 10.5 4
CA12M 12 5
CA24M 24 7
CA40M 40 9
  • Increase Cell phone Range

  • Reduce Dropped Calls

  • Route Electromagnetic Radiation to outside

  • Portable. Can be used in any location!

  • 4 Different Top Performing Antennas to choose from!


CAMWM Multi Whip Cell Antenna Magnetic Mount
3/5/7/9dB Gain (10-18dBe)
4"/12"/24" High Antennas with Large 2.5" Magnetic Base

  • FLEXIBILITY OF A DIFFERENT ANTENNA IN DIFFERENT SITUATIONS
  • ALL 4 OF OUR BEST SELLING WHIPS
  • 2.5" large SINGLE magnetic base
  • SAVE $60 compared to buying all 4!
  • Easy to install

Comes with all of our masts, the 4", 12", 24" and 40" whip antennas to interchange when needed on the same magnetic base. With 3db to 9 dB of gain available , this  gives you flexibility to use the smaller antennas in the city and then change to the larger antennas when longer distance or interstate driving is needed. Comes with TNC and MiniUHF adapters to connect to the DA4000 and DA4000N amplifiers and to the Cellsocket and other cell appliances. Comes with 10' of RG174 cable with a Female FME for easy connection to all of our adapters. Electrically balanced for Tri Band performance for the Nextel,Cellular and the PCS bands.  Tri Mode Tri Band 800 MHZ and 1900 Mhz. Good for all cellular providers including Verizon, ATT, Nextel, Sprint, Voicestream, Cingular, Southern Link, Alltel, metroPCS etc.  For all TDMA, CDMA, iDEN, PCS, GSM systems.
(see other antenna connect options)

CA04M Cell Antenna Magnetic Mount  3dB  Gain (10 dBe)
Only 3.5" High with  1"  Diameter Magnet

This compact antenna offers performance greater than our competitors antennas that are longer in length.  Electrically balanced for Tri Band performance for the Nextel,Cellular and the PCS bands.   Strong magnetic with rubber shield keeps the antenna secure on a metal surface and resists winds up to 150 MPH! This antenna offers 3 dB of gain and more than 10 dB of effective gain compared to no antenna attached to your cell phone. Comes with 10' of RG174 cable with a Female FME for easy connection to all of our adapters.  Tri Mode Tri Band 800 MHZ and 1900 Mhz. Good for all cellular providers including Verizon, ATT, Nextel, Sprint, Voicestream, Cingular, Southern Link, Alltel, metroPCS etc.  For all TDMA, CDMA, iDEN, PCS, GSM systems.
(see other antenna connect options)

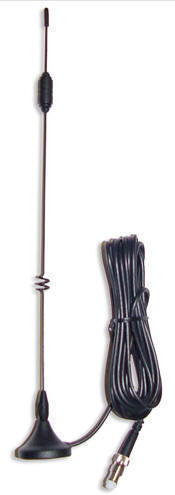

CA10M Cell Antenna "Mini Mag" Mount  4dB  Gain (9dBe)
Only 10.5" High with  3/4" Diameter Magnet and Thin cable

This compact antenna offers performance greater than our competitors antennas that are longer in length.  Electrically balanced for Tri Band performance for the Nextel,Cellular and the PCS bands. With a Minimagnet this lightwieght portable antenna makes a good choice to carry along in your briefcase or purse. We use a thin RG-174 cable that makes deployment on any metal surface easy an unobtrusive.  This antenna offers 4 dB of gain and more than 9dB of effective gain compared to no antenna attached to your cell phone. Comes with 8' of RG-174 cable with a Female FME for easy connection to all of our adapters.  Tri Mode Tri Band 800 MHZ and 1900 Mhz. Good for all cellular providers including Verizon, ATT, Nextel, Sprint, Voicestream, Cingular, Southern Link, Alltel, metroPCS etc.  For all TDMA, CDMA, iDEN, PCS, GSM systems.

(see other antenna connect options)

CA12M Cell Antenna Magnetic Mount 5dB Gain (12dBe)
 12" High with Large


Dual Band Magnetic Mount Portable Cellular Antenna 5dB Gain for 800 Mhz band and 3 dB for the  PCS/GSM  band.  Only 12" in total height w/ FME Female Connector supplied. Great for car use. Comes with 8' of RG174 cable. Requires Cell phone External antenna adapter to connect to your specific cell phone, Telular Base Station, Cellsocket or AirCard. Tri Mode Dual Band 800 MHZ and 1900 Mhz. Good for all cellular providers including Verizon, ATT, Nextel, Sprint, Voicestream, Cingular, Southern Link, Alltel, metroPCS etc.  For all TDMA, CDMA, iDEN, PCS, GSM systems.

(see other antenna connect options)


CA24M Cell Antenna Magnetic Mount 7dB Gain (14dBe)
 24" High with Large 2.5" Magnetic Base


Dual Band Magnetic Mount Portable Cellular Antenna 7dB Gain 24" w/Female FME Connector. A high gain magnetic mount antenna. Closed coil design minimizes wind resistance. Great for car use. Comes with 10' of RG174 cable. Requires Cell phone External antenna adapter to connect to your specific cell phone, Telular Base Station, Cellsocket or AirCard. Tri Mode Dual Band 800 MHZ and 1900 Mhz. Good for all cellular providers including Verizon, ATT, Nextel, Sprint, Voicestream, Cingular, Southern Link, Alltel, metroPCS etc.  For all TDMA, CDMA, iDEN, PCS, GSM systems.

(see other antenna connect options)

CA40M Cell Antenna Magnetic Mount 9dB Gain (18dBe)
 40" High with Large 2.5" Magnetic Base


OUR BEST PERFORMING LONG DISTANCE MAGNETIC MOUNT ANTENNA
Dual Band Magnetic Mount Portable Cellular Antenna 9dB Gain 40" w/ Female FME Connector. Our Maximum gain magnetic mount antenna. Closed coil design minimizes wind resistance. Great for car use. Comes with 10' of RG174 cable. Requires Cell phone External antenna adapter to connect to your specific cell phone, Telular Base Station, Cellsocket or AirCard. Tri Mode Dual Band 800 MHZ and 1900 Mhz. Good for all cellular providers including Verizon, ATT, Nextel, Sprint, Voicestream, Cingular, Southern Link, Alltel, metroPCS etc.  For all TDMA, CDMA, iDEN, PCS, GSM systems.

(see other antenna connect options)

FAQ:

Which Antenna should I use?

High Gain antennas are very directional toward the horizon. Our CA40M  antenna is are great for flat terrains and when the towers are more than 10 miles away.

The CA24M antenna works well with in countryside interstate highway travel allowing for modest gain and medium range towers.

Our CA4M, CA10M and CA12M antennas are great in most circumstances. They work well within cities and mountainous terrains. They are less directional with a wide range of coverage. They work well with any of our boosters.

Do I need to mount the antenna on a metal surface for it to work?

The magnetic mount is only there to hold the antenna in place. There is no metal contact between the antenna and the surface. However, the proximity of the metal adds to greater distance .



What Does Gain Have to do with anything?

Gain is the measurement of how well an antenna compares to a simple antenna form know as a dipole. It is measured in dB. For every 3 dB the performance of the antenna doubles. 3 dB is 2 times. 6 dB is 2x2 = 4 times. 9dB is 2 x 2 x 2 =8 times.  10 dB is exactly 10 times. The antenna itself does not really add any energy or increase the signal strength of the cell phone, but rather better utilizes what is already there.  But you shouldn't base your decision on choice of antenna on gain alone. That is because the higher the gain, the more directional the antenna becomes towards the horizontal. See WHICH ANTENNA SHOULD I USE for more information.

What is Effective Gain ( dBe)?

Effective Gain is the expected performance of the external antenna when compared to the antenna that comes with the cell phone.  A cell phone internal antenna has -7 dB of gain. That's right. It actually looses signal strength.  Adding and external antenna, you make up the loss of 7 dB and add the gain of the external  antenna.  That means that our CA04M 3 dB gain antenna has an effective gain of  7+3 = 10 dB effective. Our competitors like to try to show this value as the actual gain of the antenna to make you think that there antenna is better than ours. Don't believe them! They are really looking at effective gain which is not an industry standard. .
