Universal Rack Mount
Fiber Optic Card Cages

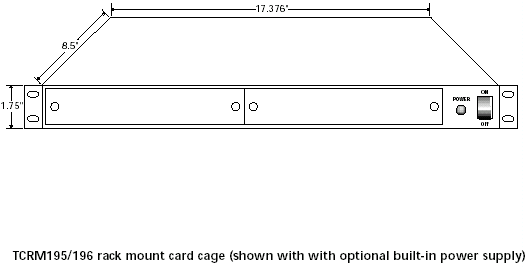

The TCRM195 and TCRM196 Universal Rack Mount Fiber Optic Card Cages hold up to two single multiplexer or modem-type cards, or one double-mux or double-modem type card. In general the TCRM195 is used for multiplexers and the TCRM196 for modems. Both can operate with one power supply or dual load-sharing power supplies (built-in or external). The AC power supply automatically adjusts for 90 to 264VAC input and 47 to 63 Hz operation. The DC power supply accepts -48VDC input. The AC and DC power supplies can be mixed in the same unit. The built-in power supply switch and its status LED are located on the front panel. Both rack assemblies are 19" wide by 1.75" high (1U). The TCRM195 is 8.5" deep and the TCRM196 is 5.25" deep.


  • 1U High (1.75") - TCRM195/196
  • 4U High (7") - TCRM191/192
  • Dual Power Capability with Automatic Switchover in the Event of Failure (currently available on TCRM191/192)
  • Universal Switching Power Supply Accepts 90 to 264VAC
    (47 to 63 Hz)
  • Optional 24VDC and -48VDC Power Supply
  • Overload & Short-Circuit Protection

  see   TCRM191-92.pdf     TCRM195-96.pdf


TC8800R (in
TCRM195 1U High Card Cage)


TC8800R/E Rackmount Cards
TCRM192 (Shown with TC1630R cards)

(Click on images to enlarge)




Universal Rack Mount Card Cage

1 U height (1.75")

Dual Power Capability (Future Rel.)

Universal Switching Power Supply

Accepts 90 to 264VAC (47 to 63 Hz)

Optional -48VDC Power Supply

Overload & Short-Circuit Protection


Description

The TCRM191/192 Universal Rack Mount Card Cages can hold up to 10 single multiplexer or modem type cards, or up to 5 double-mux or double-modem type cards. In general, the TCRM191 is used for multiplexers and the TCRM192 for modems.

The TCRM195/196 Universal Rack Mount Card Cages can hold up to 2 single multiplexer or modem type cards, or 1 double-mux or double-modem type cards. In general, the TCRM195 is used for multiplexers and the TCRM196 for modems.

The TCRM191/192 can operate with one power supply or dual load sharing power supplies. The AC power supply automatically adjusts for 90 to 264 VAC input and 47 to 63 Hz operation. The DC power supplies accepts -48VDC or 24VDC input. The AC and DC power supplies can be mixed in the same unit. The dual load-sharing power supplies feature  automatic switchover in the event of a power failure. The Power switch and its LED are located on the front panel. The chart below shows the dimensions and power supplies of each card cage:

Model Width Height Depth Power Supply
TCRM191 19 in.
(48.26 cm)
7 in. (4U)
(17.78 cm)
9 in.
(22.86 cm)
Single or Dual 115/240VAC, 24VDC, -48VDC
TCRM192 19 in.
(48.26 cm)
7 in. (4U)
(17.78 cm)
5.25 in.
(13.34 cm)
Single or Dual 115/240VAC, 24VDC, -48VDC
TCRM195 19 in.
(48.26 cm)
1.75 in. (1U)
(4.45 cm)
9 in.
(22.86 cm)
Single 115/240VAC, 24VDC, -48VDC
TCRM196 19 in.
(48.26 cm)
1.75 in. (1U)
(4.45 cm)
5.25 in.
(13.34 cm)
Single 115/240VAC, 24VDC, -48VDC
