TC Model TC1880

4/8 Channel RS-232 Fiber Optic Multiplexer
The TC1880 is compatible with all popular sizes and types of fiber optic cable.  It supports data rates up to 56 Kbps and is available single mode (1300/1550nm) or multimode (850/1300nm). Fiber optic connectors are ST or FC.  Electrical connectors are DB25 female.  Power is 12VDC or 115/230VAC with an external power cube.  An extreme temperature version (-20C to 70C), Model TC1880T, is also available.

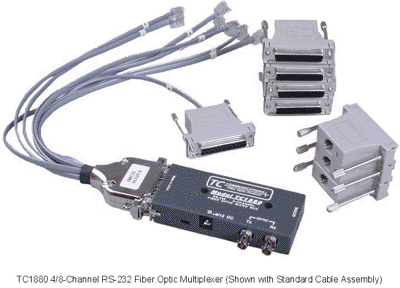

(Model TC1880)         Related Products: TC8116, TC8108

  • Multiplexes Async/Sync Channels Simultaneously
  • Data Rates up to 56 Kbps
  • Multimode and Single Mode (850/1300/1550nm)
  • Small Size (3/4" x 41/4" x 13/4")
  • Up to 8 Async Channels
  • Up to 4 Sync Channels (Ext. Clock)
  • Jitter Rate Less Than 8%
  • Extend Up to 8 Telephones with TC1900 RS-232 or Fiber Phone Extenders



Applications

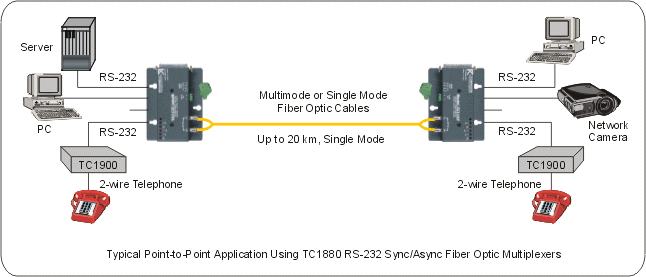

The TC1880 Micro Multiplexer provides a cost effective method for connecting large numbers of async or sync terminals, printers and status collecting devices. It is often used in harsh environments where EMI/RFI interference and lightning conditions may exist.  The TC1880 can also be used to extend up to eight telephone lines to remote locations with
Model TC1900 RS-232 or Fiber Phone Extenders.

see manual


Description

Packaged in a remarkably small pocket-sized unit, the TC1880 RS-232 Fiber Optic Multiplexer offers the lowest per-channel cost of any comparable fiber optic multiplexer currently available in today's marketplace. Using a fan-out cable adapter, the TC1880 can be configured for up to 8 Async channels, up to 4 sync channels or combinations of both.

Configurations can be easily changed in the field by replacing the fan-out adapter.  For example, a user could multiplex four channels of asynchronous data and two channels of synchronous data simultaneously over one duplex fiber optic cable.

The TC1880 is compatible with all popular sizes and types of fiber optic cable.  It supports data rates up to 56 Kbps and is available single mode (1300/1550nm) or multimode (850/1300nm).

Fiber optic connectors are ST or FC.  Electrical connectors are DB25 female.  Power is 12VDC or 115/230VAC with an external power cube.  An extreme temperature version (-20C to 70C), Model TC1880T, is also available.

TC1880 Configuration Chart

Configuration Async Channels Sync Channels
(ext. clock)
TC1881 8 0
TC1882 4 2
TC1883 2

3

TC1884 0 4
TC1885 4 (w/1 control) 0
TC1886 2 (w/1 control) 2

Top


see manual


Technical Specifications

Data Rates (per channel)
Async or Sync with External Clock up to 56 Kbps
Optical
Transmitter E-LED, E-LED
Receiver PIN Diode
Wavelength 850nm, 1300nm Multimode
1300nm, 1550nm Single Mode
Fiber Optic Connectors ST, FC or SC
Loss Budget*
(850nm, 1300nm, 1550nm)
Multimode (62.5/125m): 15dB
Single Mode (9/125m): 15dB
Electrical
Connector DB25 Female
Interface (DCE) RS-232
System
Bit Error Rate 1 in 109 or better
Visual Indicators
LED Active (Sync)
Power
Standard 12VDC @ 250mA
Optional 115/230VAC (with external power cube)
Temperature
Operating -10 to 50C
Hi-Temp (optional) -20 to 70C
Storage -40 to 90C
Humidity 95% non-condensing
Physical
Height (2.03 cm) 0.8"
Width (10.41 cm) 4.1"
Depth (4.32 cm) 1.7"
Weight (156 gm) 5 oz.
*Contact  factory for higher requirements



Top


jump to fiber Tutorial

jump to related fiber equipment page
jump to  related fiber page
