Rhino T1 Channel Bank

Rhino T1 Channel Banks are the most cost effective T1 channel banks on the market.


This Rhino T1 channel bank acts as a T1 mux, converting 24 digital channels to 24 analog channels. Our T1 channel bank comes with a 5 year warranty, and our new price is hundreds of dollars less than most refurbished channel banks.

The Rhino channel bank is much easier to install than any other channel bank on the market today. There is no programming or software to learn. With our new "Auto-Config" feature, you can just plug it in, and the channel bank is ready to go. If you are needing more than just a voice application, the Rhino Channel Bank now supports data, and is configurable channel by channel. It is the most flexible channel bank on the market.

The Rhino T1 channel bank uses the latest, fully digital embedded technology. This means higher reliability and lower cost. The Rhino provides as "standard" what other units can't provide OR charge extra for.

A warranty of more than a year is almost unheard of in the telecommunications industry. A warranty that goes beyond 2 years is even more scarce. A 5 year warranty of any kind is proof the unit is rock solid.

By supporting the most common start protocols (Immediate, Wink, Loop, Ground, DID), as well as either D4 or ESF and AMI or B8ZS, the Rhino channel bank can be installed in a wide variety of situations including dynamic data channels. "Auto Config" makes the unit truly "plug and play" - the only channel bank of it's kind!

Every system comes with a fractional V.35 data port (for free) that can be used for the IP router connection. If you have unused DS0 time slots you can use that band width for IP connectivity.

A Rhino channel banks feature a single CSU (for free) that is software controlled, software programmed and will self boot to the proper mode right out of the box.


RHINO T1 Channel Bank Specifications

  • Operating Environment: 0 C – 70 C 32 F – 166 F
  • Humidity: Non-condensing up to 95% relative humidity
  • Power Requirements: 110 VAC
  • Power Usage: Fuse Rating: 1A
  • T1 Requirements: Standard 4 wire T1 via an RJ48C jack
  • Start Protocols: Immediate, Loop, Ground, Wink, and DID
  • Framing protocols: D4 or ESF
  • Line Coding: AMI or B8ZS
  • Analog Output: 24 Loop start lines via 25 pair amphenol connector
  • Data Output: V.35 utilizing a DB25 connector
  • Physical size: 3.5” tall (2U), 17” wide and 8.5” deep
  • Weight: 12 lbs.
  • Mounting: 19” or 23” rack mountable. Unit can also be mounted on the wall.
  • Channel capacity: 24 POTS FXS
  • Caller ID capable

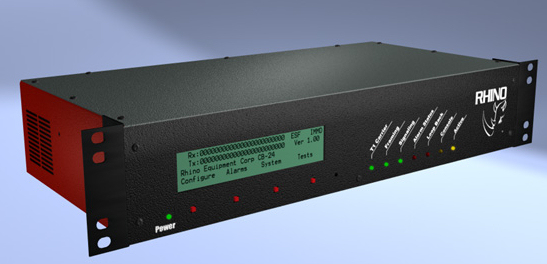

click on picture for larger view

see specs page       see manual PDF

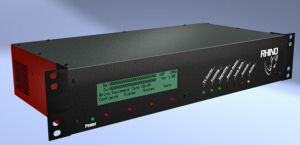

A LCD display is used during the installation process. Most problems that arise during an installation are the result of mismatched protocols between the channel bank and the carrier's T1 line. The display shows what is being sent in on the T1 and what is going out from the channel bank.

This T1 D4 channel bank T1 Channel Bank can operate on a D4 (SF) or ESF T1 line. The bank supports either SF or ESF with either AMI or B8ZS line coding. The start protocols supported are: Immediate Start, Wink Start, Loop Start, Ground Start and DID. (These are standard and are used by all T1 service providers.) On the analog side the Rhino presents 24 loop start lines (FXS).

The Rhino Channel Bank interfaces directly with most PBXs and almost all voice mail systems. Calling party disconnect is also supported by the Rhino.


Manufacturer: Adtran Carrier Access Carrier Access RHINO
Model: Total Access 750 Adit 600 Access Bank I 24FXS
Web Site Address: adtran.com carrieraccess.com carrieraccess.com channelbanks.com

Physical size: 2 U 2 U 1 U 2 U
Weight: 8 lbs. 11.8 lbs. 14.5 lbs. 12 lbs.
Mounting: 19" or 23" rack mount 19", 23" or wall 19", 23" or wall 19", 23", desktop or wall
Channel Capacity: 24 FXS 24 FXS 24 FXS 24 FXS
T1 Requirements: Standard 4 wire T1 Standard 4 wire T1 Standard 4 wire T1 Standard 4 wire T1
Start Protocols: Immediate, Loop, Immediate, Loop, Loop or Ground Immediate, Loop,
  Ground, and WINK Ground, and WINK Ground, and WINK Ground, WINK and 3 different DID
Framing Protocals: D4, ESF or TR08 D4 or ESF D4, ESF, TR08 or SLC-96 D4 or ESF

Line Coding: AMI or B8ZS AMI or B8ZS AMI or B8ZS AMI or B8ZS
Analog Output: FXO or FXS FXO or FXS 24 Loop start lines 24 Loop start lines
Display of signaling bits? No No No Yes
Data Output:   Dual V.35 cards V.34 and V.90 V.35, RS530,
        RS530A or RS449
Method of configuration: PC, serial port or modem PC, serial port or modem Dip switches Automatic Plug and Play T1 configuration
Caller ID capable:   Yes   Yes
Power Requirements: 130VAC max. 115VAC (-)48 VDC 110VAC
Power Usage:   3.5A 1A input 1A
Operating Environment: (-)40C to 70C 32F-104F/0C-40C 32F-122F/0C-50C 32F-166F/0C-70C
Humidity: Non-cond. up to 95% Non-cond. up to 95% Non-cond. up to 95% Non-cond. up to 95%
Manufacturers Warranty: 10 year limited warranty 10 year limited warranty 5 year warranty 5 year limited warranty

List Price: $2,256 $4,375 $2,375 $1,495

Every Rhino channel bank will configure itself to the T1 when plugged in and powered up. Also standard with each Rhino Channel bank is a 4 line by 40-character LCD display. This display in conjunction with the four menu buttons can be used to manually configure your channel bank if your installation calls for a more specific needs. I

Every system comes with a fractional V.35 data port
(for free) that can be used for the IP router connection. If you have unused DS0 time slots you can use that band width for IP connectivity.

A Rhino channel banks feature a single CSU (for free) that is software controlled, software programmed and will self boot to the proper mode right out of the box.

Now, with our new modular channel bank, you can custom build a Rhino channel bank to your exact specifications. Don’t need a full 24 line channel bank? No problem. Build your channel bank in four channel increments. Need to combine FXS and FXO lines into one channel bank? Again, not a problem. You can mix and match FXS and FXO cards also in four line increments into one Rhino chassis see specs page for configurations.


see specs page

see manual PDF



see other T1 Channel Banks
