RS-422 RS-449 Sync Fiber Modem

RS422 RS449 Synchronous fiber modem
Multi-mode or Single-mode up to 2.048Mbps

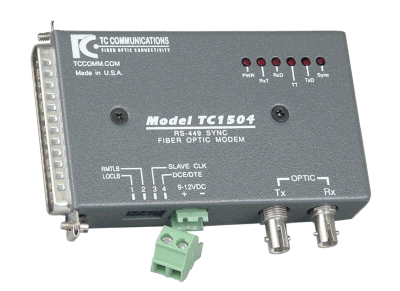

RS-422/RS-449 Sync Fiber Optic Modem - - Model TC1504



  • RS422 - Rs449 Sync Data Rates Up to 2.048 Mbps
  • Distances up to 20km
  • Multimode or Single Mode (850/1300/1500nm)
  • DTE/DCE Selectable
  • Six Diagnostic LEDs
  • Slave Clock
  • Local & Remote Loopback Functions
  • High Temperature (-20C to 70C) Version Optional



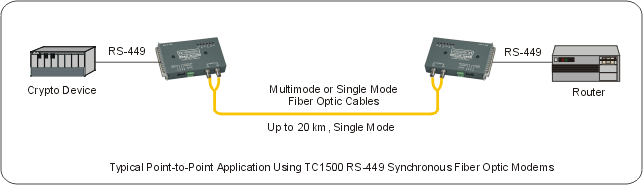

Applications

The TC1504 is typically used to link high speed synchronous data devices. It is frequently used in harsh environments because of its fiber optic benefits. This makes it is an efficient, low cost solution to electrical/radio frequency interference, ground loops, and lightning problems.



A compact and reliable, the TC1504 Fiber Optic Modem links synchronous data communication equipment requiring RS-422/RS-449 interfaces. It supports synchronous data rates up to 2.048 Mbps* with an external clock.

Transparent to the data, the TC1504 combines external clocking and data into an optical composite signal for transmission between local and remote units. It is DCE/DTE switchable.

Diagnostics include local and remote Loopback and visual indicators for power, Receiving Timing, Receive Data, Transmit Timing, Transmit Data, and Optic Sync. DIP switches are provided for the Local and Remote Loopback functions, Slave Clock, and DCE/DTE configuration.

The TC1504 will work with all types and sizes of multimode (850nm/1300nm) or single mode  (1300/1500nm) fiber optic cable. Fiber optic connectors are ST or FC. The electrical connector is a male DB37. Power is 9 to 12VDC or 115/230VAC with an external power cube. An extreme temperature version (-20C to 70C), Model TC1504T, is also available.



Data Rates
Sync DC (0Hz) up to 2.048 Mbps
Optical
Transmitter LED, ELED
Receiver PIN Diode
Wavelength 850nm, 1300nm Multimode
1300nm, 1550nm Single Mode
Fiber Optic Connectors ST or FC
Loss Budget*
(850nm, 1300nm,
1550nm)
Multimode (62.5/125m): 15dB
Single Mode (9/125m): 15dB

Electrical
Interface DCE / DTE Switchable
RS-422, RS-449
Connector DB37 Male
System
Bit Error Rate 1 in 109 or better

* Contact factory for higher requirements
Visual Indicators
LED, PWR, RxT, RxD, TT, TxD, Sync
Power
Standard 12VDC @ 250mA
Optional 115/230VAC
(with external power cube)
Temperature
Operating -10 to 50C
Hi-Temp (optional) -20 to 70C
Storage -40 to 90C
Humidity 95% non-condensing
Physical
Height (2.24 cm) 0.88"
Width (10.05 cm) 3.96"
Depth (4.4 cm) 1.73"
Weight (121 gm) 5.5 oz.




see other Fiber units by TCCOMM
