Multi-Drop / Drop and Insert
Fiber Optic Modem

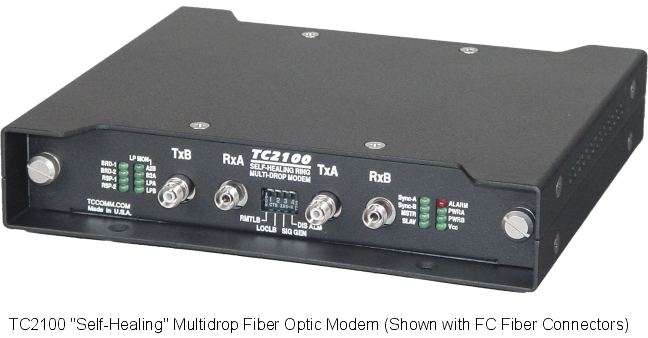

TC2100 Multi-Drop / Drop and Insert fiber modem
can be configured in Ring or Self-Healing Ring topologies.




"Self-Healing Ring" Multi-drop Fiber Optic Modem

TC2100


  • Async Data Rates to 38.4 Kbps

  • Single Ring or Self-Healing Ring

  • Sophisticated Tx/Rx Upstream, Downstream Fault Detection

  • Hardened Temperature (-40C to 80C) Optional, Exceeds NEMA & Caltrans Traffic Control Specs

  • Protocol Transparent: ModBus, DNP3, Telegyr, etc...

  • RS-232, RS-422 or RS-485

  • Local and Remote Loopback Tests

  • Test Signal Generator & Loop Monitor

  • Anti-Streaming (Anti-Jabber)

  • Local Dry Contact Alarm Relay

  • Multimode & Single Mode (850/1300/1550nm)





(Click on image to enlarge)



    "The TC2100s' Self-Healing function worked so well that several days went by before we realized that the fiber cable had been severed in one of the rings."
- Springfield Utility Board, OREGON

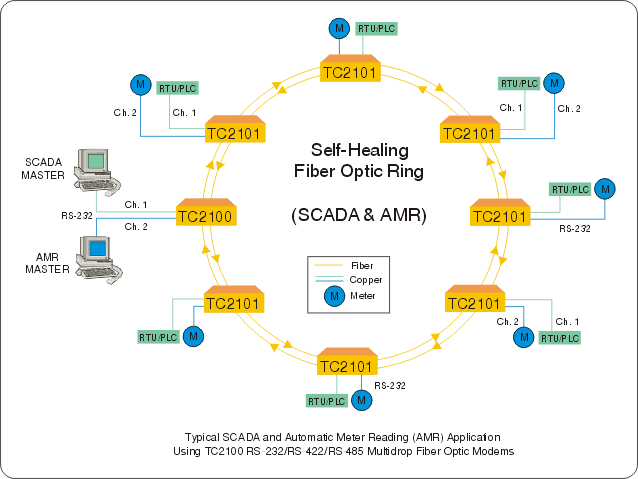

Renowned for its high reliability, the TC2100 Multi-Drop Modem is ideal for Ring or Self-Healing Ring communication links in SCADA, Traffic Control, Industrial Process Control and Security Networks.  It is frequently used to interconnect Remote Terminal Units (RTUs) or Programmable Logic Controllers (PLCs) in Utility substation SCADA Networks.

The TC2100 Multi-Drop Fiber Optic Modem provides maximum reliability for linking monitoring devices (typically RTUs or PLCs) to a Host Controller or CPU.  It is available "substation hardened" and is transparent to data or communications protocols.

The TC2100 can be configured in Ring or Self-Healing Ring topologies.  The Self-Healing Ring scheme is sophisticated, i.e. it detects upstream and downstream failures on both Tx and Rx, and automatically re-routes any cable or equipment failure.  Multiple master units for maximum reliability are optional. It supports asynchronous data rates up to 38.4 Kbps.  Electrical interfaces are RS-232, RS-422 or RS-485.  The RS-485 electrical port can be multi-dropped.  A special version, Model TC2100X, is available for extreme temperature (-40C to 80C) applications.

Each TC2100 unit comes standard with two pairs of fiber interfaces and either 2-Channel RS-232 or 1-Channel RS-422/RS-485 interfaces.  The second channel on the RS-232 interface can be used for data, RTS/CTS handshaking signals or as a telephone extension with the Model TC1900 "Quick-Talk" Phone Extenders.

Local and remote Loopback is standard.  Sixteen diagnostic LEDs are provided.  Dry contact alarms can be connected to RTUs/PLCs to indicate specifically where a fault has occurred.  A test signal generator for verifying link integrity is provided to aid installation and troubleshooting.  "Anti-streaming" capability is standard.

The TC2100 is compatible with all popular types and sizes of fiber optic cable and is available multimode (850/1300nm) or single mode (1300/1550nm).  Fiber optic connectors are ST or FC.  Electrical connectors are DB25 female.  Power is 12VDC; optional 24VDC, -48VDC or 115/230VAC with an external power cube.

Note: Model TC2100 is the Master unit; TC2101 is the Slave unit.


Specifications

Data Rates

Async RS-232, RS-422, RS-485

Up to 38.4 Kbps

Optical

Transmitter

ELED

Receiver

PIN Diode

Wavelength

1300nm Multimode
1300nm, 1550nm Single Mode

Fiber Optic Connectors

ST or FC

Loss Budget*
(850nm, 1300nm, 1550nm)

Multimode (62.5/125m): 15dB
Single Mode (9/125m): 15dB

Electrical

Connector

DB25 Female

Interface

(DCE or DTE) RS-232, RS-422, or RS-485 (2 or 4 wire)

System

Bit Error Rate

1 in 10^9 or better

Diagnostic Functions

Local and Remote Loopback, Signal Generator, Disable Alarm, Loop Monitor




Visual Indicators

System Status

PWRA,  PWRB, Vcc, ALARM

Optical Signal Status

RxA, RxB, Sync-A, Sync-B
TC2100 (LPA, LPB, TXA, TXB) TC2101 (LPA, LPB, A2B, B2A)

Electrical Signal Status

BRD-1, BRD-2, RSP-1,  RSP-2

Alarm

Dry Contact

Normal OPEN

Power

Standard

12VDC @ 500mA

Optional

24VDC, -48VDC, or 115/230VAC (with external power cube)

Temperature

Operating

-10 to 50C

High Temp (Optional)

-20 to 70C

Extreme Temp (Optional)

-40 to 80C

Storage

-40 to 90C

Humidity

95% non-condensing

Physical (Standalone/Wallmount Unit)  (Details)

Height

(3.53 cm) 1.39"

Width

(18.13 cm) 7.14"

Depth

(16.59 cm) 6.53"

Weight

(544 gm) 1.2 lbs
