8-Port Industrial DC DIN
Base-T Ethernet Switch

DIN Rail - DC Power Unmanaged 8-Port Industrial Rated Ethernet Switch

ANS-208 - 9 to 30 VDC powered covers 12VDC, 24VDC,  temp and  Industrial rated
10/100baseT Ethernet switch and also available in 110 and 220 VAC power


Features:    for the ANS-208

  • Automatic MDI / MDI-X crossover for plug-and-play

  • Each port supports both 10/100 Mbps speed auto negotiation

  • Store-and-forward architecture

  • Full duplex IEEE 802.3x and half duplex backpressure flow control

  • 2.0 Gbps high performance memory bandwidth.

  • Supports +10 ~ +30V DC voltage and 115/220VAC

  • NOW in 12 to 48VDC option ANS-208AG

  • Supports operating temperatures from 20 ~ +75C

  • DIN rail mount for industrial usage

see manual PDF

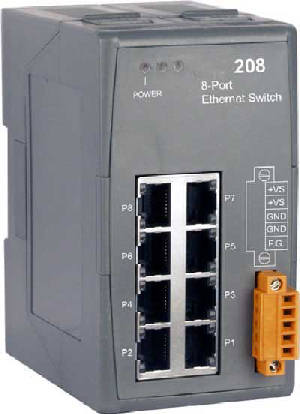

click of larger picture
see specs page


The ANS-208 has 8 Ethernet Switching ports that support 10/100Base-T, with a 10/100M auto-negotiation feature and auto MDI/MDIX function. It can connect 8 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections.

 The flow control mechanism is also negotiated. There is link/data rate LEDs for each port to aid trouble-shooting. Port connectors are shielded RJ-45.


ANS-208 Features:

 Specifications:
  Compatibility:IEEE 802.3, IEEE802.3u, IEEE802.3x
  Interface: 10/100 Base-T
  Port: 10/100 Mbps x 8 (Shielded RJ-45 Jack)
  Provides LEDs for network and power monitoring
  ESD Protection:
    8KV Contact Discharge
    15KV Air-Gap Discharge
  Cables:
    10 Base-T (Cat.3, 4,5 UTP cable; 100m Max.)
    100 Base-T (Cat.5 UTP cable; 100m Max.)
  Environment:
    Operating temperature:  20 ~ +75C
    Storage Temperature: 30 ~ +85C
    Relative Humidity: 10% to 90% non-condensing
  Dimensions: 64 mm or 2.5" x 114 or 5" x 107 mm or 4.5" (W x H x D)
 Power requirements: 10 to 30V DC (Removable Terminal Block)
   (115VAC power supply part # is PWR-24/110 24v / 0.1 AMP / 220VAC also available)
 Low power consumption: 0.12A@24Vdc; +/- 5%, arrowed.


see specs page


AC power options

24V/1A power supply (DIN-Rail mounting)

ADN-KA52F
24V/1.7A power supply

DP-640
24V/0.1 AMP


PWR-24 / 110
