Radio Frequency (RF) Modems and Transceivers

The Telenetics PE2.4RF is a low power, point-to-point radio transceiver module designed for transmitting and receiving data over distances up to 1,000 feet. By operating at low frequency (49MHz) with multi-channel autoscanning, the PE2.4RF provides excellent penetration through buildings, trees and other obstacles, and guarantees highly reliable data transmission.

 The PE2.4RF module can be integrated into original equipment manufacturers (OEM) products (eg; controllers, RTUs, meters, etc.), or packaged in the Telenetics "MIU" standalone case for external mounting. In the "MIU" case, the PE2.4RF can be combined with a Telenetics dial-up or leased line modem module to produce an RF modem.

Data Rate: 2400bps
Range: 1,000 feet
Operating Frequency: 49MHz
Operating Channels: 10 (Auto Selected)
Communications Mode: Half Duplex
Data Interface: RS232
RTS Control / CTS Delay: 5ms
Power Requirements: 5.5 - 9VDC
100mA ~ Transmitting
10mA ~ Idle / Receiving
Antenna: TNC Connector for User-Supplied Antenna



AC/DC POWERED SUBSTATION HARDENED RF

Transceivers/ Modems

The AirWave is a low frequency (unlicensed band), RF transceiver, suitable for transmitting data at 9600bps over short distances. Its high penetration capabilities make the AirWave suitable for point-to point and multipoint applications within campuses, substations and industrial facilities.

  • 9600bps up to 1,000 feet
  • Up to 1 mile over licensed bands
    Half Duplex
  • High Penetration Capability
  • Multichannel Autoscanning
  • Point-to-Point or Multipoint
  • Integral V.32bis Modem if Required
  • Extended Temperature Capabilities
  • Wide Range of Operating Voltages



The Telenetics AirWave. Model PE9.6AW is a low power, radio transceiver module designed for
transmitting and receiving data over distances up to 1,000 feet on low frequency, unlicensed bands. By
operating at low frequency with multi-channel autoscanning,
the PE9.6AW provides excellent penetration through buildings, trees and other obstacles, and guarantees highly reliable data transmission.
If operated over VHF licensed
frequencies, the range of the
PE9.6AW is increased to 1 mile.

The PE9.6AW module is powered
from 5.5 - 9VDC and can be
integrated into original equipment
manufacturers (OEM) products
(eg; controllers, RTUs, meters, etc.).

The MIU9.6AW is a PE9.6AW
module installed in the Telenetics
"MILI" standalone case for external mounting. In the MILI case, the PE9.6AW can be combined with a Telenetics dialup or leased line modem module

to produce a remote RF Modem.
Other options include a fiber optic or RS485 interface: See the Telenetics Pony Express Modem Module
brochure for complete details.

The MIU9.6AW is surge
protected,can be powered from a
wide range of AC or DC voltages
and will operate in temperatures
from -40 to 850C.

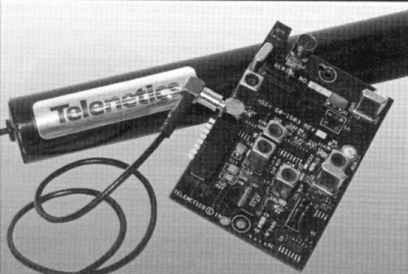

Both the PE9.6AW module and the MIU9.6AW standalone unit are supplied with a compact, omni-directional antenna.

I

Operating Frequency (MHz)

Range: Point-to-Point (feet)

Range: Line of Sight (feet)

Data Rate over above distances (bps)

Operating Mode

Serial Data Interface

RTS / CTS Delay

Operating Voltage

Current Drain (idle)

Current Drain (Transmitting)

RF Bandwidth

Frequency Channels

Transmit Power

Receive Sensitivity

Dimensions (inches)

Weight

Operating Temperature

Operating Humidity

Unlicensed

40.66

500

1,000

9600

Half Duplex

RS232 or TTL

5msec

5.5 - 9VDC

5mA

30mA

6kHz

4

1250uWm

-1 19dBm

2.13 x 3.38

5 ounces

-40 to 85*C

0 to 95% non-condensing

Licensed VHIF

120-191

2,500

5,000

9600

Half Duplex

RS232 or TTL

5msec

5.5 - 9VDC

5mA

180mA

6kHz

up to 8

0.5 watt

-1 16dBm

2.13 x 3.38

5 ounces

-40 to 85'C

0 to 95% non-condensing



Antenna

Description

Dimension

Connector
Custom designed, base loaded, omnidirectional antenna in a sealed, watertight, non-metallic enclosure. 10.5 inches long x 1 inch diameter housing with 18 inch flexible lead
SMIB





Specifications

Operating Voltage

Surge Protection

Operating Temperature

Operating Humidity

Serial Data Connector (RS232)

Dimensions and Weight

MIU9.6AW

9-36VDC, 48 - 220VAC/DC

8W

-40 to 85*C

0 to 95% non-condensing

DB9

5.38 x 4 x 1.38 inches, 1.0 lb

MIU/PowerPort9.6AW

5VDC±5%, 7-16VAC, 8-24VDC

8W

-40 to 850C

0 to 95% non-condensing

DB25

5.38 x 4 x 1.38 inches, 1.0 lb



Instead of an RS232 interface, the MIU9.6AW can be provided with an internal V32bis dial modem, V.32bis leased line modem, fiber optic line driver or RS232/485 converter. See the Telenetics Pony Express Modem Module data sheet for more
information.

RS232 only
