Cell - Cellular CDMA Wireless Terminal

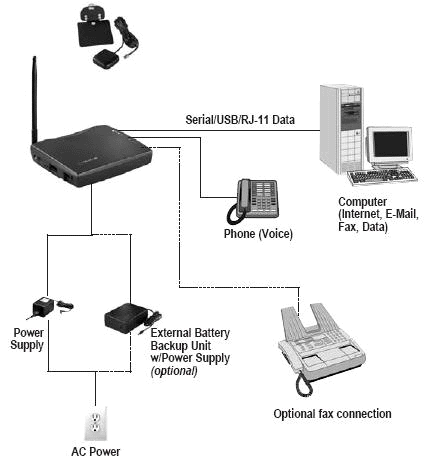

Fixed Cell communications (the SX5T-500C and SX5T-505C) are latest solutions for CDMA Cellular wireless network. Using a CDMA cell-cellular network, it provides exceptional voice quality, analog fax, 1X packet data, circuit-switched data, and PC fax. The SX5T can be utilized in a number of different applications including wireline replacement, portable dial tone, least cost routing, and telemetry. The device can provide access to the Internet and email at rates as high as 144 Kbps (network-dependent).


• 1X packet data* (requires Telular serial or USB data cable)
• Circuit switched digital computer fax and data via RJ-11 phone
   cable (V.8, V.22, V.22bis, V.32, V.32 TCM, V.32bis TCM)*
• Group 3 analog fax (V.17, V.21, V.27ter, V.29)*
• Compatible with popular supplementary services including
   caller ID, call waiting, 3-way calling, and call forwarding *
• Automatic end-of-dialing (no SEND key)
• Supports up to five phones (5 REN)
• Easy set-up using DTMF telephone or PC
• Simple desktop or wall-mount installation
• 8k EVRC and 13k QCELP vocoder support
• Hotline
• Call restrictions (SX5T-500C only)


The SX5T is available in 3 different models:






Specifications

Air Interface Standard
• TIA/EIA/IS-2000A
Transmit Power
• 200 mW (23dBm)
Frequency Ranges

Transmit
                          Receive
• CDMA800           824-849 MHz                   869-894 MHz
• PCS (CDMA)     1900 1850-1910 MHz     1930-1990 MHz
Dimensions and Weight
• Metric (cm) 18.2 W x 5.1 H x 21.1 L
• U.S. (inches) 7.1 W x 2.0 H x 8.3 L
• 0.57 kg. (1.3 lb.)
Environment
• Operating temperature range: -10°C to + 50°C
• Storage temperature range: -40°C to + 60°C
• Humidity: 5% to 95% (non-condensing)
Intelligent RJ-11 Interface
• Ringer equivalence number (REN) 5.0
• Dynamic echo cancellation
• PSTN Emulation
LED Indicators
• Power/Battery status
• Signal status
• Message status
• ON/OFF hook status
Connectors
• Two RJ-11 interface jacks for telephone, Group 3 analog fax, or analog data
• Data port for 1X packet data or circuit-switched digital PC fax/data (optional data cable required)
• TNC antenna connector (50 ohms)
• SMAconnector for GPS antenna (SX5T-505C only)
• DC power input jack
Antenna
• 2 dBi dipole antenna included
• Optional higher gain antennas
• Optional window mount patch panel GPS antenna (SX5T-505C only)
AC-to-DC Switching Power Supply (Included)
• Voltage: 110 - 230 VAC
• Frequency: 50/60 Hz
• Plug options: U.S., U.K., Euro., Australia
Emergency Battery Backup (Optional)
• 4 AA batteries provide up to 1 hour talk time and up to 3.5 hours of standby (Batteries Not Included) External Battery Backup (Optional)
• Provides up to 3.5 hours talk time and up to 15 hours standby time Approvals
• FCC ID: MTFCDMAFWT2004
• CDG-2 approved with Lucent, Motorola, and Nortel
• Industry Canada: 2175A-2004
