AEDS-205 Industrial Ethernet Switch

AEDS-205 Ethernet Device Switch is an industrial 5-port Ethernet switch that supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports.


AEDS-205 a Industrial 5-Port Unmanaged Ethernet Switch with DC power

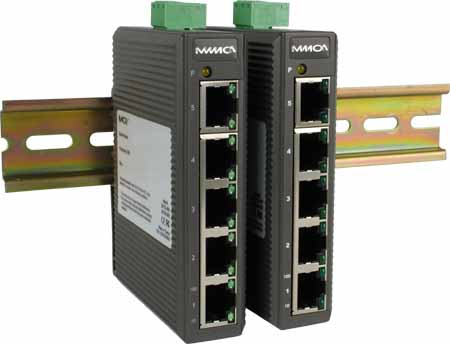

View Larger Picture


Power inputs: 12 to 48 VDC; 18 to 30 VAC
5-Port 10/100BASE-T(X) (RJ45)
-10 to 60°C operating temperature


Introduction

AEDS-205 EtherDevice™ Switch is an entry-level industrial 5-port Ethernet switch that supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports.

With AEDS-205 EtherDevice™ Switch, you can choose either a 12V to 48V DC power input, or 18V to 30V AC power input. The AC-24V power input is designed especially for applications in the building automation field where the source of power input is often restricted. AEDS-205 EtherDevice™ Switch is a low-cost, versatile solution that can be used for any industrial application.

AEDS-205 EtherDevice™ Switch can operate in temperatures of -10 to 60°C, making it rugged enough for any harsh, industrial environment. EDS-205 can be easily installed with both DIN-Rail mounting and distribution boxes. The high-intensity hardware design with IP30 protection and LED indicators make AEDS-205 EtherDevice™ Switch an easy yet reliable Ethernet switch.

Click More info below to view a schematic of EDS-205.


Features

High Performance Network Switching Technology
    5-port 10/100BaseT(X) (RJ45)
    Supports IEEE 802.3/802.3u/802.3x
    Store and Forward switching process type, 1024 address entries
    10/100M, Full/Half-Duplex, MDI/MDIX auto-sensing
    Broadcast Storm Protection
Industrial Design
    -10 to 60°C operating temperature
    Casing designed with IP 30 protection
    Versatile power inputs: 12 to 48 VDC, and 18 to 30 VAC (47 to 63 Hz)
    DIN-Rail mounting ability



Specifications
Technology
Flow Control
IEEE802.3x flow control, back pressure flow control
Standards
IEEE802.3, 802.3u, 802.3x
Processing Type
Store and Forward, with IEEE802.3x full duplex, non-blocking flow control
Address Table Size
1K uni-cast addresses

Interface
RJ45 Ports
10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators
Power, 10/100M

Power
Input Voltage
12 to 48 VDC,
18 to 30 VAC, at 47 to 63 Hz
Input Current
12 to 48 VDC, 5W
18 to 30 VAC, 5 VA, 47 to 63 Hz
Connection
Removable 3-contact Terminal Block
Overload Current Protection
1.1A

Mechanical
Casing
IP30 protection, plastic case
Dimensions
25 x 109 x 88 mm (W x H x D)
Weight
135 g
Installation
DIN-Rail

Environmental
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature
-40 to 70°C (-40 to 158°F)
Ambient Relative Humidity
5 to 95% (non-condensing)

Regulatory Approvals
MTBF
320,000 hrs
Safety
UL 508 (Pending)
EMI
FCC Part 15, CISPR (EN55022) class A
EMS
EN61000-4-2 (ESD)
EN61000-4-3 (RS)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
EN61000-4-6 (CS)
Shock
IEC 60068-2-27
Free Fall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Warranty
5 years


 AEDS-205
Industrial Ethernet Switch with 5 10/100BaseT(X) ports, Operating Temperature of -10 to 60°C

Optional Accessories
 ADR-4524
45W/2A DIN-Rail 24 VDC Power Supply with universal 85 to 264 VAC input
 ADR-75-24
75W/3.2A DIN-Rail 24 VDC Power Supply with universal 85 to 264 VAC input
 ADR-120-24
120W/5A DIN-Rail 24 VDC Power Supply with 88 to 132 VAC/176 to 264 VAC input by switch
