T1 Fiber Modem - IFS D1200

IFS D1200 T1 Fiber Modem

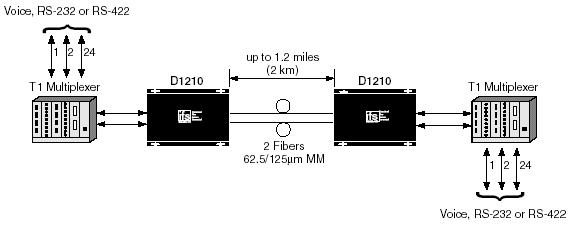

The D1200 T1 Fiber Modem series data transceivers provides point-to-point transmission of simplex or duplex T1, E1 (CCITT) data signals over two optical fibers.

Fiber T1 modem

T1/E1 (CCITT) Point-to-Point Fiber Transceivers

E1/T1 Multiplexed Telephony Systems
Emergency Phone Stations
Computer/Data Equipment
ITS Traffic Signalization Networks

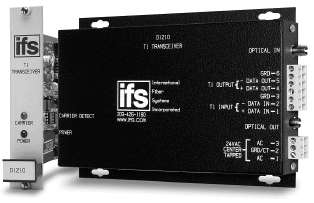

The IFS D1200 series T1 fiber modem data transceivers provides point-to-point transmission of simplex or duplex T1, E1 (CCITT) data signals over two optical fibers. Models within this series are available for use with multimode or singlemode optical fiber. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. Each transceiver incorporates power, carrier detect and transmit/receive data status indicating LED’s for monitoring proper system operation. The modules are available in either stand-alone or rack mount versions.

Supports T1, E1 (CCITT) Data
Tested and Certified by an Independent Testing Laboratory for Full Compliance with the Environmental Requirements (Ambient Operating Temperature, Mechanical Shock, Vibration, Humidity with Condensation, High-Line/Low-Line Voltage Conditions and Transient Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
No In-field Electrical or Optical Adjustments Required
Automatic Re-settable Solid-State Current Limiters
Distances up to 46 Miles (74 km)
Transparent to AMI and Zero Code Suppression Encoding Schemes
Point-to-Point Network Architecture
Hot-Swappable Rack Modules
Power, Carrier Detect, Transmit and Receive Data Status LED Indicators
Data rates up to 2.048 Mbps
Comprehensive Lifetime Warranty

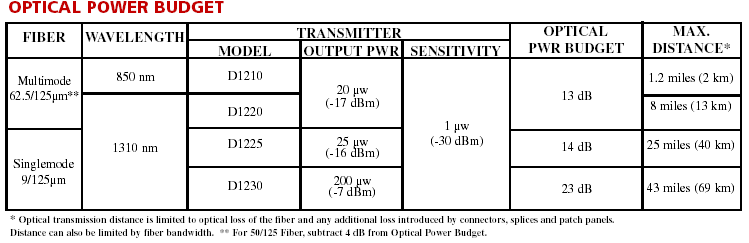

	PART		FIBERS	OPTICAL	MAX.
	NUMBER	DESCRIPTION	REQUIRED	PWR BUDGET	DISTANCE*

	D1210	T1/E1 Compatible Data Link, LED (850 nm)	2	13 dB	1.2 miles (2 km)
MULTIMODE
62.5/125µm**
	D1220	T1/E1 Compatible Data Link, LED (1310 nm)	2	13 dB	8 miles (13 km)


	D1225	T1/E1 Compatible Data Link, LED (1310 nm)	2	14 dB	25 miles (40 km)
SINGLEMODE
9/125µm
	D1230	T1/E1 Compatible Data Link, Laser (1310 nm)	2	23 dB	46 miles (74 km)

ACCESSORIES	PS-24ACCT 24 VAC C.T. Transformer (Included)
	Add ‘-R3’ to Model Number for R3 Rack Mount (Requires R3 Rack purchased separately)
OPTIONS	Add ‘-SC’to Model Number for SC Optical Connector (For Single Mode Equipment Only)
	Add ‘-C’for Conformally Coated Printed Circuit Boards (Extra charge,		consult factory)

* Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. For 50/125 Fiber, subtract 4 dB from Optical Power Budget.**

SPECIFICATIONS

DATA
Data Interface:	T1, E1 (CCITT)
Data Rate:	DC to 2.048 Mbps. Transparent to
	zero suppression code
Impedance
T1:	100 ohms (twisted pair)
E1:	120 ohms (twisted pair)
Operating Mode:	Simplex or Full Duplex

WAVELENGTH
D1210:	850 nm
D1220:	1310 nm, Multimode
D1225, D1230:	1310 nm, Singlemode

NUMBER OF FIBERS	2

CONNECTORS
Optical:	ST
Data and Power:	Terminal Plug with screw clamps

ELECTRICAL & MECHANICAL
Power:
Stand-alone:	24AC CT, 250 mA
Rack:	From Rack
Number of Rack Slots:	1
Current Protection:	Automatic Resettable Solid-State Current
	Limiters
Circuit Board:	Meets IPC Standard
Size (in./ cm.) (LxWxH):
Surface Mount:	7.0 x 4.9 x 1.0 in., 17.8 x 12.5 x 2.5 cm.
Rack Mount:	7.0 x 4.9 x 2.0 in., 17.8 x 12.5 x 5.0 cm.
Shipping Weight:	< 2 lbs./0.9 kg


ENVIRONMENTAL
MTBF:	>100,000 hours
Operating Temp:	-40° C to +74° C
Storage Temp:	-40° C to +85° C
Relative Humidity:	0% to 95% (non-condensing)†

† May be extended to condensation conditions by adding suffix ‘–C’to model number for conformal coating.
