Canoga Perkins 2270 fiber modem

High Speed Fiber Optic Modem

The Canoga Perkins 2270 fiber modem operates synchronously up to 20 Mbps, or asynchronously up to 5 Mbps. The Canoga Perkins 2270 fiber modem is available with 850nm multimode optics and 1310nm single mode optics. With a 1310nm laser on single mode cable, transmission distances to 45 km or more are possible.


2270 High Speed Fiber Modem

  • Sync Speeds Up to 20 Mbps
  • Interchangeable interfaces
  • System test, local/remote loopback
  • Internal/external/slave clock modes
  • Single/multi-mode fiber optics
  • 850nm, 1300nm
  • Rack mount/stand alone
  • Redundancy (optional)
  • 120VAC, 240VAC or -48VDC












Canoga Perkins 2270 fiber modem



Description

Featuring data through-put speeds up to 20 Mbps with selected interfaces, the Canoga Perkins 2270 fiber modem is ideal for modern cryptographic environments and other applications requiring extremely high speeds.

It operates synchronously up to 20 Mbps, or asynchronously up to 5 Mbps. The Canoga Perkins 2270 fiber modem is available with 850nm multimode optics and 1310nm single mode optics. With a 1310nm laser on single mode cable, transmission distances to 45 km or more are possible.

The Canoga Perkins 2270 fiber modem will operate with a large variety of field interchangeable interfaces. For example, a user could field change a V.35 interface to a RS-422 interface in a matter of minutes.

For applications that require multiple modems, the 2201 Rack Assembly holds up to ten 2200 Series Modems. Standard features of the 2201 include audio, visual and dry contact alarms in the event of power supply failure. Redundant power is also available as an optional feature.

Input power can be 120 VAC or 240 VAC or -48VDC. Fiber optic connectors can be ST or FC.

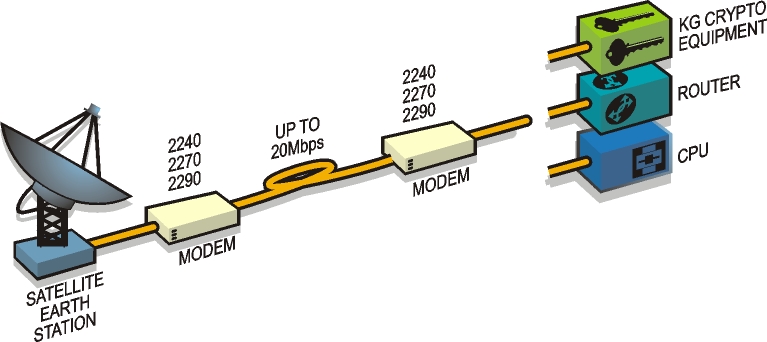

Typical Application



Specifications of the Model 2270 fiber modem

DIAGNOSTIC LEDS
Loopback On, Power On
Optical Interface (Rx and Tx)
Data Interface (Rx and Tx)
PHYSICAL
Dimensions
Standalone 2.5"H x 8.5"W x 12.8"D
(64 x 216 x 325mm)
Rackmount Card 7.8"H x 1.06"W x 12.5"D
(198 x 27 x 318mm)
Weight
Standalone 3.6 lb (1.63kg)
Rackmount Card 0.9 lb (0.40kg)
POWER
120/240VAC, 47 to 63Hz, 25W Max.
OPERATING ENVIRONMENT
Temperature 0° to 50°C
Humidity Up to 95% (Noncondensing)
PERFORMANCE
Composite Error Rate 1011 or Better
Bit Count Integrity 1 Event in 1,400 Hours
or Better
OPTICAL INTERFACE
Transmitter 850nm LED or 1310nm Laser
Connectors ST or FC/PC
DATA INTERFACE (Partial list) Connector
V.35 MRC34 (Female)
EIA-422/449 (Standard) DC-37 (Female)
EIA-422 High-Speed (SCTE and SCT) TwinAx (BJ-77)
EIA-530 P53 Buffered Interface DB-25 (Female)
LOSS BUDGET (Typical loss budgets at 2dB greater)
1310nm Laser SMF High Power 15dB
1310nm Laser SMF Low Power 10dB
850nm LED MMF 6dB





Canoga Perkins 2270 fiber modem part numbers and  Ordering Information
