Ethernet Dial-Up Modem with
Async Router

Ethernet Dial-Up Modem
Temp Rated - -40 to +70C / AC or DC power
IP6690 - High Performance Async Ethernet Router
w/V.92 Modem


  • Industrial rated -40 to +70 C

  • Two Ethernet ports: 10BaseT, 10/100BaseT

  • Two asynchronous serial RS232 ports

  • Each port is independent

  • Easy to setup and maintain

  • Web browser configuration and management

  • Multiple configuration files

  • Extensive statistics logging and diagnostic tools

  • NAT, port forwarding, port/address filtering

  • Extensive firewall and security features

  • Authentication with PAP, CHAP, MSCHAP(1&2)

  • Dedicated link, dial-out, dial-in, or dial-on-

  • demand combinations.

  • Link LAN to LAN or remote computer dial-in

  • DHCP server or client

  • Compact size, Stand-alone or Rack Mounting

  • AC and DC power supply options

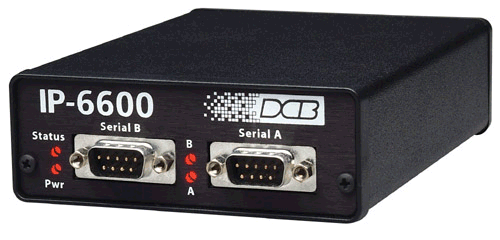

Asynchronous Router Picture - Two WAN Ports
IP-6600 Front View
Manual

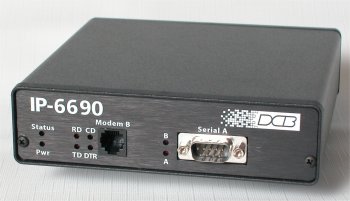

Asynchronous Router Picture - WAN Port & Modem
IP-6690 Front View

Asynchronous Router Picture - WAN Port & Modem
IP-6690 Rear View

IP6690manual.pdf


The IP-6600 is an industrial rated router featuring two serial ports and two ethernet LAN ports.

Since each Ethernet and serial port is independent, the router has many uses in addition to the commonly used dial-in, dial-out and asynchronous LAN connection modes. It is commonly used as an easily configured stand-alone firewall router using NAT, port filtering, and address filtering.

The two RS232 serial ports operate at asynchronous speeds as low as 300 bps and as high as 230 Kbps.   They may be used to link two separate remote sites with leased or dial connections, one port used for an ISP connection and the second for dial-in, each used for combined dial-in and dial-on-demand dial-out, or other convenient combinations.

The two Ethernet LAN connections (one operating at 10BaseT and the other auto-switching at 10 or 100BaseT) may be configured on different LAN segments for DMZ routing, firewalling and port/address filtering, or used as a DSL or Cable modem adjunct for Network Address Translation (NAT) or PPPoE.

The IP-6600 works well with DSL, cable or dial modems, leased line modems, CDPD or GSM modems, wireless links, satellite modems, the DCB DA-56 DSU, or even simple line drivers.

Flexibility is the key.  Routing may be configured between any combination of interfaces with full-featured port or address filtering, port forwarding, and NAT.   The same port may even be configured for dial-out using dial-on-demand while accepting dial-in calls from portable computer users.   It’s easily configured for “stay-online” dial connections.

Configuration is quick and easy using a web browser.  The router uses three different configurations: a stored configuration, a working (running) configuration, and a pending configuration.  This method allows temporary configuration changes, testing, and remote configuration changes even via a PPP link on the router.  Configurations may be saved on a PC for later use, and the config file is editable on a PC.

On-board tools make network monitoring and troubleshooting convenient. Tools include a packet header sniffer, traceroute, ping, and dial tools (force a dial, force a disconnect). Logging may be configured as standard or with extreme details showing negotiations, modem responses, etc. .

The APS-01 remote AC power control easily integrates with the IP-6600. Remotely power up, down, and reboot remote equipment using the IP-6600 management web interface by plugging the APS-01 into the second serial port.

The IP-6600 is straight-forward, easy to configure and maintain.  The IP-6600 has the features you want without  the complexity.


SPECIFICATIONS

Two asynchronous RS-232 serial ports:

  •  DE-9P (PC-9pin) connectors

  •  Speeds to 230 Kbps

  •  Or one V.90 Modem and one RS-232 port


Two ethernet ports :

  •  One 10/100BaseT

  •  One 10BaseT


Protocol Features

  • PPP, PPPoE, IP, DHCP (Server & Client), TCP, UDP, ICMP,

  • Authentication: PAP, CHAP, MSCHAP (V1 and V2)

  • Dial-On-Demand, inbound and outbound PPP (and combinations)

  • DNS Proxy Server

  • Auto-failover ISP dial backup dialing

  • Auto-Disconnect timers

  • Persistant Connection Option - Always on-line

  • Network Address Translation (NAT), port filtering, port forwarding, address filtering firewalling

  • Web browser configuration and management

  • Default IP address:  192.168.0.1


Indicators

  • Front - Power, Status, port activity (2)

  • Rear – LAN connection (2), LAN activity (2)


Controls   (DIP switch:)

  •   Setup (initial setup using serial terminal)

  •   Reset

Physical/Electrical

  • Power requirements: 9 VDC, 600 ma standard

  • 12, 24, 48, 125 VDC and 240 VAC options are available

  • Supplied with 120 VAC external power supply

  •  4 ¼”x 5 ½”x 1 ¾”

  • One pound

Environmental

  • Operational Temperature: -40 to +70 C

  • Storage Temperature: -50 to +75 C

  • Humidity: <95% Non-condensing

  • Power Supply Options may affect temperature specifications
