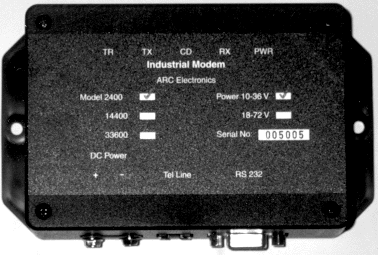

ARC Industrial Modem |
Hardened Industrial
VDC Power Grade Modems
Bell 103, 212, V.22, V.22bis, V.32, V.32bis, V.34
DC & AC Voltage - Double Surge Protection - Temp Rated
To service the growing need for efficient, reliable data communications in the harsh environments of "remote" remote sites and industrial facilities. ARC has developed a family of data communications products that can operate from various AC & DC power supplies and survive high surge levels and extreme heat and cold. All this without compromising the performance expected from state-of-the-art communications devices.
ARC modems work in remote sites with very low failure rates. These devices work where other modems roll over and die. When a service call to a remote site can mean an all day trip these modems are the ideal solution.
JUMP TO OUR CELLULAR MODEM
|
|
SPECIFICATIONS
Jump to IM 24 Manual
Jump to IM 144, IM336 Manual
SPECIFICATIONS |
IM 24 |
IM 144 |
IM 336 |
|
Max. Data throughput |
2,400 bps |
57,600 bps |
134,400 bps |
|
Asynchronous 10 bit codes |
Yes |
Yes |
Yes |
|
Data Speed |
2,400 bps |
14,400 bps |
33,600 bps |
|
Hardware MNP 5 & V.42 bis |
No |
Yes |
Yes |
|
Auto Baud |
Yes |
Yes |
Yes |
|
" AT " commands |
Yes |
Yes |
Yes |
|
RS 232 Interface, Female DB9 |
Yes |
Yes |
Yes |
|
Led Indicators
|
Yes |
Yes |
Yes |
|
Regulatory Approvals |
FCC |
FCC |
FCC |
|
10 to 36VDC or 18 to 72VDC |
Yes |
Yes |
Yes |
|
Power Input on High VDC |
18-72 V DC |
18-72 V DC |
18-72 V DC |
|
Double Surge Protection |
Yes |
Yes |
Yes |
|
Max. Current Consumption |
50 ma @48VDC |
70 ma @48VDC |
70 ma @48VDC |
|
Normal Current Consumption |
25 ma @48VDC |
35 ma @48VDC |
35 ma @48VDC |
|
Power Input Low VDC |
10-36 VDC |
10-36 VDC |
10-36 VDC |
|
Max. Current Consumption |
100 ma @12VDC |
140 ma @12VDC |
140 ma @12VDC |
|
Normal Current Consumption |
60 ma @12VDC |
100 ma @12VDC |
100 ma @12VDC |
|
10-36 VDC Model
Part # |
IM24LV |
IM14.4LV |
IM33.6LV |
|
Temp. Rating -30 to 70 C |
Yes |
Yes |
Yes |
|
115VAC power cube option |
Yes |
Yes |
Yes |
|
Environmental: 95% humidity, noncondensing - Optional Coatings for high humidity |
Yes |
Yes |
Yes |
|
Size 3.5" W, 6" L, 1" H |
3.5" W, 6" L, 1" H |
3.5" W, 6" L, 1" H |
3.5" W, 6" L, 1" H |
The 56Kbps modem model use the MM-WW- 56K
|
Modem
Modules World Wide (Europe/USA/Canada) |
MM-WW
(Modem Module
World Wide)
this
one of the internal modems
used on the Industrial Modem
(IM) series
These modules are approved for use in Europe, USA, Canada
¨
Complete
High Speed modem modules ready to go. No hardware design required.
¨
Quick
time to market
¨
Easy
to incorporate in existing and new designs
¨
Choice
of RS 232 or Serial TTL interface (20 pin header)
¨
CTR
21, FCC, DOC approved. (Austel, NZ in progress)
¨
Led
indicators
¨
Wide
input power range 5 Volts DC or 6.5 to 12 Volts DC.
SPECIFICATIONS
MM-WW 144
MM-WW 336
MM-WW 56K
Max.
Data throughput
57600 bps
134400 bps
224000 bps
Data
Speed
14400 bps
33600 bps
53000 bps
Hardware
MNP 5 & V 42 bis
Yes
Yes
Yes
Auto
Baud
Yes
Yes
Yes
“AT”
commands
Yes
Yes
Yes
RS
232 Interface
Yes
Yes
Yes
TTL
Serial Interface option
Yes
Yes
Yes
Led
Indicators option
Yes
Yes
Yes
Regulatory
Approvals
FCC
FCC
FCC
Power
Supply
7-12 V DC
7-12V DC
7-12 V DC
5
V operation
Yes
Yes
Yes
Max.
Current Consumption
75 ma
200 ma
200 ma
Software
Compatibility with all
existing
data-fax software
Yes
Yes
Yes
Power
Down Ring Detect (option)
Yes
Yes
Yes
Custom Configurations & options Yes Yes Yes
Part numbers
IMXXAC for 115VAC power
IMXXLV for low voltage - 9 to 36 VDC
IMXXHV for high voltage - 18 to 72VDC
the LV or HV version
can be used for 24 VDC
