Fiber Optic Phone Line (POTS) Extender

 The fiber optic Phone line Extender can turn a fiber optic network into a voice line
simply by plugging a telephone set into an RJ-11 connector.

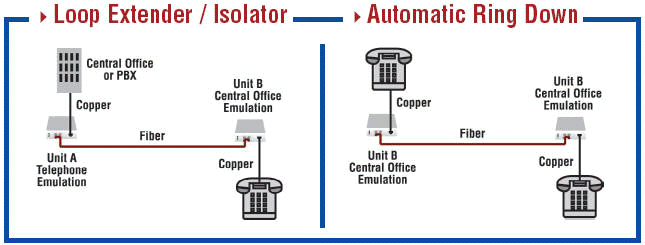

The Transition POTS phone line converter extender system is intended to connect central-office voice grade signals to distant Plain old telephone equipment (POTS) utilizing standard telephone signaling. Two units are required to implement an end to end system; Unit A connects to a telephone line or PBX and has the ability to detect ringing voltages and to act as a telephone (LINE SIDE FXS). Unit B is the reciprocal unit and has the ability to act as a Central Office and connects to a telephone device (CUSTOMER SIDE FXO).


The Transition ASAPTF331x-1x0 copper to fiber converter system provides: audio transmission, caller ID, and ringing at the distant end. The electrical interface is provided through a RJ-11 female connector.

  • Automatic ring-down is accomplished when two "B" (FXO) units are connected to each other.


view set up manual



to have auto-ring-down use 2 FXO units and set option for Ring-Down


Specifications

Standards

FCC Part 68, TBR24

Analog Port (Telephone Emulation or FXS)

Connector RJ-11

Impedance 600 ohms

REN 0.48 Loop

Current 20 to 100 ma.

Insertion Loss 0.0 +/-1.0 dB at 1000 Hz when both ports are terminated at 600 ohms

Analog Port (Central Office Emulation or FXO)

Connector RJ-11

Impedance 600 ohms

Battery Source 48 VDC +/- 5V

Ringing Supply 90Vp-p

Ring Frequency 15 - 30 Hz. (Reproduces frequency detected by side A)

Ring Cadence Reproduces cadence detected by side A

Insertion Loss 1.0 +/- 1.0 dB @ 1000 Hz when both ports are terminated at 600 ohms

Fiber Optic Connector Specs

Multimode

ASAPTF3311-100 & ASAPTF3311-110

FXS Min TX PWR: -19 dBm
FXO Max TX PWR: -14 dBm
RX Sensitivity: -30 dBm
Max In PWR: -14 dBm
Link Budget: 11.00 dB

ASAPTF3313-100 & ASAPTF3313-110

Min TX PWR: -19 dBm
Max TX PWR: -14 dBm
RX Sensitivity: -30 dBm
Max In PWR: -14 dBm
Link Budget: 11.00 dB

Single Fiber Single Mode

ASAPTF3329-100 & ASAPTF3329-110

Min TX PWR: -13 dBm
Max TX PWR: -6 dBm
RX Sensitivity: -32 dBm
Max In PWR: -3 dBm
Link Budget: 19.00 dB

ASAPTF3329-101 & ASAPTF3329-111

Min TX PWR: -13 dBm
Max TX PWR: -6 dBm
RX Sensitivity: -32 dBm
Max In PWR: -3 dBm
Link Budget: 19.00 dB

ASAPTF3329-102 & ASAPTF3329-112

Min TX PWR: -8 dBm
Max TX PWR: -3 dBm
RX Sensitivity: -33 dBm
Max In PWR: -3 dBm
Link Budget: 25.00 dB

ASAPTF3329-103 & ASAPTF3329-113

Min TX PWR: -8 dBm
Max TX PWR: -3 dBm
RX Sensitivity: -33 dBm
Max In PWR: -3 dBm
Link Budget: 25.00 dB

Single Mode

ASAPTF3314-100 & ASAPTF3314-110

Min TX PWR: -15 dBm
Max TX PWR: -8 dBm
RX Sensitivity: -31 dBm
Max In PWR: -8 dBm
Link Budget: 16.00 dB

ASAPTF3315-100 & ASAPTF3315-110

Min TX PWR: -8 dBm
Max TX PWR: -2 dBm
RX Sensitivity: -34 dBm
Max In PWR: -7 dBm
Link Budget: 26.00 dB

ASAPTF3317-110

Min TX PWR: -5 dBm
Max TX PWR: 0 dBm
RX Sensitivity: -34 dBm
Max In PWR: -7 dBm
Link Budget: 29.00 dB

Switches / Option Jumpers

Automatic Ring Down / Normal

Status LEDs

LED colors are Green

Fiber Link On indicates fiber link up

Active On indicates Local unit Off Hook

Power On indicates power is on

Power Supply

12VDC; 0.6A with a115VAC power cube

Dimensions

Width: 3.625" (92 mm)
Depth: 4.75" (121 mm)
Height: 1.875" (48 mm)

Environment

0 - 50C; 5% - 95% humidity (non-condensing); 0 - 10,000 feet altitude

Shipping Weight

2 lbs. (.90 kg)

Compliance

FCC Class A; VCCI Class A; EN 55022 (CISPR 22) Class A; ICES 003; UL listed; CISPR A; CE Mark Wall Mount Power Supply: UL Approved and CSA Certified

Warranty

Lifetime

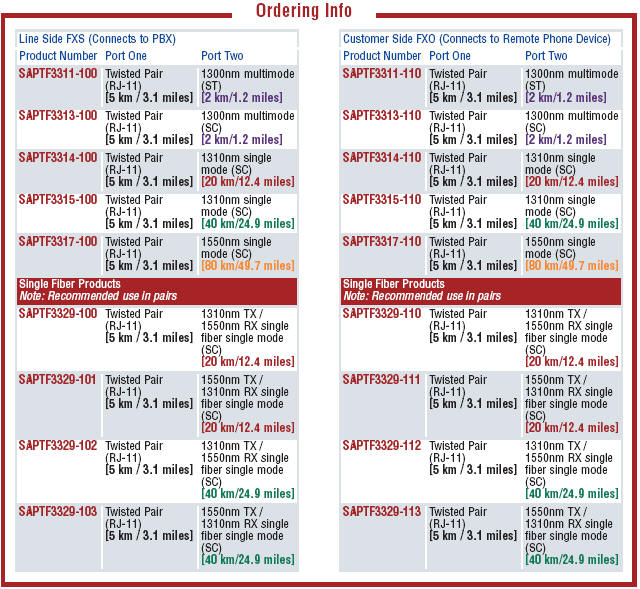

Ordering Information

Product Number Port One Port Two
1) ASAPTF3311-100 FXS Twisted Pair (RJ-11) [5 km/3.1 miles] 1300nm multimode (ST) [2 km/1.2 miles]
2) ASAPTF3311-110 FXO Twisted Pair (RJ-11) [5 km/3.1 miles] 1300nm multimode (ST) [2 km/1.2 miles]
3) ASAPTF3313-100  FXS Twisted Pair (RJ-11) [5 km/3.1 miles] 1300nm multimode (SC) [2 km/1.2 miles]
4) ASAPTF3313-110 FXO Twisted Pair (RJ-11) [5 km/3.1 miles] 1300nm multimode (SC) [2 km/1.2 miles]
5) ASAPTF3314-100  FXS Twisted Pair (RJ-11) [5 km/3.1 miles] 1310nm single mode (SC) [20 km/12.4 miles]
6) ASAPTF3314-110 FXO Twisted Pair (RJ-11) [5 km/3.1 miles] 1310nm single mode (SC) [20 km/12.4 miles]
7) ASAPTF3315-100  FXS Twisted Pair (RJ-11) [5 km/3.1 miles] 1310nm single mode (SC) [40 km/24.9 miles]
8) ASAPTF3315-110 FXO Twisted Pair (RJ-11) [5 km/3.1 miles] 1310nm single mode (SC) [40 km/24.9 miles]
9) ASAPTF3317-110 Twisted Pair (RJ-11) [5 km/3.1 miles] 1550nm single mode (SC) [80 km/49.7 miles]
10) ASAPTF3329-100  FXS Twisted Pair (RJ-11) [5 km/3.1 miles] 1310nm TX / 1550nm RX single fiber single mode (SC) [20 km/12.4 miles]
11) ASAPTF3329-101 Twisted Pair (RJ-11) [5 km/3.1 miles] 1550nm TX / 1310nm RX single fiber single mode (SC) [20 km/12.4 miles]
12) ASAPTF3329-102 Twisted Pair (RJ-11) [5 km/3.1 miles] 1310nm TX / 1550nm RX single fiber single mode (SC) [40 km/24.9 miles]
13) ASAPTF3329-103 Twisted Pair (RJ-11) [5 km/3.1 miles] 1550nm TX / 1310nm RX single fiber single mode (SC) [40 km/24.9 miles]
14) ASAPTF3329-110 Twisted Pair (RJ-11) [5 km/3.1 miles] 1310nm TX / 1550nm RX single fiber single mode (SC) [20 km/12.4 miles]
15) ASAPTF3329-111 Twisted Pair (RJ-11) [5 km/3.1 miles] 1550nm TX / 1310nm RX single fiber single mode (SC) [20 km/12.4 miles]
16) ASAPTF3329-112 Twisted Pair (RJ-11) [5 km/3.1 miles] 1310nm TX / 1550nm RX single fiber single mode (SC) [40 km/24.9 miles]
17) ASAPTF3329-113 Twisted Pair (RJ-11) [5 km/3.1 miles] 1550nm TX / 1310nm RX single fiber single mode (SC) [40 km/24.9 miles]
