ARC OEM Modems

Complete 300,1,200, 2,400, 14,400, 33,600 bps modem module ready to go - Choice of RS 232 or Serial TTL interface (10 pin header) - FCC approved - LED indicators - Wide input power range 5 VDC to 12 VDC. Modem Module allows OEMs to incorporate modem capabilities in new and  existing  designs with ease!

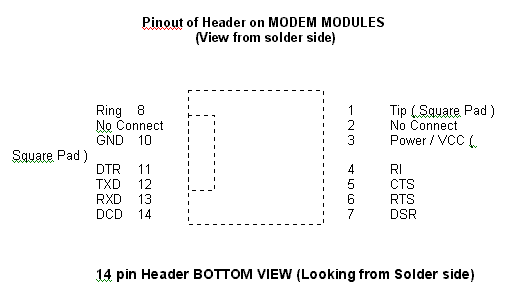

PCB mount versions also available

Telecom & Datacom Solutions for OEMs

jump to World Wide modem modules


Modem Modules

Modem Module 2400 bps
(MM24)

jump to 2400 Manual PDF file


A risk-free way to add 300 - 1,200 - 2,400BPS Data Communication features
to your product !

MM ( Modem Module ) allows OEMs to incorporate modem capabilities in new and  existing  designs with ease. Only two mounting screws and  a serial ( TTL or RS 232 ) connection required !

PCB mount versions also available.

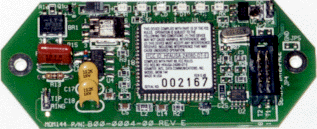

ARC Modem Module.GIF (36980 bytes)

4"L (hole to hole 3.5")
15/8" W by 3/4" Thick

      FEATURES:

  • Complete 2400 bps modem module ready to go
  • No hardware design required
  • Quick time to market
  • Easy to incorporate in existing and new designs

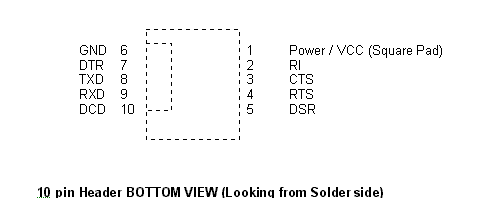

  • RS 232 or Serial TTL interface (10 pin header)
  • FCC- 68 / FCC-15 approved
  • Led indicators
  • Wide input power range 5 VDC or 6.5 to 12 VDC

SPECIFICATIONS:                                                                                           OPTIONS:

Max. Data throughput 2400 bps
1) Custom form
     factor/Interface
2) Custom firmware
    &  configurations


Data Speed 2400 bps
Hardware MNP 5 & V 42 bis No
Auto Baud Yes
" AT "   Commands Yes
RS 232 Interface Yes
TTL Serial Interface Option Yes
Led Indicators Yes
Regulatory Approvals FCC- 68 / FCC-15
Power Supply 5 or 7-12 V DC
5 V  Operation Yes
Max. Current Consumption
TTL       = 40 ma
RS232 = 58 ma
Sleep mode TTL    = 6 ma
RS232 = 24 ma
Software compatibility with all existing data-fax software Yes
Custom Configurations Yes
Built in surge suppression Yes

        APPLICATIONS:

  • Automatic meter readings
  • SCADA
  • Vending machines
  • Medical industry
  • Security  industry
  • Energy management
  • Credit card terminals
  • POS terminals
  • Office machines

Modem Module 14,400 bps & 33,600 bps
MM-144, MM-336

A risk-free way to add 14,400 bps & 33,600 bps Data Communication features
to your product !

MM ( Modem Module ) allows OEMs to incorporate modem capabilities in new and existing designs with ease. Only  two mounting screws and a  serial ( TTL or RS 232 ) connection required! PCB mount versions also available.

ARC Modem Module.GIF (36980 bytes)

4"L (hole to hole 3.5")
15/8" W by 3/4" Thick

       FEATURES:

  • Complete 14400 and 33.6 Kbps modem module
  • No hardware design required
  • Quick time to market
  • Easy to incorporate in existing and new designs
  • Choice of RS 232 or Serial TTL interface (10 pin header)
  • FCC- 68 / FCC-15 approved
  • Led indicators
  • Input power range 5 V DC or 6.5 to 12 V DC

                SPECIFICATIONS:                                                      OPTIONS:

Max. Data throughput   57,600 bps
115,000 bps
1) FAX
2) Custom form
     factor/Interface
3) Custom firmware
    &  configurations


MM144
MM336
14,400 bps
33,600 bps
Hardware MNP 5 & V 42 bis Yes
Auto Baud Yes
" AT "   Commands Yes
RS 232 Interface Yes
TTL Serial Interface Option Yes
Led Indicators Yes
Regulatory Approvals FCC- 68 / FCC-15
Power Supply 7-12 V DC
5 V  Operation Yes
Max. Current Consumption
Normal
200 ma
125 ma
Software compatibility with all existing data-fax software Yes
Custom Configurations Yes
Built in surge suppression Yes

        APPLICATIONS:

  • Automatic meter readings

  • SCADA

  • Vending machines

  • Medical industry

  • Energy management

  • Credit card terminals

  • POS terminals

  • Cable set-top boxes

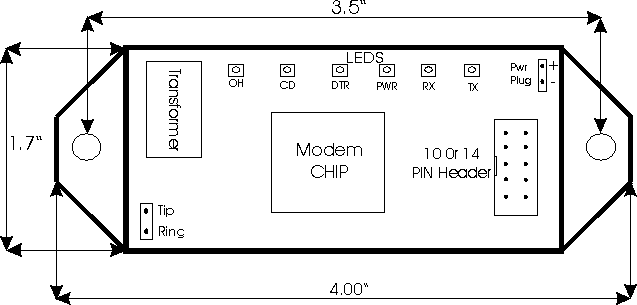

ARC 24 modem module drawing 10-17-98.gif (5817 bytes)






Modem Modules World Wide (Europe/USA/Canada)

A risk-free way to add Data Communication features to your product!



MM-WW (Modem Module World Wide) allows OEMs to incorporate modem capabilities in new and existing designs with ease. Only two mounting screws and a serial (TTL or RS 232) connection required!  PCB mount versions also available.



These modules are approved for use in Europe, USA, Canada

¨        Complete High Speed modem modules ready to go. No hardware design required.

¨        Quick time to market

¨        Easy to incorporate in existing and new designs

¨        Choice of RS 232 or Serial TTL interface (20 pin header)

¨        CTR 21, FCC, DOC approved. (Austel, NZ in progress)

¨        Led indicators

¨        Wide input power range 5 Volts DC or 6.5 to 12 Volts DC.



SPECIFICATIONS                                   MM-WW 144          MM-WW 336          MM-WW 56K

Max. Data throughput                              57600 bps               134400 bps             224000 bps

Data Speed                                             14400 bps               33600 bps               53000 bps

Hardware MNP 5 & V 42 bis                   Yes                         Yes                         Yes

Auto Baud                                               Yes                         Yes                         Yes

“AT” commands                                      Yes                         Yes                         Yes

RS 232 Interface                                     Yes                         Yes                         Yes

TTL Serial Interface option                      Yes                         Yes                         Yes

Led Indicators option                               Yes                         Yes                         Yes

Regulatory Approvals                             FCC                         FCC                         FCC

Power Supply                                         7-12 V DC               7-12V DC                7-12 V DC

5 V operation                                          Yes                         Yes                         Yes

Max. Current Consumption                      75 ma                      200 ma                    200 ma

Software Compatibility with all

existing data-fax software                     Yes                         Yes                         Yes

Power Down Ring Detect (option)          Yes                         Yes                         Yes

Custom Configurations & options  Yes                         Yes                         Yes
