TELENETICS MIUPowerPort -
VDC power

5VDC and 12 Volt DC Power Modem with sleep modem

When not on line, the dial up modem automatically go into a power down mode and consumes only 5m amps while inactive.


 MIUPowerPort2.4

 MIUPowerPort9.6FPD

 MIUPowerPort9.6FPD/R

 MIUPowerPort14.4

 MIUPowerPort14.4L

 MIUPowerPort14.4EL

 MIUPowerPort28.8

 MIUPowerPort202T

 MIUPowerPortLDM

 WT-120-9VA


jump to related Telenetics modem pages

Telenetics has designed modems that work in "remote" remote sites with very low failure rates. These devices work where other modems roll over and die. When a service call to a remote site can mean an all day trip these modems are the ideal solution.

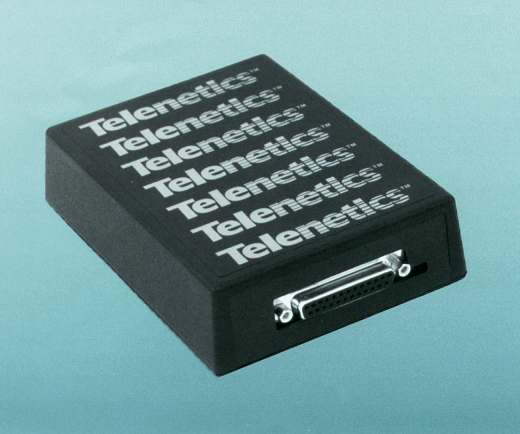

The MIU/PowerPort modem  is an industrial grade modem that can be powered directly through the RS232 (DB25) data interface port or power jack.

MIU/PowerPort modem can be powered by delivering +5VDC (regulated) through pin 10 of the DB25. An optional 12VDC version is also available. Alternatively, an external jack allows the MIU/PowerPort to be powered from a wall transformer or other low voltage AC or DC power source.

When not on line, the dial up MIUPowerPort modems automatically go into a power down mode and consumes only 5m amps while inactive.

The MIU/PowerPort modem is available with various modulations, including...

...and operates over dial-up and 2 or 4-wire leased lines at full or half duplex as appropriate.

The MIU/PowerPort modem has a sister product, the MIU/PowerPack, which is powered from an internal, rechargeable Ni-Cad battery. The battery draws its charging current from the DTE’s RS232 interface or an optional solar panel. For more information, ask for the MIU/PowerPack brochure and specifications.

The MIU/PowerPort is fully Hayes AT command set compatible with programmable S-registers.

All models will operate in temperatures from -40 to 85oC and are surge protected on the analog line up to 5kV.


jump to install Manual

jump to related DC powered modems pages

Technical

Specifications

MIUPowerPort

202T xx

MIU/PowerPort

2.4

MIU/PowerPort

9.6 & 9.6L

MIU/PowerPort

14.4 & 14.4L

MIU/PowerPort

28.8

Modem Line Speeds:

Asynchronous

0 - 1200bps

2400, 1200, 300bps

2400, 1200, 300bps

14400, 9600, 4800, 2400, 1200, 300bps

28800, 14400, 9600, 4800, 2400, 1200, 300bps

DTE Rates above modem line speeds (ie; with data compression)

-

-

19200, 9600, 4800bps

57.6, 38.4,
19.2kbps

115.2, 57.6,
38.4kbps

Protocols

Bell 202

V.22bis, V.22
Bell 212A
Bell 103

V.22bis, V.22
Bell 212A
Bell 103

V.32bis, V.32 V.22bis, V.22 Bell212A, Bell103

V.34, V.32bis, V.32 V.22bis, V.22
Bell212A, Bell103

Dial Up

No

Yes

Yes (Model 9.6)

Yes (Model 14.4)

Yes

2 Wire Leased Line

Yes1

No

Yes (Model 9.6L2)

Yes (Model 14.4L2)

No

4 Wire Leased Line

Yes1

No

Yes (Model 9.6L2)

Yes (Model 14.4L2)

No

Compatibility

n/a

Hayes™ Extended AT Command Set

Error Correction/
Data Compression

None

None

MNP 2, 4, 5 & 10
V.42, V.42bis

Power Requirements

+5 VDC 5% in through Pin 10 on the DB25 Data Port
(Option: 7-16VDC in through Pin 10 on the DB25 Data Port. Please specify)
The modem can also be powered from 6-9VAC or 7-16VDC to an external 2.1mm jack.
(Optional 120VAC wall transformer available from Telenetics)

Current Consumption

128mA @ +5VDC

71mA @ 12VDC

64mA @ +5VDC

35mA @ 12VDC

100mA @ +5VDC

56mA @ 12VDC

219mA @ +5VDC

123mA @ 12VDC

287mA @ +5VDC

160mA @ 12VDC

Sleep Mode

Dial up modems can be factory set to automatically fall into "Power Down" mode
after 45 seconds of inactivity.
Draws 5mA in power down mode
Powers back up on receipt of DTR signal or incoming call.
*
202T and lease line modems do not have this option

Digital Port

RS232 with DB25 Female Connector

Analog Port

RJ11

Surge Protection

(Analog Port)

3.75kVac

5kVac

5kVac

3.75kVac

3.75kVac

Environment

-40oC to +85oC, 0 to 95% humidity (non-condensing)

Case Size

5-3/8" x 4" x 1-3/8"

Certifications

FCC Part 68 Class A, Industry Canada Certified

Important notes regarding leased line operation: 1 Bell202T is half or full duplex, suitable for point-to-point and multipoint applications. 2 The standard 9.6L & 14.4L models are 4-wire, full or half duplex, point-to-point only. 2-wire, full duplex, point-to-point available on special order.




RS232 Power-Port Modems



RS-232 Port-Powered Modems.  Standard voltage + 5VDC                                                For optional (7 to 16 VDC),

 MIUPowerPort2.4

MIU2.4PowerPort modem V.22bis, 2400 bps Dial-up Modem

 MIUPowerPort9.6FPD

MIU9.6FPDPowerPort modem 9600 bps Digital Fast Poll Modem

 MIUPowerPort9.6FPD/R

MIU9.6FPD/RPowerPort modem 9600 bps Digital Fast Poll Modem w/ Repeater

 MIUPowerPort14.4

MIU14.4PowerPort V.32bis, 14.4 Kbps Dial-up Modem

 MIUPowerPort14.4L

MIU14.4PowerPortL V.32bis, 14.4 Kbps Leased-Line Modem

 MIUPowerPort14.4EL

MIU14.4PowerPortEL V29. 9600 bps or V.33, 14.4 Kbps Leased-Line Modem

 MIUPowerPort28.8

MIU28.8PowerPort modem V.34 28.8 Kbps Dial-up Modem

 MIUPowerPort202T

MIU28.8PowerPort Bell202T, 1-1200 bps Leased-Line Modem

 MIUPowerPortLDM

Limited Distance Modem, PowerPort, 5-12V

 WT-120-9VA

Optional 120VAC Wall Plug Transformer for MIU/PowerPort modems    (60 Hz)
