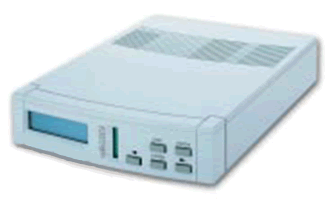

V.3600 Modem

The V.3600 UI is a high performance, 2-wire dial-up and 2 or 4 - wire leased-line circuit modem -
AC or DC powered, synchronous and asynchronous, standalone or rack-mounted modem.




The NEW V3600 UI Modem

  • ITU-T V.34+/ V.34/ V.32bis/ V.32/V.26bis/ V.22bis/ V.22/ V.23/ V.21/ V.24/ V.28/ V.25bis/ V.54/V.52/ V.42/ V.42bis/ 4/ V.13/ V.8 and Bell 212A/103
  • Leased line dial back-up and restore in manual or auto mode
  • Analog loop-back, digital loop-back and remote, digital loop-back (with pattern or not); BERT test pattern using 511
  • Password & call back security with Front panel lock and password protect
  • AC - DC Power
  • Rack mountable with RM16M-UI chassis / AC or DC power

click here to view manual

click here to view rack Specs

  the V3600-UI now supersedes the old UDS-Codex-Motorola-Telenetics V.3600 modem
We now offer the newly updated V.3600 modem with better specs

The  V3600-UI is a series of high performance, synchronous and asynchronous, full-duplex, multi-standard standalone or rack-mounted modem. It is designed for use on 2-wire dial-up and 2/4- wire leased-line circuits.

The V3600-UI is fully compliant with ITU-T V.34 recommendation as well as being compatible with ITU-T recommended V.32bis/V.32, V.22bis, V.23 and V.21 international standards while operating at 33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000, 9600, 7200, 4800, 2400, 1200, and 300 bits per second.

An in-band secondary channel allows the user to monitor and control the remote site unit. The V3600-Uiseries also offers auto callback and leased-line security checks in addition to the dial-up security checks.

The V3600-UI is a series of high performance, synchronous and asynchronous, full-duplex, multi-standard standalone or rack-mounted modem. It is designed for use on 2-wire dial-up and 2/4- wire leased-line circuits. The Data Connect V3600 is fully compliant with ITU-T V.34 recommendation as well as being compatible with ITU-T recommended V.32bis/V.32, V.22bis, V.23 and V.21 international standards while operating at 33600, 31200, 28800, 26400, 24000, 21600, 19200,16800, 14400, 12000, 9600, 7200, 4800, 2400, 1200, and 300 bits per second.

In V.34 mode the V3600-UI provides full-duplex operation at up to 33.6Kbps on a 2/4-wire PSTN line with features like line probing, symbol rate and carrier frequency automatic selection. A range of performance enhancing techniques are available for V.34 mode, including adaptive pre-coding, adaptive pre-emphasis, nonlinear encoding (Warping), constellation expansion, multidimensional trellis coding, transmission power back-off (power drop), V.8 standard modem initialization and shell mapping.

An in-band secondary channel allows the user to monitor and control the remote site unit. The Data Connect V3600 series also offers auto callback and leased-line security checks in addition to the dialup security checks. The TRS32 rack can accommodate up to 16 modem cards with 32 ports, control unit and single or dual redundant power unit. Dual redundant power supply meaning if one power does fail, the other one is capable of powering the entire rack.


click here to view V.3600-UI Modem card and Rack-Chassis


Specifications
Fully compatible with ITU-T V.34+/ V.34/ V.32bis/ V.32/V.26bis/ V.22bis/ V.22/ V.23/ V.21/ V.24/ V.28/ V.25bis/ V.54/V.52/ V.42/ V.42bis/ 4/ V.13/ V.8 and Bell 212A/103
19 rack accommodates up to 16 modem cards with hot-swap and profile copy functions
Achieve throughput up to 115200bps
V.13 simulated carrier in half duplex
MNP4,V.42 error correction
MNP5 ,V.42bis data compression
Extended AT and ITU-T V.25bis command set
Leased line dial back-up and restore in manual or auto mode
Auto fallback and fall forward
Remote configuration via secondary channel
Front panel lock and password protect
Password & call back security
Diagnostic capabilities:
Analog loop-back, digital loop-back and remote, digital loop-back (with pattern or not); BERT test pattern using 511
Auto or manual dialing/answer
Front panel configuration via rubber switches and LCD
Front panel key reset function
G3 FAX send/receive compatible with EIA-578 Class 1 FAX command (optional)
DC voltages - 12VDC to 36VDC auto-ranging or 48VDC

Compatibility

 V.34+: 33.6/31.2 Kbps SM (4D TCM)

 V.34: 28.8/26.4/24/21.6/19.2/16.8/14.4/12/9.6/7.2/4.8/2.4 Kbps SM

(4D TCM)

 V.32bis: 14400/12000/7200 bps TCM

 V.32: 9600 bps TCM, 9600/4800 bps QAM

 V.26bis: 2400/1200 bps DPSK

 V.22bis: 2400 bps QAM, 1200 bps BPSK

 V.22/Bell 212A: 1200 bps DPSK

 V.23: 1200/75, 600/75 bps FSK

 V.21/Bell 103: 300 bps FSK

Symbol Rate and Carrier Frequency

Equalization

 Automatic adaptive EQ

Call Progress Monitoring

 Dial tone, Ring, Ringback, Busy and backup dial

Line Status Monitoring

 Tx level, Rx level, S/N ratio, EQM value, delay, phase jitter, freq.

offset, far-end freq. offset, far-end echo, DTE format, retrain count,

Tx baud rate, Rx baud rate, Tx carrier, Rx carrier, Tx speed, Rx

speed, Tx power back-off level, Interface lead monitoring

Memory

 Non-volatile; 2 user profiles and 10 phone numbers with 30

characters each

Line Interface

 Cx/Nx: RJ-11 for dial-up, JM8 (like RJ45) for leased line

 NDx: 6-pin Terminal Block or 50-pin Centronic

Transmit Clock

 Internal, Loopback, or External

Dialing Command and Type

 Extended AT and V.25bis using Tone/Pulse/Mixed

Flow Control

 RTS/CTS, XON/XOFF, CTS only

Power Requirements

 AC: 90 ~ 265 V, Autorange, 47 ~ 63 Hz

 DC: -36 ~ -72 V (optional)

 Dual redundant power unit for rack (optional)

Dimensions and Weight

 Stand alone: 180W x 48H x 262D mm; 1.9 Kg

 Rack-Mount: 480W x 220H x 380D mm (chasis); 0.6 Kg (card)

Operating Environment

 Operating temperature: 0 C ~ 50 C

 Storage temperature: 0 C ~ 50 C

 Relative humidity: up to 95% (non-condensing)

* Specifications subject to change without notice.

Data Format

 Synchronous or Asynchronous

 Total bit length: 8, 9, 10, 11

Data Speed

 Asynchronous-

75/300/600/1200/2400/4800/7200/12000/14400/16800/19200/21600/

24000/26400/28800/31200/33600/38400/57600/76800/115200 bps

 Synchronous-

1200/2400/4800/7200/9600/12000/14400/16800/19200/21600/

24000/26400/28800/31200/33600 bps

DTE Interface

 DB25 female,   EIA RS-232C, ITU-T V.24/V.28

Line Requirement

 Dial-up line, 2/4-wire leased line

Transmit Level

 Dial-up line: 0 to -15 dBm; Leased line: 0 to -31 dBm

Receive Dynamic Range

 -4 to -43 / 0 to -33 dBm





ordering part numbers
V3600-UI-SA             V3600 Universal International stand alone
V3600-UI-DC             V3600 DC 48VDC
V3600-UI-24DC          V3600 12 to 36VDC
V3600-UI-RM             V3600 Rack-mount
V3600-UI-DualRM      V3600 Dual Rack-mount
RM16M27-UI-AC       16-slot 19 AC Chassis
72005227
RM16M34-UI-DC       16-slot 19 DC Chassis
72005234
