Telenetics Security Modems

password and caller ID protection security modem
in stock 12, 24, 48, 125VDC and 220VAC power

IDEAL FOR SECURING:

Remote network operations Dial-up Connection to Networked PCs

Control systems Secure/Confidential FAX Servers

Console ports Telecom Equipment Maintenance Ports

Diagnostic ports Corporate Data Access for Legacy Applications

Supervisory channels Alarm Systems

Remote Access Servers (RAS) Dial-up Data Connection via Toll-Free Numbers

SECURITY MODEMS

AC and DC Powered

StarComm modems are now being made by Telenetics - "a world leader in industrial rated modems"

Whether you are trying to protect configuration ports on remote equipment or control access to your private network, the StarComm 3342S family of security modems is the right solution. With the wide range of features and options available in the 3342S family, you can select from economical solutions for basic security requirements or powerful feature sets for complex security issues:

PASSWORD/CALLER ID PROTECTION - Models capable of storing as many as 400 passwords or Caller ID keys are available. Protection features of the 3342S may be configured to operate either with or without a password prompt. Operating without a password prompt makes it more difficult for intruders to understand system operation and access requirements. The Caller ID feature requires that a caller's telephone number be present in the modem's database. Non-registered numbers will not be answered.
CLOSED USER GROUPS - Built in challenge response algorithms may be enabled to create closed user groups of StarComm security modems.
AUDIT TRAIL WITH PRECISION TIMEKEEPING - With the audit trail facilities of the 33,42S, there is never a question about who has gained access or who has tried to gain access to your installation. All attempts to access the 3342S are stored in a nonvolatile audit trail along with the date and time.
REMOTE CONFIGURATION - The remote configuration facilities of the 3342S allow you to remotely maintain passwords, review the audit trail or modify any parameter of the device. Additional configuration commands allow you to select DTE bit rate, character length and parity. Remote configuration access may be restricted to specific passwords.
FLEXIBLE PACKAGE AND POWER OPTIONS - The 3342S family is available in both standalone and rack mount configurations. All models operate on either AC or DC power.
OPTIONAL DEVICE MANAGEMENT SOFTWARE - jump to software manual - Automates audit trail data collection and simplifies password/Caller ID management for large, distributed networks.

IDEAL FOR SECURING

Alarm systems
Phone switches
Control systems
Console ports
Diagnostic ports
Supervisory channels
Remote Access Servers (RAS)
Corporate data access

jump to Security Modem Software Manual PDF file
jump to DC power connections diagram
(NOTE power plug polarity - center pin is positive and the out side of 5.5 barrel connector is negative)

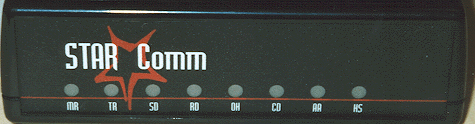

Starcomm modem chassis pic.GIF (24415 bytes)

COMPATIBLE WITH ALL STANDARD MODEMS FROM 300bps THROUGH 33.6Kbps.
PASSWORDS, AUDIT TRAIL, AND CLOCK MAINTAINED FOR YEARS WITHOUT POWER.
ENGINEERED AND MANUFACTURED TO COMMERCIAL STANDARDS.
EASY TO CONFIGURE AND MANAGE WITH SIMPLE TERMINAL EMULATION OR OPTIONAL WINDOWS COMPATIBLE DEVICE MANAGER SOFTWARE.
DATA COMPATIBILITY - V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21, BELL 212A, BELL 103J.
FAX COMPATIBILITY - Group 3 send/receive rates to 14.4Kbps. Class 1 and 2 support.
DTE INTERFACE - RS-232C(V.24). Autobaud or fixed data rates to 115.2Kbps.
AUTO DIAL MODES - Standard AT compatible dial commands or DTR dial of stored number.
ANSWER MODES - Standard auto answer or manual answer under DTE control.
ERROR CORRECTION -V.42 and MNP 2-4 error correction. MNP 10 extended cellular services.
DATA COMPRESSION - V.42bis and MNP5 data compression.
CONFIGURATION CONTROL - Standard AT commands for both local and remote configuration.
DIAGNOSTICS - V.54 through AT commands.
LINE INTERFACE - 2-wire, pulse or DTMF dial. XMT level: -12dBm, RCV sensitivity: -43dBm.
POWER (STAND ALONE UNITS) - Standard units automatically adjust to 9VAC or 9-14VDC. Power supply options: 5.5-14VDC, 18-125VDC, 66-220VAC.
POWER (RACK MOUNT) - Standard CC-2016 rack automatically adjusts to 85-265VAC, 27-44OHz. Optional DC supply automatically adjusts to positive or negative 36-75VDC.
ENVIRONMENTAL - Operating temperature range: -20C to +70C. Humidity: 90% non-condensing.
APPROVALS - FCC Part 68 & Part 15, Class A. Optional: International approvals available.
PHYSICAL (STAND ALONE UNITS) -Dimensions: 5.30"Lx5.05"Wx1.53"H. Weight: 12oz.
PHYSICAL (RACK MOUNT)- Fits CC-2016 rack. 4.73"Lx4.60"Wx.80"H. Weight: 9oz.

3342S Security Modems – All models offer an AT compatible command interface and support
the following modulation standards:
V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21, Bell 212A and Bell 103J.
All models feature password protection, caller ID protection and
audit trail capabilities with precision time keeping.

TEL3342E-244-2         security modem Stand alone, for 2-wire dial circuits. Power: 9-36VDC

TEL3342E-125-2         security modem Stand alone, for 2-wire dial circuits. Power: 48-220VAC and ADC

TEL3342R-RM4-2         security modem Rack mount, for 2-wire dial circuits.
