DAWN 1100
Voice/Data CSU


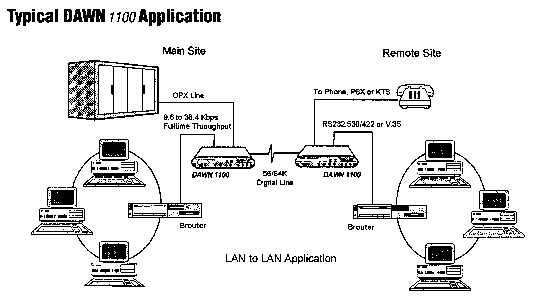

Specifications

TELCO INTERFACE

    Telco interface: DSU/CSU supported through RJ48S (eight-wire) type modular jack
    Line speed: 56 or 64 Kbps
    Transmit (Output) impedance: 135 ohm +/- 10%
    Receive (Input) impedance: 135 ohm +/- 10%
    Transmit (Output) level: 1.4V peak
    Range: DDS Extended (46db)

VOICE, GENERAL

    Compression: ADPCM, selectable 16 Kbps (2 bit coding), 24 Kbps (3 bit coding) and CCITT standard 32 Kbps (4 bit coding)
    Frequency response: Relative to 1000 Hz level, +/- 3 dB, 300-2800 Hz
    Adjustible Voice Levels
    Dialing: Supports tone (DTMF) and pulse dialing
    Overload protection: Per FCC Part 68 requirements

VOICE INTERFACE, LOOP SIGNALING

    User interface: Two-wire (single pair, Tip and Ring) supported through RJ-11C (six-wire) type modular jack
    Loop signaling types: FXO,FXS and private Line Automatic Ringdown (PLAR)
    Line impedance: 600 ohms
    Ringing Signal: 86 Vrms, 20 Hz, maximum ringing load of 2.0 ringer equivalences
    Input (Transmit) level: 0 dBm (600 ohms) at 1000 Hz produces a 0 dBm0 digital reference signal
    Output (Receive) level: a 0 dBm0 received digital reference signal produces either 0, -3, -6, -9 dBm (switch selectable) +/- 1 dB output (600 ohms) at Tip and Ring

PHYSICAL

    Power: 90 to 240 VAC, 50/60 Hz, External switching power supply, UL, CSA, VDE listed
    Environment: 0 to 50 degrees C, up to 95% RH non-condensing
    Size: 2.5 x 10.25 x 9.75 in (H x W x D).

     Weight: 2.5 lbs
    Indicators: Power, Loopback, Signal, Sync, Voice Busy, Data Xmt, Data Rcv
    Two year limited warranty. Extended warranty available. Meets Applicable Requirements of FCC
    Part 68 and Part 15, Subpart J. Specifications subject to

VOICE INTERFACE, E&M SIGNALING

    User interface: Two-wire (signal pair, Tip and Ring), or four-wire with two pairs, transmit (Tip and Ring, and receive T1 and R1) supported through RJ-48 (eight-wire) type modular jack E&M signaling types: Type I or Type II, for all registered or "grandfathered" PBX tie trunk interfaces
    Input (Transmit) level: 0 dBm (600 ohms) at 1000 Hz produces a 0 dBm0 digital reference signal in two-wire mode. In four-wire mode, the transmit level may be either 0 dBm or -16 dBm, (switch selectable)
    Output (Receive) level: a 0 dBm0 received digital reference signal (1000 Hz) produces either 0, -3, -6, -9 dBm (switch selectable) +/- 1 dB output (600 ohms) at Tip and Ring in two-wire mode. In four-wire mode, a 0 dBm0 received level will produce either a -3 dBm or +7 dBm, (switch selectable)



DATA INTERFACE

    User interface: RS-232C/RS-530, or V.35, supported through DB-25 connector
    Data speeds: 9.6, 14.4, 19.2, 28.8, or 38.4 Kbps for sync or async data. MBA, dynamic bandwidth allocation allows maximum throughput for sync data
    Synchronous data format: Any
    Asynchronous data format: 8 Bit, no parity, or 7 Bit with parity (odd or even)
    MAXimum Bandwidth Allocation (MBA,): The data channel can be optioned to operate at the maximum available bandwidth based on voice channel use, synchronous only
