T1 and E1 Ethernet Bridge Router

T1 to Ethernet Bridge or Router / 1 and 4 ports

Loop-IP6610 E1/T1-Router/Bridge support DB9S console port, which allows users to execute in-service diagnostics and fault isolation from a local or remote terminal. Loop-IP 6610 E1/T1-Router/Bridge also allow remote site to telnet via Ethernet port. The IP 6610 E1/T1-Router/Bridge series also provides multicolor LED indicators on the front panel and ACO (Alarm Cut-Off) button.


T1/E1-1 to 4 port Etherenet Router Bridge
Supports Router or Bridge mode
1-T1 to 4-T1 ports

IP-6610-T-1ETH-BR
IP-6610-T-1ETH-RT
IP-6610-T-4ETH-BR
IP-6610-T-4ETH-RT

click here for more info

click here for PDF

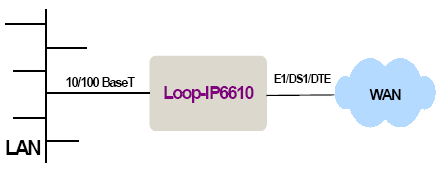

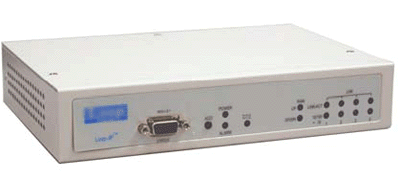

IP 6610 E1/T1-Router/Bridge Box







Ordering Information

To specify options, choose from list below:

Note: RoHS compliant units are identified by the letter G appearing immediately at the end of ordering code.

Model (non RoHS compliant) Model (RoHS compliant) Description

For E1 WAN port

Loop-IP6610-E75-1ETH-BR-pp Loop-IP6610-E75-1ETH-BR -pp-G 75 ohm E1 WAN port and 1 Ethernet port w/Bridge function only

Loop-IP6610-E75-4ETH-BR-pp Loop-IP6610-E75-4ETH-BR -pp-G 75 ohm E1 WAN port and 4 Ethernet ports w/Bridge function only

Loop-IP6610-E75-1ETH-RT-pp Loop-IP6610-E75-1ETH-RT-pp-G 75 ohm E1 WAN port and 1 Ethernet port w/Router & Bridge function

Loop-IP6610-E75-4ETH-RT-pp Loop-IP6610-E75-4ETH-RT-pp-G 75 ohm E1 WAN port and 4 Ethernet ports w/Router & Bridge function

Loop-IP6610-E120-1ETH-BR-pp Loop-IP6610-E120-1ETH-BR-pp-G 120 ohm E1 WAN port and 1 Ethernet port w/Bridge function only

Loop-IP6610-E120-4ETH-BR-pp Loop-IP6610-E120-4ETH-BR-pp-G 120 ohm E1 WAN port and 4 Ethernet ports w/Bridge function only

Loop-IP6610-E120-1ETH-RT-pp Loop-IP6610-E120-1ETH-RT-pp-G 120 ohm E1 WAN port and 1 Ethernet port w/Router & Bridge function

Loop-IP6610-E120-4ETH-RT-pp Loop-IP6610-E120-4ETH-RT-pp-G 120 ohm E1 WAN port and 4 Ethernet ports w/Router & Bridge function

For DS1 WAN port

Loop-IP6610-T-1ETH-BR-pp Loop-IP6610-T-1ETH-BR-pp-G DS1 WAN port and 1 Ethernet port w/ Bridge function only

Loop-IP6610-T-4ETH-BR-pp Loop-IP6610-T-4ETH-BR-pp-G DS1 WAN port and 4 Ethernet ports w/ Bridge function only

Loop-IP6610-T-1ETH-RT-pp Loop-IP6610-T-1ETH-RT-pp-G DS1 WAN port and 1 Ethernet port w/ Router & Bridge function

Loop-IP6610-T-4ETH-RT-pp Loop-IP6610-T-4ETH-RT-pp-G DS1 WAN port and 4 Ethernet ports w/ Router & Bridge function

For DS1 WAN port with In-band Management

Loop-IP6610-T-IM-1ETH-BR-pp Loop-IP6610-T-IM-1ETH-BR-pp-G DS1 WAN port w/ In-band management and 1 Ethernet port w/ Bridge function only

Loop-IP6610-T-IM-4ETH-BR-pp Loop-IP6610-T-IM-4ETH-BR-pp-G DS1 WAN port w/ In-band management and 4 Ethernet ports w/ Bridge function only

Loop-IP6610-T-IM-1ETH-RT-pp Loop-IP6610-T-IM-1ETH-RT-pp-G DS1 WAN port w/ In-band management and 1 Ethernet port w/ Router & Bridge function

Loop-IP6610-T-IM-4ETH-RT-pp Loop-IP6610-T-IM-4ETH-RT-pp-G DS1 WAN port w/ In-band management and 4 Ethernet ports w/ Router & Bridge function

For DTE WAN port

Loop-IP6610-DTE-1ETH-BR-pp Loop-IP6610-DTE-1ETH-BR-pp-G DTE WAN port and 1 Ethernet port w/ Bridge function only

Loop-IP6610-DTE-4ETH-BR-pp Loop-IP6610-DTE-4ETH-BR-pp-G DTE WAN port and 4 Ethernet ports w/ Bridge function only

Loop-IP6610-DTE-1ETH-RT-pp Loop-IP6610-DTE-1ETH-RT-pp-G DTE WAN port and 1 Ethernet port w/ Router & Bridge function

Loop-IP6610-DTE-4ETH-RT-pp Loop-IP6610-DTE-4ETH-RT-pp-G DTE WAN port and 4 Ethernet ports w/ Router & Bridge function

Accessories

User’s Manual (All User’s Manuals are RoHS compliant)

Loop-IP6610-UM Loop-IP6610-UM User’s Manual (paper hard copy-optional). A CD

version of the manual is already included as

standard equipment.

Power Cord (All power cords are RoHS compliant)

Loop-ACC-PC-USA Loop-ACC-PC-USA AC power cord for Taiwan/America

Loop-ACC-PC-EU Loop-ACC-PC-EU AC power cord for Europe

Loop-ACC-PC-UK Loop-ACC-PC-UK AC power cord for UK

Loop-ACC-PC-AUS Loop-ACC-PC-AUS AC power cord for Australia

Loop-ACC-PC-CH Loop-ACC-PC-CH AC power cord for China

Tray

81.TRAY19.000 81.TRAY19.000-G 19” tray. one tray for two units

Software (All software are RoHS compliant)

Loop-IP6610-UPGR-RT Loop-IP6610-UPGR-RT Activation code for upgrading Bridge function to Router function

NOTE: When ordering activation code for existing units, please include the units' serial numbers on the order form.

􀂄 where pp is used to select power supply:

pp = Description Note

AC Fixed AC power supply (90~264 Vac)

DC Fixed DC power supply (For 24Vdc and 48Vdc: 20-60 Vdc)

DC24 Fixed DC power supply (For 24Vdc: 18-36 Vdc)

DC48 Fixed DC power supply (For 48Vdc: 36-72 Vdc)

For AC choose an appropriate

power cord

􀂄 where DTE is used to select DTE WAN port:

DTE = Description Note

22 V.35 WAN port with DB25 connector

33 EIA530 WAN port with DB25 connector

44 X.21 WAN port with DB15 connector

55 RS232 WAN port with DB25 connector

66 V.36 / RS449 WAN port via DB25P to DB37S (1-feet) conversion cable

77 RS422 / V.11 WAN port with DB25 connector




Loop-IP6610 Router Box Product Specification

E1 Line Interface

Line Rate 2.048 Mbps ± 50 ppm Connector BNC (75 ohm), RJ48C (120 ohm)

Data Rate n x 64Kbps (n=1 to 31) Output signal ITU G.703

Line Code AMI/ HDB3 Electric 75 ohm/ 120 ohm twisted pair

Input Signal ITU G.703

Jitter ITU G.823

DS1 Line Interface

Line Rate 1.544 Mbps ± 32 ppm Framing D4/ESF

Line Code AMI/B8ZS Connector DA15S or RJ48C

Input Signal DSX-1 0dB to –30dB w/ALBO Output Signal DSX-1 w/0, -7.5, -15 dB LBO

Jitter AT&T TR 62411 Pulse Template AT&T TR 62411

Data Rate n x 64Kbps (n=1-24) Surge Protection FCC Part 68 Sub Part D

DTE Interface- V.35 DTE Interface-V.36

Connector DB25 Connector DB25

Data Rate Up to 8.192 Mbps Data Rate Up to 7.143 Mbps

DTE Interface- EIA530 DTE Interface-RS232

Connector DB25 Connector DB25

Data Rate Up to 8.192 Mbps Data Rate Up to 128 Kbps

DTE Interface- X.21 DTE Interface-RS449

Connector DB15 Conversion

Cable

DB25 to DB37 conversion cable

Data Rate Up to 8.192 Mbps Data Rate Up to 8.192 Mbps

LAN Interface WAN Interface

􀁹 Support SNMP management 􀁹 Layer 2 protocol: HDLC, PPP, Frame Relay, Cisco

􀁹 Physical interface 10/100 Mbps compatible HDLC

􀁹 RJ45 connector 􀁹 Single WAN port

􀁹 One or four Ethernet ports 􀁹 Up to 10 Frame Relay PVCs

􀁹 Embedded Ethernet switch for four Ethernet ports 􀁹 Remote bridge support (padding/ un-padding Ethernet

CRC checksum)

􀁹 In-band management channel

Physical Interface Power Interface

􀁹 WAN: E1/FE1, DS1/FDS1 (Integrated CSU/DSU) 􀁹 AC : Full range support 100 – 240V

DTE (V.35/ V.36/ X.21/ RS232/ EIA530/ 􀁹 DC: 24V or 48V support

RS449) 􀁹 Power consumption: Max. 6 watt

􀁹 LAN: 10/100 Base-T Ethernet port

− Speed auto-sensing

− Half/full duplex auto-negotiation

− Auto MDI-X

Routing Protocol NAT

􀁹 Static Route 􀁹 NAT

􀁹 RIP v1 & v2 􀁹 NAPT

DHCP Port Forwarding

􀁹 DHCP server support for LAN users (RFC2131,

RFC2132

􀁹 Static/dynamic address/port forwarding table for NAT and

NAPT

􀁹 BOOTP compatible

SNTP Access Control & Firewall

􀁹 SNTP client support 􀁹 Packet filtering based on

􀁹 Sync with up to 4 time servers Inbound/outbound direction

Source/destination IP address

Protocol types (ICMP, TCP, UDP)

Port number rang

􀁹 Up to 4 control lists

Remote Bridge Management

􀁹 PPP/BCP 􀁹 SNMP v1/v2

􀁹 User configurable aging time 􀁹 MIB: MIBII,Transmission MIB

􀁹 Up to 16K MAC Table 􀁹 Telnet

􀁹 Cisco ISL packet transparent 􀁹 HTTP Web-based managesment

􀁹 VLAN packet transparent 􀁹 Serial console with CLI

􀁹 VLAN ID mapping (802.1q) 􀁹 TFTP firmware download

􀁹 Bridge with IP 􀁹 Configuration upload/ download

􀁹 802.1w Rapid Spanning Tree Protocol 􀁹 SNMP/ Telnet via data channel/ In-band Management channel

Administration & Diagnostics Console Port

􀁹 Ping Connector

􀁹 Trace route Electric

􀁹 Loopback Protocol DB9S

􀁹 Telnet

􀁹 SSH

RS232

CLI

Diagnostics Test

Loopbacks For E1/ DS1: Line Loopback, Payload Loopback, Local Loopback, Router to Line Loopback

For DTE: DTE to DTE Loopback

Test Pattern For E1: 15-bit PRBS, 3-in-24, 1-in-8, 2-in-8, 1:1

For DS1: 20-bit QRSS, 3-in-24, 1-in-8, 2-in-8, 1:1

Idle Channel For E1: Use of idle channel to perform PRBS diagnostic test

For DS1: Use of idle channel to perform QRSS diagnostic test

Performance Monitor

Performance Store Last 24 hours performance in 15-minute intervals and last 7 days in 24-hour summary line, user, and

remote site

Performance Reports Date & Time, Errored Second, Unavailable Second, Bursty Errored Second, Severe Errored Second,

Controlled Slip Second, and Loss of Frame Count

Alarm History Date & Time, Alarm Type, and Location

Alarm Queue Maximum 40 alarm records which record the latest alarm type, location, and date & time

Physical

Dimensions 210 x 41.5 x 140 mm. (WxHxD)

Temperature 0 -50°C

Humidity 0-95% RH (NON-CONDENSING)

Mounting Desk-top stackable, wall mount

Compliance

EMC FCC15 Class A EN300 386

Safety UL60950 ETL/ETLC, IEC60950 CB

FCC FCC68

OLD part #s click here to see new part numbers

Model Description
Loop-IP 6610-E75-1EH-BR-pp Bridge function with 75 ohm E1 and 1-port Ethernet
Loop-IP 6610-E75-4EH-BR-pp Bridge function with 75 ohm E1 and 4-port Ethernet switch
Loop-IP 6610-E75-1EH-RT-pp Router & Bridge function with 75 ohm E1 and 1-port Ethernet
Loop-IP 6610-E75-4EH-RT-pp Router & Bridge function with 75 ohm E1 and 4-port Ethernet switch
Loop-IP 6610-E120-1EH-BR-pp Bridge function with 120 ohm E1 and 1-port Ethernet
Loop-IP 6610-E120-4EH-BR-pp Bridge function with 120 ohm E1 and 4-port Ethernet switch
Loop-IP 6610-E120-1EH-RT-pp Router & Bridge function with 120 ohm E1 and 1-port Ethernet
Loop-IP 6610-E120-4EH-RT-pp Router & Bridge function with 120 ohm E1 and 4-port Ethernet switch
Loop-IP 6610-T-1EH-BR-pp Bridge function with T1 and 1-port Ethernet
Loop-IP 6610-T-4EH-BR-pp Bridge function with T1 and 4-port Ethernet switch
Loop-IP 6610-T-1EH-RT-pp Router & Bridge function with T1 and 1-port Ethernet
Loop-IP 6610-T-4EH-RT-pp Router & Bridge function with T1 and 4-port Ethernet switch

" where pp is used to select power supply:
pp = Description
AC Fixed AC power supply
DC Fixed DC power supply (For 24Vdc and 48Vdc: 20-60 Vdc)
DC24 Fixed DC power supply (For 24Vdc: 18-36 Vdc)
DC48 Fixed DC power supply (For 48Vdc: 36-72 Vdc)
