Etherpath RS232 RS422 RS485 to10/100BaseT
TCP-IP ICMP HTTP DHCP converter

IP Telnet server for remote RS232 RS422 RS485 serial ports

The ETHERPATH  is a LAN to Serial Device Server for Ethernet to serial applications. The Device features full serial handshake signals and 10/100BaseT network interface. This unit makes it easy to network enable any device that has a serial port.

RS232 RS422 RS485 to Ethernet LAN 10/100BaseT TCP-IP ICMP HTTP DHCP converter


  • Configuration via Web Browser, Telnet, or direct connection
  • EtherModem® modem emulation technology!
  • SNMP functionality
  • Reverse Telnet, Telnet Client or Server capability
  • EtherPath RS-232 server connection over Ethernet LAN
  • RS-232 or RS-422 or RS-485 (2 & 4-wire) interface
  • Speeds up to 230 Kbps
  • DIN-rail mountable (along with power supplies)
  • Use to access remote serial devices via LAN
  • Use on the LAN or via Routers
  • Ideal for Internet or Intranet
  • It's an economical async "Ethernet modem"
  • Allow In-band access to equipment management ports
  • Compatible with popular "port redirector" software
  • RS-232 interface supports true control lead handshaking
  • EtherPath Redirectserver-locked version includes FREE Tactical Software port redirector software


DESCRIPTION

The EtherPath is a versatile single port serial server for Ethernet LAN/WAN's. It allows a "remote" serial port for any LAN connected workstation via telnet or port-redirector software. The EtherPath also connects any two async serial devices through a LAN, even via routers, when used in client-server or EtherModem mode. The EtherPath is often used with serial devices such as remote data collection terminals, DCB multiplexers and Access Switches, SCADA, building automation equipment, UPS's, bar code scanners, or climate control devices. It is used to connect serial management ports directly to an Ethernet network for "in-band" control of "out-of-band" devices. For this application, simply telnet to the serial management port of the connected device or use inexpensive (or free) port redirector software.

The EtherPath uses the TCP/IP protocol, allowing data connection across routed or switched LAN/WAN networks as well as connections on a local network.

The EtherPath supports serial interface speeds up to 230 Kbps. The EtherPath can automatically open connections when it powers up (Nailed-Up mode), eliminating the need for a manual request. Full flow controls (RTS/CTS) and Xon/Xoff are also supported.

The EtherModem mode allows a serial device to treat the Etherpath as if it was a true "Ethernet Modem", using normal modem control and response strings such as "ATD", "ATE", +++, etc. This allows a single EtherPath to connect to multiple remote servers (either EtherPaths or telnet servers) under control of the attached serial device.

Reverse Telnet (Telnet Client) mode allows telnet functionality to be added to serial devices.

If in point to point client server mode and the "nailed" connection is lost, the EtherPath automatically reconnect when a path again becomes available.

The EtherPath can be managed directly through its physical port as well as remotely from other network locations. Remote configuration is supported using TCP/IP (telnet) or with the easy web browser interface. Security lists are provided for management security.

Telnet to the EtherPath or use COM: port redirector software on UNIX (SCO, FreeBSD, AIX, LINUX) or Windows machines, making the EtherPath a remote serial port for a PC or a work station. The EtherPath is an ideal remote access device for maintaining and controlling remote devices with RS-232 serial control ports. When used with the DCB Access Switch, the single serial port can be expanded to 152 ports including remote AC power control.

DCB recommends Serial/IP port redirector for Windows machines. It's produced by Tactical Software and a 30 day demo can be downloaded from this link. After you've tried it, you can purchase the permanent license authorization from us for 86.00 $US.

OEM manufacturers can design the EtherPath into their products or use it as an add-on method to gain ethernet connectivity.. DCB supplies the EtherPath to many other companies and can provide custom firmware for specific applications.


EtherPath Serial Server

General

Physical/Electrical



TYPICAL APPLICATIONS

Ethernet enable dumb RS-232 devices for connection via a LAN or between LAN's using routers

Access remote equipment management ports through a LAN

Control multiple remote serial ports and to remotely control power to servers and other devices with the DCB Access Switch

Provide remote PC serial ports by using port redirector software

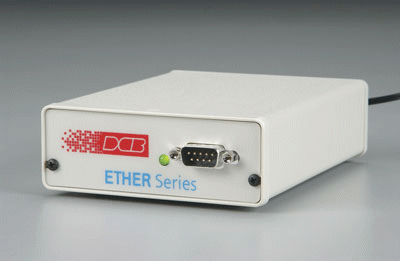

Front view of DCB EtherPath SS-1
RS-232 Connector

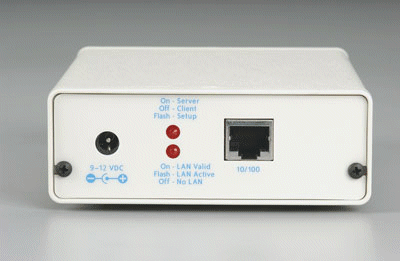

Rear view of DCB EtherPath SS-1
LAN Connectors


see

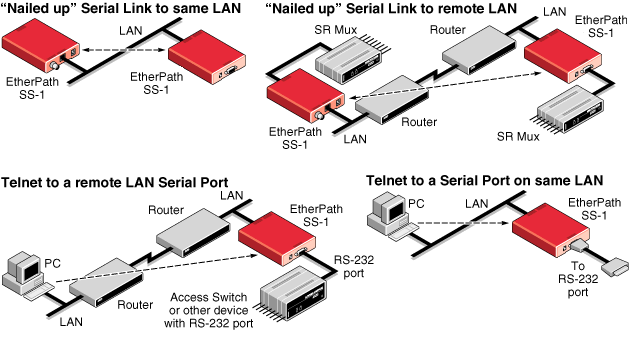

Using the Etherpath with PC and Unix Port Redirection

see manual

NewEtherPath Redirect® server-locked version includes Serial/IP® redirector software!


SS-1 EtherPath® Single Port Ethernet Serial Server (w/ 120VAC power supply)
RD-1 EtherPath Redirect® Single Port Ethernet Serial Server includes server-locked Serial/IP (w/ 120VAC power supply)
SI Serial/IP Port Redirector Software for Windows
Various Power Supply Options  See Datasheet
