Patton CopperLink 2158
12.5-Mbps Ethernet Extender

The CopperLink Ethernet Extenders Patton 2158 Local and Patton 2158 remote Patton 2158 2 pack will auto-sense and configure for 10Base-T or 100Base-T as well as full or half-duplex Ethernet operation.


Patton 2158 Local and Patton 2158 remote
Patton 2158 2 pack
CopperLink 12.5-Mbps Ethernet Extender
Take your network connections faster and farther over existing voice-grade wire with the Patton Model 2158 CopperLink Ethernet Extender!


these models has been discontinued

view new units





  2158/L/120 - 2158/R/UI  -  2158/R/UI  -  2158/120-2PK  -  2158RC/L  -  2158RC/R

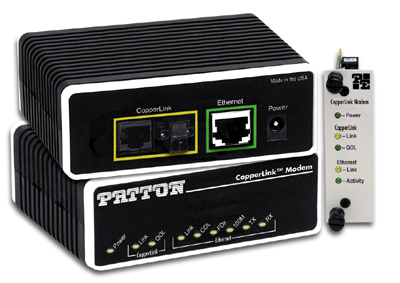

Model 2158 standalone unit & rack card
also see
Patton 2168
2168/120/2pak

CopperLink 16.67-Mbps Multi-Rate Ethernet Extender

Multi-rate high speed Ethernet extension over
voice-grade wire or Cat. 3/4/5/6.

  Features & Benefits
  • High-speed full-duplex 12.5 Mbps communications link
  • Extends Ethernet connections up to 4,500 ft. (1,372 m)
  • Easy 2-wire CopperLink connection via built-in RJ-45 or 2-position terminal block
  • Passes higher layer protocols and supports 802.1Q (VLAN tagging)
  • Automatic learning and aging address table
  • Five LEDs monitor power, CopperLink link and status, Ethernet link and activity
  • Auto-sensing 10 or 100Base-T and full or half-duplex Ethernet operation
  • No configuration required!

Overview


The Patton CopperLink Ethernet Extender offers one of the most efficient, reliable, and cost-effective solutions for connecting peered 10/100Base-T Ethernet LANs; reaching remote PCs and equipment; or delivering last-mile ISP services—all at 12.5 Mbps! The Patton Model 2158 offers premium performance over your existing voice-grade telephone wire, eliminating the cost of installing new LAN grade cable or expensive fiber.

CopperLink Ethernet Extenders are compact, easy to install, and transparent to higher layer protocols. Simply connect the network equipment to the shielded Ethernet RJ-45F jack, the twisted-pair telephone wire to the CopperLink RJ-45F jack or terminal block, the external power supplies to the units and an appropriate power source, and you're ready to operate. The CopperLink Ethernet Extenders will auto-sense and configure for 10Base-T or 100Base-T as well as full or half-duplex Ethernet operation. No configuration is required!

Whether you are looking to make your network connections go farther and faster, increase the efficiency of your existing wiring infrastructure, or just simply extending your LAN, Patton's CopperLink Ethernet Extender is one of the most simple and cost effective solutions around!

Ethernet Extension Application
Used in pairs, the Patton 2158 establishes a high-speed 12.5 Mbps communication link inter-connecting two geographically separated LANs. Operation is simple: packets destined for the remote LAN are sent transparently, at full line rate, to the peered LAN. The Patton Model 2158 can also be used to reach remote PCs and other equipment and for delivering last mile ISP services.

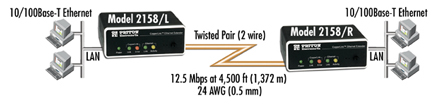

Ethernet Extension Application drawing

Back-to-Back Extension Application
Use the Patton Model 2158 units in a back-to-back configuration, using an Ethernet crossover cable, to double the length of your high-speed Ethernet connection!

Back-to-Back application drawing


Related Information

Tech Notes (PDF) -- Requires Adobe Acrobat to view
Model 2158 Application Note: Suitability Guidelines

Manuals (PDF)
Model 2158 & 2158RC Manual


Ordering Information

Note: When ordering standalone units, we recommend that you order the 2158 in sets since one 2158/L (Local) and one 2158/R (Remote) is required for each link.

Patton 2158/L: Local CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; No Power Supply
Patton 2158/R: Remote CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; No Power Supply
Patton 2158/L/120: Local CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; 120 VAC
Patton 2158/R/120: Remote CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; 120 VAC
Patton 2158/L/UI:* Local CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; 100–240 VAC
Patton 2158/R/UI:* Remote CopperLink High Speed Ethernet Extender, RJ-45F and Terminal Block; 100–240 VAC
Patton 2158-2PK: CopperLink High Speed Ethernet Extender Set (Local and Remote); No Power Supply
Patton v2158/120-2PK: CopperLink High Speed Ethernet Extender Set (Local and Remote); 120 VAC
Patton 2158/UI-2PK:* CopperLink High Speed Ethernet Extender Set (Local and Remote); 100–240 VAC

*Please specify country-specific power cords


see other Copperlink part numbers

NOW AVAILABLE!
2158RC/L: Local CopperLink High Speed Ethernet Extender Rack Card; RJ-45F and Terminal Block
2158RC/R: Remote CopperLink High Speed Ethernet Extender Rack Card; RJ-45F and Terminal Block

The Model 2158RC rack cards are compatible with Patton's Model 1001R high-density Telco rack system.


Specifications

CopperLink Interface: RJ-45 (pin 4=TIP; pin 5=RING) and two-position terminal block (supports 19–26 AWG)
Ethernet Interface: 8-position shielded RJ-45. Auto-sensing 10/100Base-T with half or full-duplex operation
Protocol: Transparent to high layer protocols. Supports 802.1Q VLAN tagging
Transmission: CopperLink line rate: 12.5 Mbps; Data rate: 10 Mbps full-duplex
Surge Supression: CopperLink maximum current surge: 20kA (8/20_s) gas tube
Front Panel Indicators: Power, CopperLink Link and Error, Ethernet Link and Activity status.
External Power Supply Options:
• AC: 120 VAC and Universal Power Supply (100–240 VAC)
• DC: -48 VDC, -24 VDC, and -12 VDC (optional upon request)
Compliance: FCC Part 15 Class A; EMC Directive 89/336/EEC, Low
Voltage Directive 73/23/EEC; CE Mark
Temperature: 32 to 122°F (0 to 50°C)
Altitude: 0–15,000 ft (4,572 m)
Humidity: Up to 90% non-condensing
Dimensions:
• Standalone: 1.5H x 4.13W x 3.75D in. (3.81H x 10.5W x 9.53D cm)
• Rack card: 3.0 H x 0.83 W x 7.84 D in. (7.6 H x 2.1 W x 19.9 D cm)
Weight:
• Standalone: 0.4 lbs (0.18 kg) without power supply
• Rack card: 0.3 lbs (0.14 kg)
