• Dense 1U rack-mount package, NEBS compliant member of Magnum 6K family
• Modular slot for combinations of 100Mb, 10 Mb, Gigabit, and more 10/100 copper ports
• Non-blocking wire speed performance on all ports, 802.1p QoS prioritization

• Options include -48VDC, 24VDC, 125VDC power, dual source, or AC,

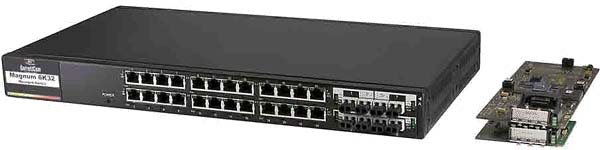

Magnum 6K32 Switch 24 Ports:


The Magnum™ 6K32 Managed Switch offers up to 32-ports in a 1U rackmount package, ideal for heavy duty Carrier Class and Industrial applications that require high-port density to save in cost and rack space. The 6K32 provides 24 fixed 10/100 Mb copper ports plus a modular slot. The modular slot provides the flexibility to configure some 100 Mb fiber ports, and/or some 10 Mb fiber ports, and/or one or two Gigabit ports, or some more copper ports. Standard GBIC ports can be configured for a variety of Gigabit fiber cabling types and distances.

Magnum 6K32 Managed Switches come with LAN software support including SNMP management, SNMPc™ and Openview™ for Windows, web management, redundant LANs support, and many network management security features. See the Managed Networks Software (MNS-6K) datasheet for additional details on the comprehensive set of software packages and options that are used across the Magnum 6K Switches family of products.

Magnum 6K32s are ideal for building a switched network infrastructure when used in applications connected to communications computers, routers, hubs, or other switches. Designed for use in Carrier Class and Industrial networks with segments requiring Gigabit backbone interconnections among network centers, the Magnum 6K32 is easy to install and operate. Addresses of attached nodes are automatically learned and maintained, adapting the switching services to network changes and expansions to provide plug-and-play operation.

Magnum 6K32 Managed Switches have rugged metal cases and auto-ranging power supplies for operation with standard AC power worldwide. Internal DC power supplies are optional. The 6K32s and all other Magnum products are designed and manufactured in the USA and backed by a three year warranty.

GarrettComm 6K32 Data Sheet

Ordering Part #'s

Magnum 6K32R “Reverse” model, same as Model 6K32 except user ports and the power input connectors are in the rear. Two sets of LEDs (both rear and front) provide duplicate status data for viewing from either side.

6KP8-MTRJ SFF Fiber module for 6K Switches, w/eight 100 Mb 2km multi-mode FX MTRJ connectors
6KP8-45MT “4+4” module for 6Ks, w/four 10/100 RJ-45 and four 100 Mb 2km multi-mode FX MTRJ connectors
6KP8-SLC SFF Fiber module for 6K Switches, w/eight 100 Mb 15km single-mode FX LC connectors
6KP8-RJ45 TP Module for 6K32 switches, w/eight 10/100 Mb auto-negotiating RJ-45 ports
6KP8-45SLC “4+4” module for 6Ks, w/four 10/100 RJ-45 and four 100 Mb15km single-mode FX LC connectors
6KP6-RJMSC “4+2” module for 6Ks, w/four 10/100 RJ-45 and two 100 Mb 2km multi-mode FX SC connectors
6KP6-RJSSC "4+2” module for 6Ks, w/four 10/100 RJ-45 and two 100 Mb 20km single-mode FX SC connectors
6KP6-RJSSCL “4+2” module for 6Ks, w/four 10/100 RJ-45 and two 100 Mb 40km single-mode FX SC connectors
6KP6-RJ10ST “4+2” module for 6Ks, w/four 10/100 RJ-45 and two 10 Mb 2km FL ST connectors
6KP6-RJMST “4+2” module for 6Ks, w/four 10/100 RJ-45 and two 100 Mb 2km multi-mode FX ST connectors
6KP4-FXSC “2+2” 100 Mb Fiber module for 6K Switches, w/four 100 Mb FX SC connectors.
6KP4-FXST “2+2” 100 Mb Fiber module for 6K Switches, w/four 100 Mb 2km FX ST connectors.
6KP4-F10ST “2+2”10 Mb fiber module for 6K Switches, w/four 10Mb 2km FL ST connectors


Note: Several other Port Module types are available. Request Quote.

GBPM-2OTX Two-port Gigabit 6K module for 6K32 switches, provides two GBIC open transceiver port for a user selectable GBIC transceiver module.

GBIC-LXSC10 GBIC transceiver module for use in GBPM-COTX, one LX port with single-mode SC 10Km
 GBIC-SXSC GBIC transceiver module for use in GBPM-COTX, one SX port with multi-mode SC fiber connector

Note: Single-mode GBICs are available at 10Km, 25Km, 40Km, and 70Km.

6K8-BLNK Blank cover for slot opening in a Magnum 6K32 or 6K32R chassis
