GarrettCom Magnum 6K25
Fiber Switch

  The Magnum 6K25 Fiber Switches are provided with LAN software support including SNMP management control via command line interface, RMON, SNMPc™ and Openview™ for Windows, and Port Security support.

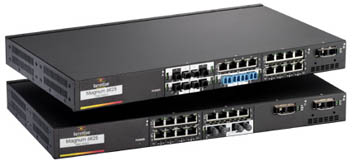

   Magnum 6K25 Managed Fiber Switch 4 Modular Slots for User-selection of 100 Mb 10 Mb Gigabit Fiber Ports 10/100 copper ports

  • Provides modular slots for user selection of 100Mb and 10Mb fiber ports, Gigabit fiber ports, and 10/100 copper ports, up to 25 total ports in 1U package (view the Module Insertion Guide)
  • NEBS Level 3 and ETSI Certified (NEBS and ETSI FAQ)
  • Wide selection of fiber ports, features Small Form Factor (SFF) connectors, both MT-RJ and LC
  • High-performance switching, non-blocking on all ports, 802.1p QoS
  • Comprehensive Magnum MNS-6K software includes: RMON, SNMP, Telnet, IGMP, VLANs (Port-based and Tag-based), GVRP, Port-mirroring, CLI, Spanning Tree, Password Security, Port Security, SNTP, Event Log, BootP, DHCP
  • Manages redundant rings with the S-Ring™ software product
  • Power input choices include: -48 VDC, 24 VDC, AC, 125 VDC, dual-source DC "Reverse" rack-mount, ETSI, and 23" Telco brackets optional
  • Meets IEEE P1613 Environmental Standard for Electric Power Substations
  • Industrial option including Conformal Coating for humid environments




GarretCom Magnum 6K25 Switch:


Magnum 6K25 Managed Fiber Switches provide the flexibility of both 100 Mb fiber and copper ports,10 Mb fiber and copper ports, as well as Gigabit ports and management software. Featuring SFF (Small Form Factor) 100 Mb fiber port connectors, high-capacity high-performance fiber switching services are delivered in a robust 1U rack-mount package designed for the most demanding Industrial and Carrier Class applications.

The port modules allow user-selection of mixed-media fiber (all connector types, multi- and single-mode) and 10/100 Mb RJ-45 auto-negotiating ports. Standard GBIC ports can be configured for a variety of Gigabit fiber cabling types and distances.

High performance hardware features include non-blocking speed on all ports and 802.1p QoS Traffic Prioritization. Magnum 6K25s are “plug and-play” ready for use as backbone switches where a mix of bursty data traffic and priority streaming traffic for VoIP and audio/video applications is present.

The Magnum 6K25 Switches enhance LAN flexibility by allowing a combination of mixed-media modules and port types. Magnum 6K25s
are ideal for building a switched fiber network infrastructure when used in applications connected to routers, hubs, or other switches. Designed for use in Industrial networks and Plantwide LAN centers with numerous segments requiring Gigabit backbone interconnections among network centers, the Magnum 6K25 is easy to install and operate. Addresses of attached nodes are automatically learned and maintained, adapting the switching services to network changes and expansions to provide plug and-play operation.

Magnum 6K25 Managed Fiber Switches have rugged metal cases and auto-ranging power supplies for operation with standard AC power
worldwide. Internal DC power supplies are optional. The 6K25s and all other Magnum products are designed and manufactured in the USA and backed by a three year warranty.

GarrettComm 6K25 Data Sheet

Part #'s

MAGNUM 6K25 (10/100/1000) GarrettComm MANAGED FIBER SWITCHES
Magnum 6K25 Magnum 6K25 Managed Fiber Switch, base unit. May be configured with a selection of 10/100/1000 6K fiber and copper port connector types, 25 total ports max. Wire speed filtering and forwarding across all ports, 802.3x flow control, 802.1p priority packet processing, self-learning 4K-node address table, large 240KB packet buffers for 10/100 and 120KB for 1000Mb. Plug-and-play switching, front-mounted LEDs, internal auto-ranging AC power supply, 19" rack-mounting brackets. For licensed management software packages, see below.

Magnum 6K25R “Reverse” model, same as Model 6K25 except user ports and the power input connectors are in the rear. Two sets of LEDs (front and rear) provide status data display viewing from both sides.

Magnum 6K25-24VDC Same as Model 6K25 except the power input is 24VDC.
Magnum 6K25R-24VDC “Reverse” model, same as Model 6K25-24VDC except user ports and the power input connectors are in the rear. Two sets of LEDs (front and rear) provide status data display viewing from both sides.
Magnum 6K25-125VDC Same as Model 6K25 except the power input is 125VDC (range of 88 to 160VDC).
Magnum 6K25R-125VDC “Reverse” model, same as Model 6K25-125VDC except user ports and the power input connectors are in the rear. Two sets of LEDs (front and rear) provide status data display viewing from both sides.
Magnum 6K25-48VDC Same as Model 6K25 except the power input is -48VDC.
Magnum 6K25R-48VDC “Reverse” model, same as Model 6K25-48VDC except user ports and the power input connectors are in the rear. Two sets of LEDs (front and rear) provide status data display viewing from both sides.

6K25 (10/100/1000) PORT MODULES
Configuration options: Each Magnum 6K25 and 6K25R base unit has 4 port module slots. Three (A,B & C) may be any one of the modules below, one (slot D) may only be a Gigabit module. Select up to four modules per base unit for factory configuration.

6KP8-MTRJ SFF Fiber module for 6K25 Switches, w/ eight 100Mb 2km multi-mode FX MT-RJ connectors
6KP8-MLC SFF Fiber module for 6K25 Switches, w/ eight 100Mb 2km multi-mode FX LC connectors
6KP8-SLC SFF Fiber module for 6K25 Switches, w/ eight 100Mb 15km single-mode FX LC connectors
6KP4-FXST "2+2" 100Mb Fiber module for 6K25 switches, w/ four 100 Mb 2km FX ST connectors
6KP4-FXSC "2+2" 100Mb Fiber module for 6K25 switches, w/ four 100 Mb 2km FX SC connectors
6KP4-F10ST "2+2" 10 Mb Fiber module for 6K25 switches, w/ four 10 Mb 2km FL ST connectors
6KP4-FLSTFX "2+2" ST Fiber module for 6K25 switches, w/ two 10 Mb FL and two 100Mb FX ports

6KP8-RJ45 TP module for 6K25 switches, w/ eight 10/100Mb auto-negotiating RJ-45 ports

6KP8-45MT "4+4" module for 6K25s, w/ four 10/100 RJ-45 and four 100Mb 2km mm FX MTRJ connectors
6KP8-45MLC "4+4" module for 6K25s, w/ four 10/100 RJ-45 and four 100Mb 2km mm FX LC connectors
6KP8-45SLC "4+4" module for 6K25s, w/ four 10/100 RJ-45 and four 100Mb 15km sgl.m FX LC connectors

6KP6-RJMST "4+2" module for 6K25s, w/ four 10/100 RJ-45 and two 100Mb 2km mm FX ST connectors
6KP6-RJMSC "4+2" module for 6K25s, w/ four 10/100 RJ-45 and two 100Mb 2km mm FX SC connectors
6KP6-RJSSC "4+2" module for 6K25s, w/ four 10/100 RJ-45 and two 100Mb 20km sgl.m FX SC connectors
6KP6-RJSSCL "4+2" module for 6K25s, w/ four 10/100 RJ-45 and two 100Mb 40km sgl.m FX SC connectors
6KP6-MT10ST "4+2" module for 6K25s, w/ four 100Mb MTRJ fiber and two 10 Mb 2km FL ST connectors
6KP6-RJ10ST "4+2" module for 6K25s, w/ four 10/100 RJ-45 and two 10 Mb 2km FL ST connectors

GBPM-DOTX One D-slot Gigabit 6K module for 6K25 switches, uses one 6K25 D-slot and provides one GBIC open transceiver port for a user-selectable GBIC Transceiver module.
GBPM-COTX One A, B, or C-slot Gigabit 6K module for 6K25 switches, uses one 6K slot and provides one GBIC open transceiver port for a user-selectable GBIC Transceiver module. Same as GBPM-DOTX D-slot but includes A,B,C-sized front-panel sheet metal cover.
chg GBIC-SXSC GBIC Transceiver module for use in GBPM-xOTX, one 1000BASE-SX port with mm SC fiber connector.
chg GBIC-LXSC10 GBIC Transceiver module for use in GBPM-xOTX, one 1000BASE-LX/LH port 1310nm,sgl.m SC 10Km.
new GBIC-LXSC25 GBIC Transceiver module for use in GBPM-xOTX, one 1000BASE-LX/LH port 1310nm,sgl.m SC 25Km.
new GBIC-ZXSC40 GBIC Transceiver module for use in GBPM-xOTX, one 1000BASE-ZX port 1550nm,sgl.m SC 40Km.
new GBIC-ZXSC70 GBIC Transceiver module for use in GBPM-xOTX, one 1000BASE-ZX port 1550nm,sgl.m SC 70Km.
new GBIC-TP GBIC Transceiver module for use in GBPM-xOTX, one 802.3ab 1000BASE-T port, RJ-45 connector.

6KM-BLNK Blank cover for one 6K A,B,C module slot opening in a Magnum 6K25 or 6K25R chassis

MAGNUM 6K MANAGED NETWORK SWITCH SOFTWARE and SOFTWARE OPTIONS

chg MNS-6K license MNS-6K, licensed software for use on Magnum 6K Switches, license costs included with each 6K25 unit. Release 2.4 Includes SNMP Switch Management with secure access control, RMON, CLI, Port Security; Port Mirroring; Port Settings Control; Link-Loss-Learn(TM), Telnet, TFTP, FTP support, Spanning Tree Protocol, multi-level QoS, Port- and tag-based VLANs, GVRP, IGMP Snooping, SNMPc GUI support; Event Log; SNTP client for time-of-day; BootP and DHCP client for IP configuring, and password security. Supplied and updated via Internet and GCI FTP Server.

new S-Ring key S-Ring(TM) Redundancy Manager licensed software for redundant ring management in Industrial Ethernet LANs. Extends standard Spanning Tree Protocol (STP) to enable faster ring fault recovery and larger ring configurations. One S-Ring key is for licensed use on one 6K Switch. S-Ring supports multiple rings on one 6K Switch, with any standard Ethernet hubs or switches used to form the ring or rings.
CONSOLE CBL Console attachment cable, serial "Null Modem" (aka X-modem) cable with DB-9 connectors.
new CONSOLE USB Console attachment cable, serial "Null Modem"(aka Xmodem) cable with one DB9 for the managed switch and a USB connector to a PC.

NETWORK MANAGEMENT SOFTWARE, 3rd Party
NMS Network Management Software, PC / Windows-based "SNMPc" product from Castle Rock Computing.

FIBER CABLES FOR CHANGING PORT CONNECTOR TYPES

FPC-MSCMT Fiber port-conversion cable, multi-mode SC (with adapter) and MTRJ, one meter length.
FPC-MSTMT Fiber port-conversion cable, multi-mode ST (with adapter) and MTRJ, one meter length.
FPC-MSCLC Fiber port-conversion cable, multi-mode SC (with adapter) and LC, one meter length.

FPC-SSCMT Fiber port-conversion cable, single-mode SC (with adapter) and MTRJ, one meter length.
FPC-SSCLC Fiber port-conversion cable, single-mode SC (with adapter) and LC, one meter length.
