LS101 RS232/485 to LAN
10/100BaseT
converter

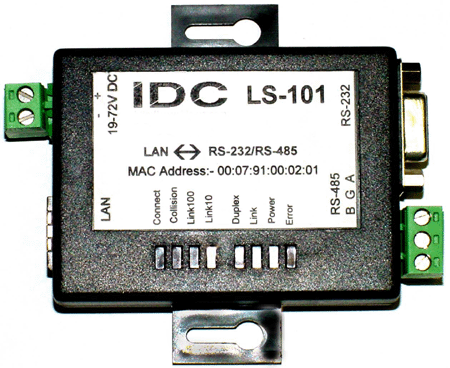

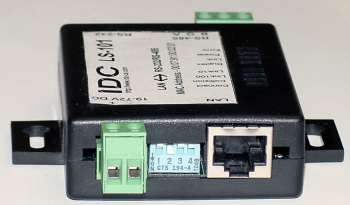

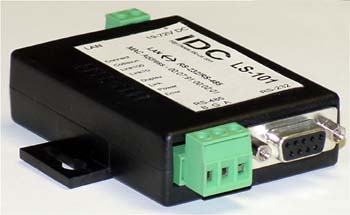

The LS-101 is a LAN to Serial Device Server for Ethernet to serial applications. The Device features full serial handshake signals and 10/100BaseT network interface. LS-101 makes it easy to network enable any device that has a serial port.

also see other LAN Ethernet converter to RS232 RS485 RS422 ports




  • FEATURES for the LS-101

Internet enable any device that has RS 232/RS485 port

Easy configuration through software menu

Automatic 10/100BaseT selection

"AT" Commands

Password security. Communicates only with trusted system

Size 2 1/4" x 3 1/4" x 7/8"



LS101 SPECIFICATIONS



APPLICATIONS

Protocols

TCP/IP, DHCP, ICMP and ARP, HTTP

SCADA

Network Interface

10/100 RJ45, Half/Full Duplex

Remote Monitor and Control

Serial Interface

RS232 DB9 only (OEM RS485 optional)

Vending Machines

Data Rates

1200,2400,9600,19200,38400

Energy Management



57600, 115200,230400

Medical Industry



(Software Selectable)

Test Instrumentation

Serial Data Formats

7 or 8 data, 1 or 2 stop bits,

Cable set-top boxes



Odd or Even or None Parity

Credit Card Terminals

Flow Control

Hardware, XON/XOFF, None

POS Terminals

RS232 Interface

TxD,RxD,RTS,CTS,DTR,DSR

CNC Machines

Configuration

Software, 4 position DIP Switch

Security Systems

Diagnostic Indicator

Yes



Power Required

9-36V or 115VAC
(Optional OEM 18-72V DC, 5V @ 300mA)



Operating Temp Range

-10 C to 65 C







LS-101 Ordering

Information

LS 101-5V

LAN to Serial Converter with RS232, DB9 (M-F) Cable; Input: 5VDC 5% required, adapter not included





 OEM optional

OEM ONLY

LS 101-5V485

LAN to Serial Converter with



RS232/485, DB9 (M-F) Cable; Input:



5 VDC  5% required, adapter not



included

LS 101-12V

LAN to Serial Converter with RS232,



DB9 (M-F) Cable; Input: 9-36 VDC

LS 101-12V485

LAN to Serial Converter with



RS232/485, DB9 (M-F) Cable;



Input: 9-36 VDC

LS 101-48V

LAN to Serial Converter with RS232,



DB9 (M-F) Cable; Input: 19-72 VDC

LS 101-48V485

LAN to Serial Converter with



RS232/485, DB9 (M-F) Cable;



Input: 19-72 VDC



see other Serial to Ethernet Converters


jump to LS101 manual DOC file

jump to LS-101 manual PDF file
