Industrial 5-Port Redundant
Ethernet Switches

Industrial rated DC powered 5-Port Unmanaged Redundant Ethernet Switches

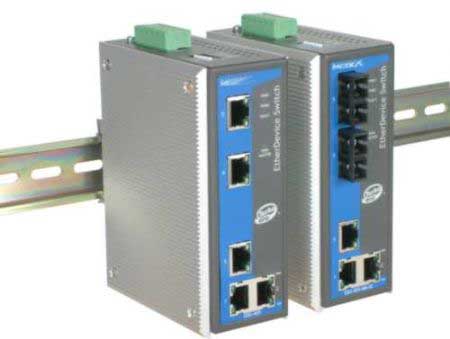

EtherDevice™ Switch AEDS-405 Series
Industrial 5-Port Unmanaged Redundant Ethernet Switches
see Larger Picture
  • Plug-n-Play, Ring Redundancy solution (recovery time < 300 ms)
  • Power failure and port break by relay output alarm
  • 10/100M, Full/Half-Duplex, MDI/MDI-X auto-sensing
  • Redundant dual DC power inputs
  • DIN-Rail or panel mounting ability



The AEDS-405 Series—the newest generation of EtherDevice™ Switch—includes 2 models: AEDS-405 and AEDS-405-MM. The EDS-405 Series consists of 5-port Ethernet switches specially designed for industrial automation and control systems, and also comes with plug-n-play Turbo Ring, which is used to establish an Ethernet redundant ring topology. Turbo Ring can automatically transmit over a redundant path segment in less than 300 ms, increasing the reliability of your system.

The built-in relay output function helps you monitor each port's link status, each power input's status, and the health of the Turbo Ring topology, allowing your maintenance engineers to react promptly to emergency situations.

The redundant dual DC power inputs help insure non-stop operation, and flexible installation options by DIN-Rail or wall mounting make it easy for you to fit AEDS-405 into any workspace.


Features

High performance network switching technology
    Plug-n-play, ring redundancy solution
    10/100BaseT(X) (RJ45), 100BaseFX (SC optical fiber connector, Multi-mode)
    Supports IEEE 802.3/802.3u/802.3x
    Store and Forward switching process type
    10/100M, full/half-duplex, MDI/MDI-X auto-sensing
Industrial grade reliability
    Power failure, port break alarm by relay output
    Redundant dual DC power inputs
    Line-Swap Fast Recovery (patent pending)
Rugged design
    Standard temperature range (0 to 60°C) and extended temperature range (-40 to 75°C) models available
    IP30, rugged high-strength metal case
Recommmended Accessories
    DR Series DIN-Rail 24 VDC Power Supplies


"Turbo Ring" is the state of the art feature that is developed for industrial Ethernet switches. It is used to establish an Ethernet redundant ring topology.

If one segment is broken, Turbo Ring will automatically transmit over a redundant path segment in less than 300 ms, allowing your industrial automation and control applications to run non-stop.


The Turbo Ring Technology



Specifications

  • Technology
Standards
IEEE802.3, 802.3u, 802.3x
Processing Type
Store and Forward, with IEEE802.3x full duplex, non-blocking flow control
Address Table Size
1K uni-cast addresses

  • Interface
LED Indicators
Power, Fault, 10/100M, Ring Master
DIP Switch
Port break alarm mask, Ring Master
Alarm Contact
One relay output with current carrying capacity of 1A @ 24 VDC
RJ45 ports
AEDS-405: 5 x 10/100BaseT(X)
AEDS-405-MM: 3 x 10/100BaseT(X)
Fiber Ports
AEDS-405-MM: 2 x 100BaseFX ports (SC Connectors)

  • Optical Fiber
Distance
AEDS-405-MM: 2 km (Multi mode)
Wavelength
AEDS-405-MM: 1310 nm
Min. TX Output
AEDS-405-MM: -20 dBm
Max. TX Output
AEDS-405-MM: 14 dBm
Sensitivity
AEDS-405-MM: -34 to -30 dBm
Recommended Diameter
AEDS-405-MM: 9/125 µm (Single), 62.5/125 µm (Multi)

  • Power
Input Voltage
12 to 48 VDC, redundant dual DC power inputs
Connection
Removable Terminal Block
Overload Current Protection
Present
Reverse Polarity Protection
Present

  • Mechanical
Casing
IP30 protection, aluminum case
Dimensions
53.6 x 135 x 105 mm (W x H x D)
Weight
0.65 kg
Installation
DIN-Rail, Panel Mounting ability

  • Environmental
Operating Temperature
0 to 60°C (32 to 140°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)

  • Regulatory Approvals
Safety
UL60950, UL 508, CSA C22.2 No. 60950, EN60950
EMI
FCC Part 15, CISPR (EN55022) class A
EMS
EN61000-4-2 (ESD), Level 3
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 3
EN61000-4-5 (Surge), Level 3
EN61000-4-6 (CS), Level 3
Shock
IEC60068-2-27
Free Fall
IEC 60068-2-32
Vibration
IEC 60068-2-6
MTBF
400,000 hours
Warranty
5 years



 Ordering Information

  • Standard Operating Temperature Models (0 to 60°C)
 AEDS-405
Unmanaged Redundant Ethernet Switch with 5 10/100BaseT(X) ports
 AEDS-405-MM-SC
Unmanaged Redundant Ethernet Switch with 3 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports
 AEDS-405-SS-SC
Unmanaged Redundant Ethernet Switch with 3 10/100BaseT(X) ports, 2 single mode 100BaseFX ports

Extended Operating Temperature Models (-40 to 75°C)
 AEDS-405-T
Unmanaged Redundant Ethernet Switch with 5 10/100BaseT(X) ports
 AEDS-405-MM-SC-T
Unmanaged Redundant Ethernet Switch with 3 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports
 AEDS-405-SS-SC-T
Unmanaged Redundant Ethernet Switch with 3 10/100BaseT(X) ports, 2 single mode 100BaseFX ports

  • Optional Accessories
 DR-4524
45W/2A DIN-Rail 24 VDC Pow er Supply with universal 85 to 264 VAC input
 DR-75-24
75W/3.2A DIN-Rail 24 VDC Power Supply with universal 85 to 264 VAC input
 DR-120-24
120W/5A DIN-Rail 24 VDC Power Supply with 88 to 132 VAC/176 to 264 VAC input by switch
 ADP-SCm-STf-M
Multi-mode SC (male) to ST (female) Duplex Adapter
 ADP-SCm-STf-S
Single-mode SC (male) to ST (female) Duplex Adapter
WK-46
Wall Mounting Kit
