Ether Device  Switch AEDS-308/305 Series
Industrial Unmanaged Ethernet Switches  8- and 5-Port

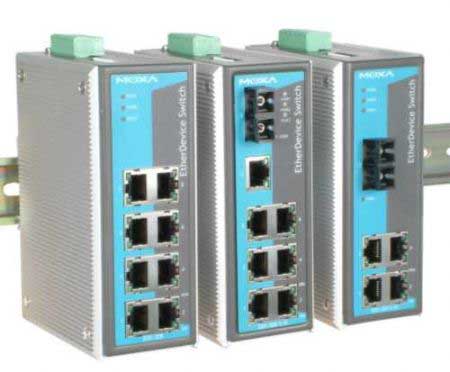

View Larger Picture

  • Economical 8- and 5-port industrial Ethernet Switches

  • Design incorporates high performance network switching technology

  • Rugged hardware design well suited for demanding industrial environments

  • Extended temperature range (-40 to 75°) models now available!

  • 12VDC, 24VDC,  48VDC power





The ARC EtherDevice™ Smart Switches, AEDS-308/305 series, are 8- and 5-port Industrial Rated Ethernet Switches that provide an economical solution for your Ethernet connection, and the built-in smart alarm function helps system maintainers monitor the health of your Ethernet network.

These products have a wide operating temperature range, from 0 to 60/deg°C and -40 to 75°C, and are designed to withstand a high degree of vibration and shock.

The rugged hardware design makes AEDS-308/305 series perfect for demanding industrial environments, giving you the confidence that your industrial applications will work continuously for many years.

12VDC to 48 VDC, redundant DC powered covers 12VDC, 24VDC,  48VDC wide temp range and  Industrial 10/100baseT Ethernet switch and also available in 115 VAC and 220/230 50Hz VAC power with universal 85 to 264 VAC input



     Features



High Performance Network Switching Technology





10/100BaseT(X) (RJ45), 100BaseFX (SC type, Multi/Single mode)





IEEE 802.3/ 802.3u/ 802.3x





Store and Forward switching process type, 1024 address entries





10/100M, Full/Half-Duplex, MDI/MDIX auto-sensing

Industrial Grade Reliability





Power failure, port break alarm by relay output





Redundant dual DC power inputs

Rugged Design





0 to 60°C operating temperature range and -40 to 75°C





IP 30, rugged high-strength case





DIN-Rail or panel mounting ability



    Specifications

Standards

IEEE802.3, 802.3u, 802.3x

Forward and Filtering Rate

148810 pps

Packet Buffer Memory

256 KB

Processing Type

Store and Forward, with IEEE802.3x full duplex, non-blocking flow control

Address Table Size

1K uni-cast addresses

Latency

Less than 5 µs



   Interface

Alarm Contact

One relay output with current carrying capacity of 1A @ 24 VDC

RJ45 ports

10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection

Fiber Ports

100BaseFX ports (SC connector)

LED Indicators

Power, Faults, ACT, LNK, 10/100

DIP Switch

Port break alarm mask



   Optical Fiber

Distance

Single mode fiber for 15 km, Multi mode fiber for 2 km

Wavelength

1310 nm

Min. TX Output

-15 dBm (Single), -20 dBm (Multi)

Max. TX Output

-6 dBm (Single), -14 dBm (Multi)

Sensitivity

-36 to -32 dBm (Single), -34 to -30 dBm (Multi)

Recommended Diameter

9/125 µm (Single) 62.5/125 µm (Multi)



    Power

Input Voltage

12 to 48 VDC, redundant inputs

Input Current

0.25A: (EDS-305, EDS-305-M, EDS-305-S, EDS-308)
0.35A: (EDS-308-M, EDS-308-S, EDS-308-MM, EDS-308-SS)

Connection

Removable Terminal Block

Overload Current Protection

1.6A (EDS-308-M, EDS-308-S, EDS-308-MM, EDS-308-SS)
1.1A (EDS-305, EDS-305-M, EDS-305-S, EDS-308)

Reverse Polarity Protection

Present



   Mechanical

Casing

IP30 protection, aluminum case

Dimensions

53.6 x 135 x 105 mm (W x H x D)

Weight

0.63 kg

Installation

DIN-Rail, Wall Mounting



   Environmental

Operating Temperature

0 to 60°C (32 to 140°F) and -40 to 75°C

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)



   Regulatory Approvals

Safety

UL60950, UL 508, CSA C22.2 No. 60950, EN60950

EMI

FCC Part 15, CISPR (EN55022) class A

EMS

EN61000-4-2 (ESD), Level 3
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 3
EN61000-4-5 (Surge), Level 3
EN61000-4-6 (CS), Level 3

Shock

IEC60068-2-27

Free fall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

EDS-305: 420,000 hours
EDS-308: 310,000 hours

Warranty

5 years



   Part Numbers



    8-port Switches—Standard Operating Temp. (0 to 60°C)

 AEDS-308

Industrial Smart Ethernet Switch
8 10/100BaseT(X) ports

 AEDS-308-M-SC

Industrial Smart Ethernet Switch
7 10/100BaseT(X) ports, 1 multi mode 100BaseFX port

 AEDS-308-S-SC

Industrial Smart Ethernet Switch
7 10/100BaseT(X) ports, 1 single mode 100BaseFX port

 AEDS-308-MM-SC

Industrial Smart Ethernet Switch
6 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports

 AEDS-308-SS-SC

Industrial Smart Ethernet Switch
6 10/100BaseT(X) ports, 2 single mode 100BaseFX ports



  • All items include User's Manual

  •

       5-port Switches—Standard Operating Temp. (0 to 60°C)

     AEDS-305

    Industrial Smart Ethernet Switch
    5 10/100BaseT(X) ports

     AEDS-305-M-SC

    Industrial Smart Ethernet Switch
    4 10/100BaseT(X) ports, 1 multi mode 100BaseFX port

     AEDS-305-S-SC

    Industrial Smart Ethernet Switch
    4 10/100BaseT(X) ports, 1 single mode 100BaseFX port



  • All items include User's Manual

  •

       8-port Switches—Extended Operating Temp. (-40 to 75°C)

    AEDS-308-T

    Industrial Smart Ethernet Switch
    8 10/100BaseT(X) ports

    AEDS-308-M-SC-T

    Industrial Smart Ethernet Switch
    7 10/100BaseT(X) ports, 1 multi mode 100BaseFX port

    AEDS-308-S-SC-T

    Industrial Smart Ethernet Switch
    7 10/100BaseT(X) ports, 1 single mode 100BaseFX port

    AEDS-308-MM-SC-T

    Industrial Smart Ethernet Switch
    6 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports

    AEDS-308-SS-SC-T

    Industrial Smart Ethernet Switch
    6 10/100BaseT(X) ports, 2 single mode 100BaseFX ports



  • All items include User's Manual

  •

       5-port Switches—Extended Operating Temp. (-40 to 75°C)

    AEDS-305-T

    Industrial Smart Ethernet Switch
    5 10/100BaseT(X) ports

    AEDS-305-M-SC-T

    Industrial Smart Ethernet Switch
    4 10/100BaseT(X) ports, 1 multi mode 100BaseFX port

    AEDS-305-S-SC-T

    Industrial Smart Ethernet Switch
    4 10/100BaseT(X) ports, 1 single mode 100BaseFX port



  • All items include User's Manual

  •

       Optional Accessories

     ADR-4524

    45W/2A DIN-Rail 24 VDC Power Supply with universal 85 to 264 VAC input

     ADR-75-24

    75W/3.2A DIN-Rail 24 VDC Power Supply with universal 85 to 264 VAC input

     ADR-120-24

    120W/5A DIN-Rail 24 VDC Power Supply with 88 to 132 VAC/176 to 264 VAC input by switch

     ADP-SCm-STf-M

    Multi-mode SC (male) to ST (female) Duplex Adapter

     ADP-SCm-STf-S

    Single-mode SC (male) to ST (female) Duplex Adapter

     AWK-46

    Wall Mounting Kit
