IFS VR1500 - VT1500 Fiber
Video
and Data Transceiver-Receiver

IFS VR1500 and VT1500 Video and Data Fiber Transceiver / Receiver with One-way Data Transmission  one-way return data over one or two multimode or single mode fibers

The IFS VT1500 - VR1500 video and data transceiver supports the simultaneous transmission of video and one-way return data over one or two multimode optical fibers. The module is universally compatible with major CCTV camera manufactures and supports RS-232 and RS- 422 data interfaces and all major data protocols. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. The modules incorporate power, video presence, optional contact closure, data out, and AGC status indicating LEDís to monitor proper system operation. The IFS VR1500WDM-CC features an optional contact closure input that allows an additional device such as a dome tamper switch or alarm input to be added and its signal transmitted back to the monitoring location. This feature eliminates the need for installing additional wiring to support the alarm contact closure. The modules are available in either stand-alone or rack mount versions.




VIDEO WITH 1-WAY DATA TRANSMISSION

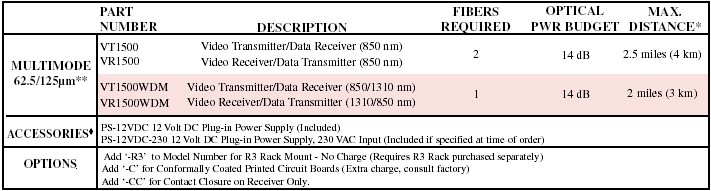

VT1500 MM VIDEO TX / DATA RX, MM, 2 FIBERS
VT1500-R3 MM VIDEO TX / DATA RX, MM, 2 FIBERS, RM
VT1500WDM MM VIDEO TX / DATA RX, MM, 1 FIBER
VT1500WDM-R3 MM VIDEO TX / DATA RX, MM, 1 FIBER, RM
VT1520WDM MM VIDEO TX / DATA RX, MM, 1 FIBER
VT1520WDM-R3 MM VIDEO TX / DATA RX, MM, 1 FIBER, RM
VT1530WDM SM VIDEO TX / DATA RX, SM, 1 FIBER
VT1530WDM-R3 SM VIDEO TX / DATA RX, SM, 1 FIBER, RM

VR1500 MM VIDEO RX / DATA TX, MM, 2 FIBERS
VR1500-R3 MM VIDEO RX / DATA TX, MM, 2 FIBERS, RM
VR1500WDM MM VIDEO RX / DATA TX, MM, 1 FIBER
VR1500WDMCC MM VIDEO RX / DATA TX, MM, 1 FIBER, CONTACT CLOSURE
VR1500WDMCC-R3 MM VIDEO RX / DATA TX, MM, 1 FIBER, CONTACT CLOSURE, RM
VR1500WDM-R3 MM VIDEO RX / DATA TX, MM, 1 FIBER, RM
VR1520WDM MM VIDEO RX / DATA TX, MM, 1 FIBER
VR1520WDM-R3 MM VIDEO RX / DATA TX, MM, 1 FIBER, RM
VR1530WDM SM VIDEO RX / DATA TX, SM, 1 FIBER
VR1530WDM-R3 SM VIDEO RX / DATA TX, SM, 1 FIBER, RM

VIDEO WITH UP-THE-COAX TRANSMISSION
VT1505 MM VIDEO TX / DATA RX, UP-THE-COAX, MM, 2 FIBERS
VT1505-R3 MM VIDEO TX / DATA RX, UP-THE-COAX, MM, 2 FIBERS, RM
VT1505WDM MM VIDEO TX / DATA RX, UP-THE-COAX, MM, 1 FIBER
VT1505WDM-R3 MM VIDEO TX / DATA RX, UP-THE-COAX, MM, 1 FIBER, RM

VR1505 MM VIDEO RX / DATA TX, UP-THE-COAX, MM, 2 FIBERS
VR1505-R3 MM VIDEO RX / DATA TX, UP-THE-COAX, MM, 2 FIBERS, RM
VR1505WDM MM VIDEO RX / DATA TX, UP-THE-COAX, MM, 1 FIBER
VR1505WDM-R3 MM VIDEO RX / DATA TX, UP-THE-COAX, MM, 1 FIBER, RM
