Patton 2110
Ethernet Booster solution more than
doubles Ethernet and PoE distances
of a 328 feet

call for your discounted cost

The 2110 is a Power-over-Ethernet (PoE), IEEE 802.3af Ethernet booster. Standard Ethernet is limited to 100 meter lengths over CAT5 twisted pair cable. Multiple 2110s overcome this distance while delivering power to an end device without the use of many wall adapters at each unit location. The 2110 exists in three versions:

• 2110/P – PoE Ethernet Booster

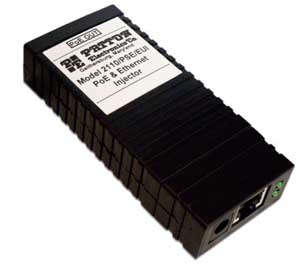

• 2110/PSE/EUI-48 – PoE Injector/ Ethernet Booster, 48VDC, 500m
• 2110/EUI – Ethernet Booster without PoE

The 2010 is optimized to extend 100Mbps of Ethernet traffic, and PoE over Cat5 or greater cabling at distances of 660ft/200m or more, the Patton 2110 is compatible with any standards-based PoE WAP, IP camera, or VoIP handset on the market. The device is fully transparent to WMV, MPEG-4, and MJPEG compression schemes.

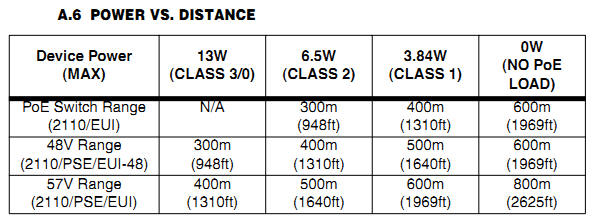

The micro-sized Booster transparently extends IEEE 802.3af PoE twice as far as the 100-meter/328-feet standard. by daisy-chaining multiple 2110s you can extend PoE up to 500 meters/1640 feet! By eliminating the need for UPS to meet power requirements or additional switches for Ethernet regeneration, the Patton 2110 reduces infrastructure costs and simplifies installation.

The Copperlink 2110 Booster doubles Ethernet distance limitations of 328 feet (100 meters). Multiple 2110 Ethernet Boosters can be placed in-line to further extend both Ethernet and PoE up to 1,640 ft (500 m), eliminating the need for additional switches, hubs, wireless access points, and expensive fiber installations. The 2110 is completely transparent to protocol making them true plug-and-play devices, completely interoperable with any network enabled device.

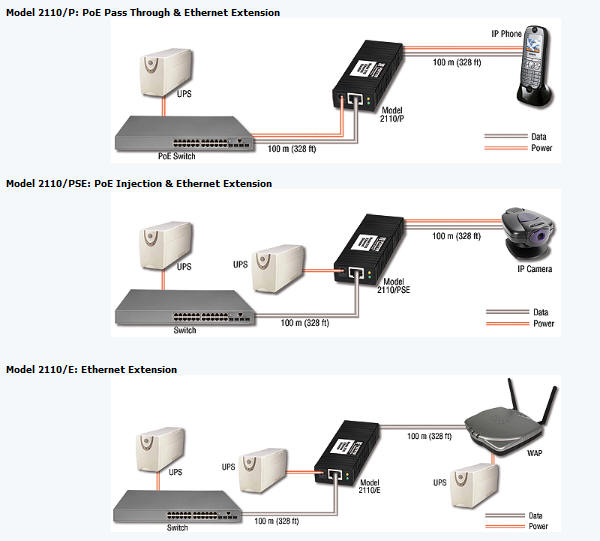

The 2110 Booster will not cause latency or degradation on your network connections, ensuring the maximum 100-Mbps full-duplex line rate. The 2110P and 2110PSE not only transparently pass on Ethernet data, but also feed on and forward PoE power to devices such as wireless access points, IP cameras, and VoIP phones.

2110/EUI CopperLink 10/100 Mbps Ethernet Booster; 100-240 VAC
2110/P CopperLink 10/100 Mbps Ethernet Booster; 802.3af pass through
2110/PSE/EUI-48 CopperLink 10/100 Mbps Ethernet Booster and 802.3af PoE Injector; 48VDC Source

view Spec sheet Model 2110 User Manual


view other Ethernet Extenders
