Encrypted Ethernet Tunnel

The ET-6600 creates an encrypted tunnel which passes Ethernet packets between two trusted LANs. All Ethernet protocols are bridged between two units. The ET-6600 only operates in conjunction with other ET-6600 units. One unit is required for each location. Multiple units may be connected to the same host unit.


ET-6600 Encrypted Ethernet Tunnel

  • Industrial rated temperature -40 to +70 C
  • Two Ethernet ports: 10BaseT, 10/100BasTe
  • Two asynchronous serial RS232 ports
  • Each port is independent and Easy to setup and maintain
  • Extensive statistics logging and diagnostic tools
  • Tunnels all Ethernet protocols, not just IP
  • AES 128 bit encryption
  • Ethernet to Ethernet or Ethernet to serial
    (for secure PPP dialup)
  • Tunnel Ethernet over an IP Network
  • Remote PC appears to be on the local network
  • Supports both broadband and dial-up connections
  • Compact size, Stand-alone or Rack Mounting
  • AC and DC power supply options

see manual

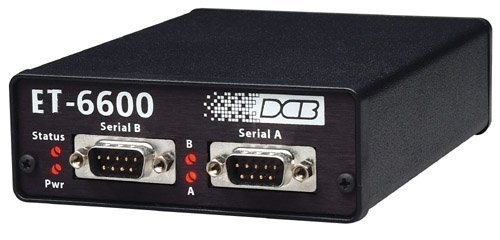

ET-6600 Front View

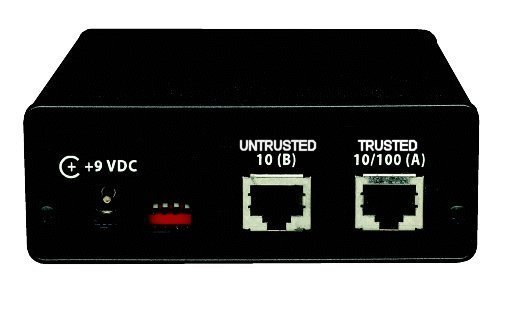

ET-6600 Rear View

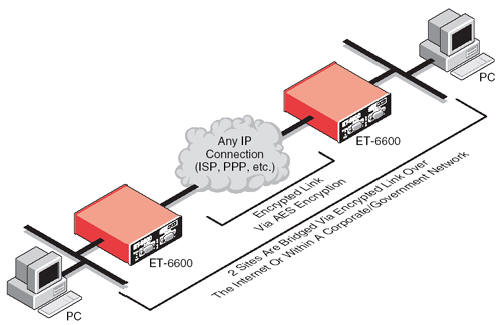

The ET-6600 encrypts data between private networks using the public Internet or any other network as the transport.

The ET-6600 is an industrial temperature rated device for creating encrypted Ethernet tunnels. It features two serial ports and two Ethernet LAN ports.

For example, you can take your office notebook computer home and connect securely to the office, just as though you were still there, and do this through the Internet. Use the same IP address at home and at the office. If both the office and the home have broadband, large amounts of data can be moved very efficiently. Dial-up is slow, as is all dial-up. The ET-6600 adds just milliseconds to the data propagation time.

The ET-6600 uses 128 bit AES encryption. AES is the Federal Government standard selected using an open selection process to replace DES and 3DES encryption.

For Ethernet to Ethernet connections, the 10BaseT connection is the untrusted side, or the Internet. The 10/100 Ethernet is the trusted, or internal side of the unit. For Ethernet to Serial connections, the serial port becomes the untrusted side, the 10/100 Ethernet is trusted side. One unit is required for each location. Multiple remote units may be logically connected to the same host unit.

The ET-6600 operates through firewalls with only one TCP port of your choice opened. It bridges all Ethernet protocols including IPX, IP, Netbuei, and other proprietary protocols. It is straight-forward, easy to configure and maintain. The EP-6600 has the features you want without the complexity, expense, and overhead of standard VPN products and protocols.


Applications


Two asynchronous RS-232 serial ports:

Two Ethernet ports:

Protocol Features:

Indicators

Controls   (DIP switch:)

Physical/Electrical

Environmental


The ET-6600 creates an encrypted tunnel which passes Ethernet packets between two trusted LANs. All Ethernet protocols are bridged between two units. The ET-6600 only operates in conjunction with other ET-6600 units. One unit is required for each location. Multiple units may be connected to the same host unit.


see manual




DCB PART #

DESCRIPTION

ET-6600

Encrypted Ethernet Tunnel Appliance with Two Async Ports, Two LAN Ports


ET-6690

Router with one Async Port, V.92 Modem, Two LAN Ports


ET-66xx-12V

9-18 VDC internal power supply option


ET-66xx-24V

18-35 VDC internal power supply option


ET-66xx-48V

36-72 VDC internal power supply option


ET-66xx-125VDC

125 VDC external power supply option
