Digital / AMPS Indusial Grade Cellular Modem |
CDMA Data\Modem and analog modem
NEW

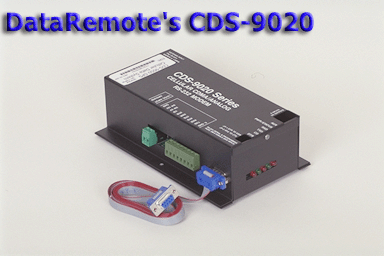

Whether you need primary modem service, backup or remote data access, this versatile, single-line Cellular Data System (CDS) puts immediate DATA and fax capability at your fingertips. Simply plug your standard RS-232 (DTE device) into the CDS-9020's female DB-9 or use the 8 position terminal block for industrials applications. And take advantage of the exceptional data transfer offered by rapidly expanding CDMA 800 & Analog Cellular system and PCS 1.9MHz network. The CDS-9020 for CDMA is the ideal communication solution for today's wireless communications needs. Benefits, Immediate modem access. Easy to use for bypassing high-cost wired service, Digital data privacy, lower airtime cost and 80% less current drain for solar applications, optional Built-in battery backup for self-contained operation during AC power outages. Sleek, rugged, compact design. Exceptional data quality with Built-in signal-strength and self-monitoring, programming capabilities for user diagnostics. 6 inputs and 6 outputs for remote monitoring. (Note: If the customer needs special features added there will be a one time NRE cost. The unit comes with real time signal strength monitoring, voltage monitoring, current monitor and 4 windows so you can program the unit to power up at specified times within a 24 hour time period.
The CDS 9022 now has a analog modem module for dual mode operation. That will be a optional module for sites that do not have CDMA data access. Or it can be used with the GPS module so when the unit travels in area's CDMA data is not present it will switch to analog mode. So you can be sure you will always be in contact with your data. And you still get the low digital rates.
jump to Specifications page
|
|
PRICE SHEET |
|
|
|
|
|
1 to 9 |
|
|
CDS-9020 = CDMA Modem 800MHz or 1900MHz only |
$645.00 |
||
|
CDS-9022 = CDMA 800MHz or 1900MHz with the Analog Modem Module |
$820.00 |
||
|
CDS-9050 = CDMA Modem 800MHz or 1900MHz with a GPS engine |
$1,229.00 |
||
|
CDS-9052 = CDMA and Analog Modem 800MHz or 1900MHz with a GPS engine |
$1,404.00 |
||
|
CDSB/6-Moto |
ANALOG CELLULAR ONLY 3 Watts Motorola Radio |
$595.00 |
|
|
CDS-8800/6AC |
ANALOG CELLULAR ONLY 3 Watts Motorola Radio |
$825.00 |
|
|
CDS-8800-6S (Solar unit) |
ANALOG CELLULAR ONLY 3 Watts Motorola Radio |
$1,325.00 |
|
|
CDMA 800MHz = Verizon network or any other provider that uses CDMA 800MHz |
|||
|
CDMA 1900MHz = Sprint Network or any other CDMA provider that operates at 1900MHz |
|||
|
AMPS Cellular 800MHz = Any Cellular provider, example AT&T wireless, Verizon, Cingler, etc |
|||
|
The above wireless providers are in North America. If you need a units for other country’s you will need to do a |
|||
|
little homework or call us and we will try to locate a CDMA provider in your area. |
|||
|
DataRemote Product Descriptions: X=Variable (CDMA Products) |
|||
|
Base Unit : |
CDS-9020 |
|
|
|
With Analog Modules |
CDS-90x2 |
||
|
With GPS |
CDS-905x |
|
|
|
With NEMA 4X Enclosure |
CDS-90xx \WP |
|
|
|
With NEMA 4X and AC Power Supply CDS-90xx \WPAC |
|
||
|
OPTIONS |
|
1 to 9 |
|
OPTIONS
S = Solar 17AH battery, regulator and a panel Includes:
Solar panel, Battery, regulator Mounted in a Nema 4X enclosure
with the CDS-90XX mounted in box. (Part #:
CDS-9020S \ 800MHz)
AC = Input 85AC to 240AC Output 12VDC Power supply
DT = Input 85AC to 240AC out 12VDC Desk Top power supply
WP = Water Proof enclosure (Nema 4x enclosure 8 by 10 inch’s with 3 Cord grip fitting) $
AMM = Analog Modem module
G = GPS Module that mounts directly to the CDS-9020 board
Example: 1 CDS-9020\WPAC-800MHz (see figure 1.1) Example: 2
CDS-9022-1900MHz
Example 1 is a CDS-9020 CDMA ONLY with a 12VDC Power Supply installed \
mounted in a Nema 4X enclosure.
With 3 CG fitting (cord grip\water proof).
Example: 2 Part Number CDS-9022\800M = CDMA 800MHz\1900MHz
modem and a analog cellular modem, mounted in our
standard powder coated box. (Note: this unit works in 97% of the United States
so you will always be sure you get your data)
Note: CDS-9020 is a Dual Mode Radio, So it can always be upgraded to a Dual mode
CDMA Data\Modem and analog modem
CDS-9022 = CDMA and a Analog Modem module (you would use this unit if you plan on traveling out of a Digital coverage area into an analog area. This will assure you to always be in contact with the CDS-9022 modem and your remote DTE device at all times). Note: In most CDMA 800MHz markets, even when you are in analog mode you still get your digital rate plan. (However, be sure to check with your wireless provider).
All CDS-9020 units come with CDMA Modem, Programming software, Antenna, Modem\Programming cable DB-9M to DB-9F and Manual.
Power supplies are not provide with the standard CDS-902X products. Please see spec sheet to make sure you have the correct DC voltage and output current. Or ask ask us to include a extra cost 12VDC supply with your order.
