What is Data Line Surge Protection and How Does It Work?
Data line surge protection devices are essentially high-speed, self-resetting switches
designed to balance communication lines with chassis (earth) ground in the event
lines become over-energized.

Without Data Line Surge Protection, What Happens?
Surge events may damage or destroy modems, motherboards, serial ports,
parallel ports, network interface cards and any other LAN equipment in
their path.

Does The Damage Go Deeper?
In the wake of surge destruction, the lasting hurt for any enterprise is
equipment downtime, particularly point-of-sale locations and the loss
of business transactions, orders, income, and customer goodwill. In
many cases these are losses that are difficult, if not impossible, to recover.

How Do Non-Power Data Lines Carry Surges?
Surges and any form of transient voltage must follow a "path." Data/telecom
lines, though not designed to convey power, are prone to electrical occurrences
that do seek a path. It’s well known that surge protection is vital when connecting
electronic equipment to power sources. However, what is lesser known is that even
when power line surge protection suppresses one path, other paths (like data/telecom lines)
become vulnerable and inviting. In other words, power surge protection may shut the "front door,"
but does nothing to guard against "back door" entry. There are several other phenomena that find
data and telecommunication lines ever so inviting. Only specific data line surge protection will provide
that security assurance.

Geographically, Where and When Do Surges Occur?
Disturbances can happen anywhere. Historically, with its thunderstorm activity, lightening, high winds and related atmospheric conditions,
the Southeastern US has been particularly prone. However, current nationwide conditions (i.e. power grid episodes, rolling blackouts, etc.) do not limit the scope of vulnerability.

Isn’t Equipment Today Built To Withstand Surges?
Actually, today’s telecommunications, networking, electronics, etc. applications are far more sensitive and thus more prone to damage. And with the high cost of equipment (and the unrecoverable downtime costs) the need for data line surge protection has never been greater. Thanks to Cylix, the solutions have never been more readily available.

Why Do You Need Data Line Surge Protection?
As new technologies drive more sophisticated applications into the marketplace, it is clear that protecting data and telecommunication equipment through the use of Data Line Surge Protectors (DLSPs) is now more important than ever.

DLSPs are, in essence, high speed, self resetting switches designed to balance communication lines with chassis (earth) ground in the event the lines become over energized.

Where Do Surge Energies Come From?

Destructive surge energies occur as a result of ground potential differences. Some typical examples are nearby lightning strikes, ESD (electrostatic discharge), EMI (electro magnetic interference), RFI (radio frequency interference), and induced over-voltages caused by copy machines, fluorescent lighting and even AC power protectors.

Example: A power line surge is clamped by the AC power protector to chassis (earth) ground. The surge energy seeks earth ground through any and all paths. The data cable is a path. The surge energy seeks earth ground through the data cable, damaging or destroying motherboards, modems, serial ports, parallel ports, network interface cards and any other LAN equipment in its path.

The Cylix Data Line Surge Protection Difference
• Since 1984, The Cylix Corporation has been dedicated exclusively to the development of effective data line surge protection. This dedication has
resulted in the industry's most comprehensive family of data line surge protection products and the positioning of Cylix as the gold standard in
today's communication protection marketplace.
• All Cylix products are manufactured in the USA and tested in-house to meet or exceed UL 497 specifications.
• Easy-to-install, in-line surge protection products are designed to protect data and telecommunication lines for virtually any type of network or
system including Ethernet, ArcNet, Token Ring, RS232, RS422, Satellite, CATV, CCTV, DDS, T1 and ISDN applications.
• Our custom products group specializes in tailor made devices to address unique protection problems for non-standard, mission-critical environments.
• Our Circle of Protection Product Warranty and Guarantee includes a Limited Lifetime Warranty, Five Year Replacement Warranty and
$25,000 Connected Equipment Guarantee.

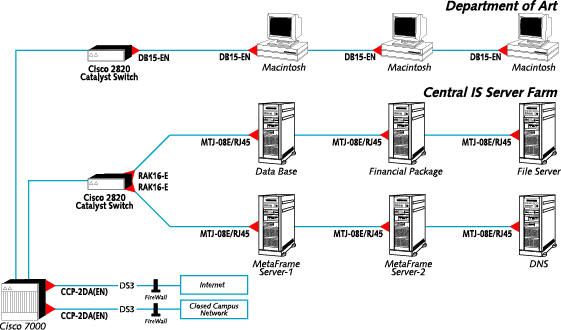

Major University deployment of Cylix Data Line
Surge Protection Devices in cross campus installation.

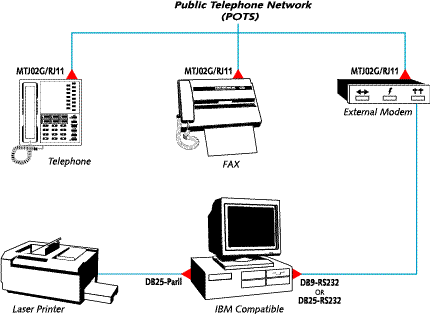

Typical stand-alone office environment using Cylix data line
surge protectors to insure investment and guarantee productivity.






  Series Part Number Application Connector
CCP
The CCP Series of data communication line surge protectors will ensure the reliable operation of coaxial or twinaxial based networked equipment running IBM 3270, AS400, Ethernet, ArcNet, Satellite/Cable/Closed Circuit TV and most other wideband, communication interfaces.


CCP-2DA (EN)
CCP-2DT (EN)
CCP-2DA-N (EN) M/F
CCP-CCTV
CCP-FCT - M/F
CCP-FST - M/F
Ethernet 10BASE 2 (ThinNet)
Ethernet 10BASE 2 (ThinNet) “T” Tap
Ethernet 10BASE 5 (ThickNet)
Closed Circuit TV
Cable TV
Satellite TV
Coaxial
Coaxial
Coaxial (also avail. F/F)
Coaxial
Coaxial (also avail. F/F)
Coaxial (also avail. F/F)

SEE
PAGE
DDP
The DDP Series of data communication line protectors will ensure the reliable operation of hubs, bridges, routers, switches and other networked equipment running 10BASE T & 100 BASE T Ethernet, RS422, RS423, RS232, ArcNet, Token Ring, Analog Dial Up, CSU/DSU, DDS, ISDN, T1 and most other communication environments.

DDP-H4-*
DDP-H8-*
DDP-H12-*
DDP-25-*
See below for “*”
See below for “*”
See below for “*”
See below for “*”
RJ11 & RJ45 - 4 Ports
RJ11 & RJ45 - 8 Ports
RJ11 & RJ45 - 12 Ports
RJ21

MTJ
The MTJ Series of data communication line protectors for RJ45 and RJ11 interfaces will ensure the reliable operation of Local and Wide Area Networks. We offer protection for LAN interface technologies such as Ethernet 10BASE T & 100BASE T, CDDI, 100VG-AnyLan and ATM155. For WAN and Telco applications we offer protection for environments including ISDN, T1, FT1, DDS, analog dial up modems, faxes and more.


MTJ-02*/RJ11
MTJ-04*/RJ11
MTJ-06*/RJ11
MTJ-04*/RJ45
MTJ-08*/RJ45
See below for “*”
See below for “*”
See below for “*”
See below for “*”
RJ11 (2 Wire)
RJ11 (4 Wire)
RJ11 (6 Wire)
RJ45 (4 Wire)
RJ45 (8 Wire)

PCH
The Category 5 PCH Series 24-Port Protected Patch Panel helps ensure the reliable operation of networked equipment using 100BASE T, ATM155, CDDI and other 100Mhz applications where system availability is absolutely critical.


PCH12-C5
PCH24-C5
PCH48-C5
Rack Mount - 100BASE T, ATM155, CDDI& 100mHz
Rack Mount - 100BASE T, ATM155, CDDI& 100mHz
Rack Mount - 100BASE T, ATM155, CDDI& 100mHz
CAT5 110/RJ45 - 12 Ports
CAT5 110/RJ45 - 24 Ports
CAT5 110/RJ45 - 48 Ports


SEE Spec PAGE

RAK
The RAK Series of Rack Mount and Wall Mount Standoff protectors will ensure the reliable operation of networked equipment connected to 10BASE T & 100BASE T Ethernet, ATM155, CDDI, 100VG-AnyLan, RS422, RS232, Token Ring, Lease Line, ISDN, T1, DDS, Dial-Up and most other communication interfaces.


RAK16-*
RAK16-*/SO
RAK32-*/SO
Rack Mount - See below for “*”
Rack Mount - See below for “*”
Rack Mount - See below for “*”
RJ11 & RJ45 - 16 Port
RJ11 & RJ45 - 16 Port w/so
RJ11 & RJ45 - 32 Port w/so

SIP
The SIP Series of Subminiature D Interface Protectors will ensure the reliable operation of parallel and serial devices such as printers and external modems, point-of-sale terminals, mainframes, dumb terminals and most other devices using subminiature D or Centronics connectors, which are sensitive to destructive transient energies. Standard applications include Ethernet, Token Ring, RS232, RS422 and LAN/WAN interfaces. Special applications can be accommodated through our Custom Products Group.

DB9-RS232
DB15-RS232
DB25-RS232
DB25M/-RJ45-*
DB25F/R-RJ45-*
RS232 (also available for RS422 & Token Ring)
RS232 (also available for RS422 & Ethernet AUI)
RS232 (also available for RS422 & Parallel)
DB25 Adapter - See below for “*”
DB25 Adapter - See below for “*”
DB9
DB15
DB25 (RS232 also available in 4 & 8 wire)
DB25 Male to RJ45 Adapter
DB25 Female to RJ45 Adapter

TSP
The TSP Series of Terminal Strip Protectors will ensure the reliable operation of networked equipment connected to Token Ring, RS422, RS232, Short Haul Modems, Muxes, DDS, Analog Dial Up, ISDN, T1 and most other communication interfaces.

TSP-2B-*
See below for “*”
Hard-Wire (2 Wire)
Also available in 4,6,8, 10 and 32 Wire


Additional Products


The USB Protector has been designed to address the protection needs of Universal Serial Bus ports. The compact, easy-to-install Products design offers ³plug and play² capability while advanced, silicon avalanche diode technology provides protection from surge energies, electrostatic discharge and noise components. These fully shielded, high-speed, high energy, self-resetting devices offer mission-critical reliability in the protection of workstations, printers, scanners, digital telco equipment, and a host of other peripherals using either type ³A² or type ³B² connectivity. The PCMCIA and CATV products incorporate a ground pin for convenient use on AC outlets instead of the traditional green ground wire on other lines.


USB-A
USB-B
CATV
PCMCIA
Universal Serial Bus
Universal Serial Bus
Cable TV
Laptop Modem Protector
Type “A”
Type “B”
Coaxial using AC outlet ground
RJ11 using AC outlet ground
* Protectors are available for RS232, RS422, RS423, RS485, RS530, Ethernet, ArcNet, Token Ring, Analog and Digital Telco and most other applications (see series specification sheet or ask one of our staff for details.)

PLEASE NOTE: In addition to protection for standard applications, Cylix offers custom products and engineering services to address unique application problems.
