Carrier Access Channel Bank
FXS  FXO  E&M

T1 Access Channel Bank I Multiple voice services from a single T1. The Access Bank 1 T1 channel Bank I provides standard FXS, FXO, E&M and other common analog line services up to 24 lines from a single T1.

also view the Adit -600 Channel Bank


  • Complete T1 Channel Bank package with Integral CSU

  • Incredible single-card Common Equipment: T1 CSU / Controller / Power / Ringing

  • Connects T1 voice services from AT&T, MCI, Sprint, LDDS, local Bells, others

  • Loop and Ground Start FXS

  • FCC and safety approved for T1 line connections

  • Simple set-up of T1 and channel options - no computer terminal or programming required

  • Unique Channel Bank Self-Test Switch quickly isolates equipment from T1 line problems - green lights indicate that the channel bank self test has passed

  • Manual Network Loopback Switch - in addition to standard CSU loop-up and loop-down codes

  • Thumb screws and slide-out 12-channel voice cards for easy maintenance - three minute upgrade from 12 to 24 channels

  • Low power consumption with –48 VDC inputs and AC charger with economical eight-hour battery backup option
  • Compact size (1 RU), wall or rack-mount allows convenient space-saving installations
  • Fuseless line protection, fanless cooling and solid-state signaling increase service availability
  • TR-08 software option supplies direct customer connection to CLASS features


View Manual


Carrier Access Channel Bank

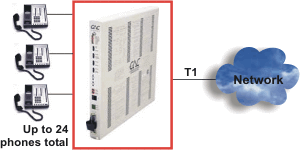

The Carrier Access Channel Bank sets a new standard for connecting T1 switched services to Hybrid / Key and PBX telephone systems.  The Carrier Access ABI Channel Bank converts a T1 digital access line to 12 or 24 analog telephone circuits.  The Carrier Access ABI Channel Bank provides the most economical, compact, and reliable solution on the market for converting T1 digital access services to standard "dial tone" interfaces.  Business and government offices can connect their existing telephone systems to T1 digital services - without a significant investment in equipment.

One or two 12-channel telephone line voice cards plug into the LIU card to make a complete I Channel Bank.  The most commonly used 12-channel voice card is the FXS-12.  One FXS-12 card provides 12 standard Loop Start or Ground Start telephone line connections to a customer's telephone system.  The second FXS-12 card (for 24 telephone lines total)  can be added to the I Channel Bank simply by sliding it into the back of the cabinet.

Using state-of-the-art solid state integrated circuits, ultra-reliability and advanced services features have been engineered into the Carrier Access ABI Channel Bank.  Only three circuit cards make up a complete 24 channel bank.  The FCC-registered T1 Channel Service Unit (CSU), Ringing Generator, Power Converters, Ringback Tone Generator, and Channel Bank Controller are all integrated into a single small electronics card called the Line Interface Unit (LIU).  The LIU connects directly to carrier T1 lines and supports selectable T1 standards of D4 or ESF framing and EMI or B8ZS line coding.  A quick field replacement of the LIU completely changes all common electronics in the Access Bank.




Easily provision varied analog voice services from T1 Compact device converts digital services to analog circuits. The Access T1 Channel Bank I is an economical, compact device for converting T1 digital access services to 12 or 24 individual analog telephone circuits. Six different types of 12-channel and 4+8 channel telephone line interface cards provide a variety of analog line services, including:

  • BRFXS

  • DPO

  • DPT

  • E & M

  • FXO

  • FXS

  • FXSDN

  • PLARD

  • SPOTS

  • TO

  • The Access T1 Channel Bank I automatically adapts to changing line conditions, providing a clear, echo-free transmission path at all times.

    Minimize deployment time
    Designed for speedy deployment, the Access Bank I provides installation instructions right on the case. Configuration is done via DIP switches and self-test routines to ensure that all circuits are operable. The design incorporates an integrated CSU, allowing direct T1 line connection and monitoring.

    In-service maintenance capabilities include hot-swappable line cards, channel LEDs and fuseless protection of all interfaces. A remote management option with Windows® GUI software and built-in modem is also available.

    Direct connection to full CLASS features
    The Access T1 Channel Bank I TR-08 option offers direct digital T1 connection to Class 5 local switch interfaces, eliminating the need for analog conversion of line connections at the Central Office. TR-08 signaling can be provisioned for physically separate shelves. Unlike trunk-side T1 switch connections, line-side TR-08 connections supply full CLASSSM features directly to customer phone lines.



    Item Part Number Description

    Configured Systems

    Access Bank I with AB-115 Power for AC Conversion

    ABI Base w/AC Cube 900-0075 ABI chassis, 1 T1, LIU+ controller, AC converter

    ABI FXS w/AC Cube 900-0019 ABI chassis, 1 T1, LIU+ controller, AC converter, 12 FXS

    ABI FXS/FXS w/AC Cube 900-0001 ABI chassis, 1 T1, LIU+ controller, AC converter, 24 FXS

    ABI FXO w/AC Cube 900-0020 ABI chassis, 1 T1, LIU+ controller, AC converter, 12 FXO

    ABI FXO/FXO w/AC Cube 900-0002 ABI chassis, 1 T1, LIU+ controller, AC converter, 24 FXO

    ABI 4WEM/4WEM w/AC Cube 900-0003 ABI chassis, 1 T1, LIU+ controller, AC converter, 24 4-wire E&M

    ABI 4FXO/8FXS w/AC Cube 900-0123 ABI chassis, 1 T1, LIU+ controller, AC converter, 4 FXO, 8 FXS

    ABI 8FXO/16FXS w/AC Cube 900-0122 ABI chassis, 1 T1, LIU+ controller, AC converter, 8 FXO, 16 FXS

    ABI 4FXO/20FXS w/AC Cube 900-0121 ABI chassis, 1 T1, LIU+ controller, AC converter, 4 FXO, 20 FXS


    Access Bank I with 115 Charger, 50W for Carrier Access Battery Unit

    ABI Base w/Charger 910-0075 ABI chassis, 1 T1, LIU+ controller, AC converter/battery charger

    ABI FXS w/Charger 910-0019 ABI chassis, 1 T1, LIU+ controller, AC converter/battery charger, 12 FXS

    ABI FXS/FXS w/Charger 910-0001 ABI chassis, 1 T1, LIU+ controller, AC converter/battery charger, 24 FXS

    ABI FXO w/Charger 910-0020 ABI chassis, 1 T1, LIU+ controller, AC converter/battery charger, 12 FXO

    ABI FXO/FXO w/Charger 910-0002 ABI chassis, 1 T1, LIU+ controller, AC converter/battery charger, 24 FXO

    ABI 4WEM/4WEM w/Charger 910-0003 ABI chassis, 1 T1, LIU+ controller, AC converter/battery charger, 24 4-wire E&M

    ABI 4FXO/8FXS w/Charger 910-0123 ABI chassis, 1 T1, LIU+ controller, AC converter/battery charger, 4 FXO, 8 FXS

    ABI 8FXO/16FXS w/Charger 910-0122 ABI chassis, 1 T1, LIU+ controller, AC converter/battery charger, 8 FXO, 16 FXS

    ABI 4FXO/20FXS w/Charger 910-0121 ABI chassis, 1 T1, LIU+ controller, AC converter/battery charger, 4 FXO, 20 FXS



    Access Bank I without Power Conversion for Direct -48 VDC Input

    ABI Base w/No Power 930-0075 ABI chassis, 1 T1, LIU+ controller, -48 VDC input

    ABI FXS w/No Power 930-0019 ABI chassis, 1 T1, LIU+ controller, -48 VDC input, 12 FXS

    ABI FXS/FXS w/No Power 930-0001 ABI chassis, 1 T1, LIU+ controller, -48 VDC input, 24 FXS

    ABI FXO w/No Power 930-0020 ABI chassis, 1 T1, LIU+ controller, -48 VDC input, 12 FXO

    ABI FXO/FXO w/No Power 930-0002 ABI chassis, 1 T1, LIU+ controller, -48 VDC input, 24 FXO

    ABI 4WEM/4WEM w/No Power 930-0003 ABI chassis, 1 T1, LIU+ controller, -48 VDC input, 24 4-wire E&M

    ABI 4FXO/8FXS w/No Power 930-0123 ABI chassis, 1 T1, LIU+ controller, -48 VDC input, 4 FXO, 8 FXS

    ABI 8FXO/16FXS w/No Power 930-0122 ABI chassis, 1 T1, LIU+ controller, -48 VDC input, 8 FXO, 16 FXS

    ABI 4FXO/20FXS w/No Power 930-0121 ABI chassis, 1 T1, LIU+ controller, -48 VDC input, 4 FXO, 20 FXS


    Access Bank I TR-08 with AB-115 Power for Conversion

    ABI TR-08 Base w/AC Cube 900-0076 ABI chassis, 1 T1, LIU+ TR-08 controller, AC converter

    ABI TR-08 SPOTS w/AC Cube 900-0047 ABI chassis, 1 T1, LIU+ TR-08 controller, AC converter, 12 SPOTS

    ABI TR-08 SPOTS/SPOTS w/AC Cube 900-0004 ABI chassis, 1 T1, LIU+ TR-08 controller, AC converter, 24 SPOTS


    Access Bank I TR-08 with 115 Charger, 50 W for Carrier Access Battery Unit

    ABI TR-08 Base w/Charger 910-0076 ABI chassis, 1 T1, LIU+ TR-08 controller, AC converter/battery charger

    ABI TR-08 SPOTS w/Charger 910-0047 ABI chassis, 1 T1, LIU+ TR-08 controller, AC converter/battery charger, 12 SPOTS

    ABI TR-08 SPOTS/SPOTS w/Charger 910-0004 ABI chassis, 1 T1, LIU+ TR-08 controller, AC converter/battery charger, 24 SPOTS


    Access Bank I TR-08 without Power Conversion for Direct -48 VDC Input

    ABI TR-08 Base w/No Power 930-0076 ABI chassis, 1 T1 LIU+ TR-08 controller, -48 VDC input

    ABI TR-08 SPOTS w/No Power 930-0047 ABI chassis, 1 T1 LIU+ TR-08 controller, -48 VDC input, 12 SPOTS

    ABI TR-08 SPOTS/SPOTS w/No Power 930-0004 ABI chassis, 1 T1 LIU+ TR-08 controller, -48 VDC input, 24 SPOTS


    Bundled Speedway Systems

    Speedway / ABI / Battery Bundle 990-0006 1 ABI/FXS/FXS/Charger, 1 Speedway install kit, 1 Speedway 2nd unit cable kit, 1 battery

    Speedway / 2 ABI / 2 Battery Bundle 990-0007 2 ABI/FXS/FXS/Charger, 1 Speedway install kit, 1 Speedway 2nd unit cable kit, 2 batteries

    Speedway / ABI Bundle 990-0008 1 ABI/FXS/FXS/Charger, 1 Speedway install kit, 1 Speedway 2nd unit cable kit

    Speedway / 2 ABI Bundle 990-0009 2 ABI/FXS/FXS/Charger, 1 Speedway install kit, 1 Speedway 2nd unit cable kit


    Components

    ABI LIU+ 740-0007 Access Bank I LIU card with T1 CSU, power converter, ringing generator, ringback tone.

    ABI LIU+ TR-08 740-0011 Access Bank I LIU card with TR-08 Firmware, T1 CSU, power converter, ringing generator, ringback tone.

    AB-115 AC Power Cube 730-0124 115VAC to -48 VDC power converter with cords.

    AB-220 AC Power Cube 730-0083 220VAC/50Hz to -48 VDC power converter with cords.

    D4/ESF LIU EPROM only 750-0018 EPROM for ABI LIU controller to convert from TR-08 operation to D4/ESF operation. LIU

    D4/ESF LIU+ EPROM only 750-0019 EPROM for ABI LIU+ controller to convert from TR-08 operation to D4 operation. LIU+

    TR08/D4 LIU EPROM only 750-0020 EPROM for ABI LIU controller to convert from D4/ESF operation to TR-08 operation

    TR08/D4 LIU+ EPROM only 750-0021 EPROM for ABI LIU+ controller to convert from D4 operation to TR-08 operation

    4WEM Card 740-0003 12-Channel expansion or replacement card for 4-WIRE E&M or TO interface applications.

    FXO Card 740-0004 12-Channel expansion or replacement card for FXO or DPT interface applications.

    FXS Card 740-0008 12-Channel expansion or replacement card for FXS, FXSDN or PLARD interface applications.

    BRFXS Card 740-0009 12-Channel expansion or replacement card for Battery Reversal FXS (BRFXS) or DPO interface applications.

    SPOTS Card 740-0012 12-Channel expansion or replacement card for TR-08 Single Party Ringing and Universal

    Voice Grade (SPR/UVG) interfaces. This card is designed for TR-08 signaling.

    4+8 Card 740-0022 12-Channel expansion or replacement card, 8 FXS channels and 4 FXO channels.

    TR-08 Firmware Option 750-0003 I TR-08 Firmware Option for field upgrade in units. Sent as three (3) programmable integrated circuits, one for LIU upgrade and two for FXS upgrade to SPOTS.

    LIU+ TR-08 Firmware Option 750-0004

    TR-08 Firmware Option for field upgrade in Access Bank I with LIU+. Sent as three (3)

    programmable integrated circuits, one for LIU+ upgrade and two for FXS upgrade to SPOTS.

    LIU TR-08 to D4 Firmware 750-0013 TR-08 to D4 Firmware Option for field upgrade in Access Bank I with LIU. Sent as three (3) programmable integrated circuits, one for LIU upgrade and two for FXS upgrade.

    LIU+ TR-08 to D4 Firmware 750-0014 TR-08 to D4 Firmware Option for field upgrade in Access Bank I with LIU+. Sent as three (3) programmable integrated circuits, one for LIU+ upgrade and two for FXS upgrade.
