Canoga Perkins Model L312
Specifications

The Canoga Perkins L312 is a managed UTP to Fiber Ethernet Media Converter. It extends 10BASE-T UTP segments up to 120km over Single Mode fiber. It is designed for installation into Canoga Perkins carrier class UCS platform, and is also available as a standalone for desktop or wall mount installations.

The Canoga Perkins L312 is an IEEE 802.3 compliant device available with a variety of Multimode and Single Mode optics options to address a complete spectrum of LAN extension applications. It is NEBS level 3 tested and certified and provides an extremely reliable, yet cost effective solution suitable for the most stringent network deployments.

PHYSICAL

Rackmount Dimensions
3.0"H x 1.0"W x 9.0"D
(76 x 25 x 228mm)

Rackmount Weight
0.3 lb (0.136kg)

Standalone Dimensions
1.5"H x 6.5"W x 10.0"D
(38 x 165 x 254mm)

Standalone Weight
3.0 lb (1.36kg)

ENCLOSURES

Rackmount
UCS 1000, UCS 1001, UCS 1002

Standalone
Model 1030 Standalone Enclosure

OPERATING ENVIRONMENT

Rackmount Temperature
0º to 50ºC

Standalone Temperature
0º to 40ºC

Humidity
Up to 90% (Noncondensing)

POWER

5VDC 800mA Max.

CONNECTORS

Fiber (Extension Port)
ST, SC

Copper (User Port)
RJ-45

SWITCHES

Alarm, Link Loss Forwarding (With Direction), Link Loss Echo, User UTP Crossover

ALARMS

Module Power Failure, Power On Self Test Failure, Both User and Extension Port Link Status Includes: Link Down, Link Loss Forwarding, Link Loss Echo

DIAGNOSTIC LEDs

STA System Status
LNK/Rx Link Status and Receive Data Activity
Tx Transmit Data Activity

MANAGEMENT

Local SNMP Management in the UCS 1000/1002

REGULATORY COMPLIANCE

ETL, cETL (UL 60950/CSA C22.2 No. 60950)
EN 60950, EN 60825-1, EN 55022, EN 55024,
EN 61000-3-2, EN 61000-3-3
FCC Part 15B, Class A
R&TTE Directive (EN 300-386)
C-Tick (AS/NZS 3548)
NEBS Level 3 Tested and Certified

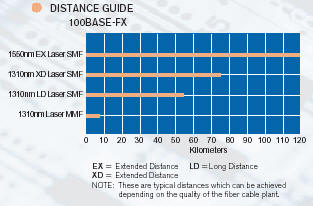

Distance Guide





Ordering Information


Rackmount Host Module (holds 1-2 L3xx modules)

1230-2000 Bus Access Module (BAM) card, requires an L3XX-XXXX

 Standalone Enclosure

1030-2100 Standalone Enclosure, holds one L3xx Module, AC power (autoranging 85 to 264 VAC)

A001-9006 Wall mount kit, consists of two brackets and 4 mounting screws

MODEL DESCRIPTION

L312-xxxx UTP to Fiber Ethernet Media Converter w/ RJ45

Fiber Optic Options

L312-1113 10Mbps 850nm MM w/ SC, 10dB

L312-1313 10Mbps 1310nm SM w/SC, 18dB

L312-1323 10Mbps,1310nm SM w/SC, 24dB

L312-1833 10Mbps,1550nm SM w/SC, 30dB

 L312-xxxx UTP to Fiber Ethernet Media Converter w/ RJ45

Fiber Optic Options

L312-1111 10Mbps 850nm MM w/ ST, 10dB

L312-1311 10Mbps 1310nm SM w/ST, 18dB

L312-1321 10Mbps,1310nm SM w/ST, 24dB

L312-1831 10Mbps,1550nm SM w/ST, 30dB
