Adtran Total Access 750

Data options include a Fractional T1 port, as well as DDS, ISDN, and Nx56/64 access modules. The Fractional T1 Drop-and-Insert port on the rear of the unit provides a convenient method of dropping a number of DS0s to a PBX or other equipment via a DSX-1 signal.


TOTAL ACCESS 750

SMALL LINE SIZE INTEGRATED ACCESS SYSTEM

As competition for dial tone heightens, service providers must find integrated access devices that allow cost-effective deployment of voice and data services at the customer's premises. ADTRAN answers this call with the Total Access 750 (TA 750) product line. The TA 750, a low-cost integrated access device, allows service providers a means to offer combined voice and data traffic over a single T1 terminating at a customer's premises. The TA 750 supports a broad service offering including analog voice (FXO/FXS), NxData, Fractional T1, ISDN and DDS.

The TA 750 provides seven slots for the user to combine a variety of voice and data services based on the specific requirements of each application. Up to six Quad FXS or FXO access modules provide up to 24 analog voice lines. Data options include a Fractional T1 port, as well as DDS, ISDN, and Nx56/64 access modules. The Fractional T1 Drop-and-Insert port on the rear of the unit provides a convenient method of dropping a number of DS0s to a PBX or other equipment via a DSX-1 signal.

The design of the TA 750 lends itself to cost-efficient growth or a "grow as you go" architecture. Many applications require only a limited amount of analog circuits and, therefore, do not warrant purchasing or installing 12 or 24 ports as required with other non-modular designs. The benefits of the TA 750 modularity are also found in cost-per-port comparisons and data applications. Because a provider only installs the amount of voice ports needed for the subject application, initial turn-up cost and per-port cost are lower. This is because the provider can defer channel unit cost until it is needed. And in data applications, the TA 750 provides the flexibility to mix voice and data units also based on the particular requirements of each application.

When maintenance becomes necessary, the TA 750 design allows technicians to reach the access modules, commons, power supplies, and battery back-up system easily. Access modules are hot swappable and accessible at all times. An individual access module may be replaced without disrupting other units. So, the 4-circuit-per-card design ensures a maximum of only four analog circuits are affected when replacing a channel unit (as opposed to 12 with other non-modular systems).

The 2U design of the TA 750 uses a minimum amount of wall space. The 8.5-inch x 11-inch chassis uses a space about the size of a standard piece of notebook paper. When rack mounting is desired, two TA 750 systems can be mounted side-by-side in either a 19-inch or 23-inch relay rack.

Features

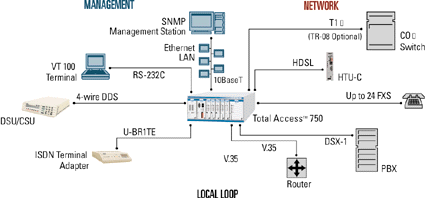

TOTAL ACCESS 750 APPLICATION EXAMPLE


Product Specifications

TA 750 INTERFACE

Network Interface

  • Line Rate: 1.544 Mbps +/- 75 bps

Physical Interface

  • RJ-48C: Modular, 8-pin

Framing

  • D4(SF)/ESF/TR-08
  • ANSI T1.403
  • Line Code: AMI / B8ZS
  • T1 Transmit Timing: Loop, Local, External

MANAGEMENT OPTIONS

Control In / Control Out Ports

  • Interface: EIA-232, PC Serial Port or Modem
  • Physical Connector: DB-9

TESTING OPTIONS

Local and Remote Loopbacks

  • Payload and Line
  • CSU Loopback

Network Interface Test Jacks

  • Bantam Jack: RXMON

TR-08 SUPPORT

  • Conforms with TR-TSY-000008
  • TR-08 Mode I, Unconcentrated
  • SLC96 framing with alarm reporting/monitoring
  • Automatically configures to ORB-13 or ORB-16 alarm messaging formats
  • Single Party Ringing (SPR) and Universal Voice Grade (UVG) analog ports supported with FXS modules. CLASS services also supported with these modules.

PERFORMANCE MONITORING

  • Reports: NI information stored for last 8 hours (60-minute increments)
  • PRMS: ANSI performance report messages

AGENCY APPROVALS

  • UL 1950
  • FCC Part 15 (Class A) and Part 68
  • NEBS Level 3

ENVIRONMENT

  • Operating Temperature: -40° to +70°C
  • Storage Temperature: -30° to 70°C, (-4° to 158°F)
  • Relative Humidity: Up to 95%, non-condensing

PHYSICAL

  • Dimensions: 3.5" H, 11" D, 8.5" W
  • Weight: 8 lbs (fully loaded)

POWER

  • AC Power (using external power supply): 90-130 VAC, 60 Hz, 50 W Max
  • DC Power: 40-56 VDC, 50 W Max
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
