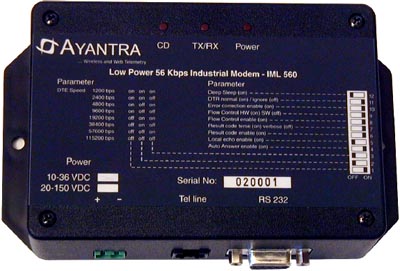

IML560 V.90 Low Power Modem VDC

Industrial Rated - DIP Switch Settings -
7ma Sleep Mode - Double Surge Protected

Hardened  Industrial  Grade Modems
Bell 103, 212, V.22, V.22bis, V.32, V.32bis, V.34, V.90

DC & AC Voltage - Temp Rated - ideal for Solar powered applications

To service the growing need for efficient, reliable data communications in the harsh environments of remote sites and industrial facilities. ARC has developed a modem that can operate from various AC & DC power supplies with a very low power mode and survive high surge levels and extreme heat and cold. All this without compromising the performance expected from state-of-the-art communications devices.

ARC modems  work in remote sites with very low failure rates. These devices work where other modems roll over and die. When a service call to a remote site can mean an all day trip this modem is the ideal solution.


With 7ma sleep mode this modem makes a great modem for those solar powered applications



  • RS-232 on a female DB-9
  • 3, 1.2, 2.4, 9.6, 14.4, 33.6, & 56kbps
  • V42bis and MNP10
  • DIP switch settings for modem configuration
    (no AT commands needed)
  • IML56-LV 6VDC to 36 VDC
  • IML56-HV 18 to 72 V AC or DC
  • (with floating ground)
  • On @ 12 volts:    70 ma
    rest:                     20 ma
    sleep                     7 ma
  • Double Surge Protection
  • -35oC to +80oC Operating Temp.
  • LEDs -  TX/RX, CD, PWR
  • Mounting Tabs are built in
  • DIN Rail Mounting Optional
  • Environmental:
    95% humidity, non-condensing -
    (Optional Coatings for high humidity)
  • Size -  3.5" W, 6" L, 1" H

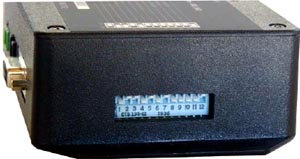

Modem Configuration DIP switch settings


SW1

SW2

SW3

Baud

ON

ON

ON

1,200

ON

ON

OFF

2,400

ON

OFF

ON

4,800

ON

OFF

OFF

9,600

OFF

ON

ON

19,00

OFF

ON

OFF

38,400

OFF

OFF

ON

57,600

OFF

OFF

OFF

115,200

SWITCH

Position

DESCRIPTION

SW4



ON

Auto Answer (ATS0=1)

OFF

Auto Answer Disable (ATS0=0)

     SW5



ON

Local Echo Enable (ATE1)

OFF

Local Echo Disable (ATE0)

SW6



ON

Response Mode Enable (ATQ0)

OFF

Response Mode Disable (ATQ1)

SW7

ON

Short Form result code (ATV0)

OFF

Long form result code (ATV1)

SW8



ON

Flow Control ON

OFF

Flow Control OFF

     SW9



ON

Hardware Flow Control

OFF

Software Flow Control

SW10



ON

Error Correction Enable

OFF

Error Correction Disable

SW11

ON

Normal DTR

OFF

Ignore Host DTR

SW12



will be used for sleep modem

 ordering info

jump to IML 14.4Kbps modem page


jump to User Guide PDF file

jump to AT Commands PDF file


jump to other modem pages


ARC ELECTRONICS
301-924-7400 EXT 25 / 512-864-0756
