T1 or E1 Fiber modem converter 4 port

 4 port T1 or E1 Fiber modem converter
single mode or Multi-mode


Features
  • Remote Management
  • Local and Remote Loopback
  • This feature puts a converter in a special mode that enables the device to loop back the signal from the RX port to the TX port on either media for testing and troubleshooting purposes.
  • AIS/TAOS
  • LEDs for each data port
  • DIP switches for line code, line length, local loopback or remote loopback
  • T1/E1 mode switch
  • Dry Relay Contacts on each TDM port
  • Local (AUX) Management Interface (RS232 connector)
    Switch selection for Data or Management mode on RS232 interface
  • Access to complete status information on local and remote device
  • Access to local and remote configuration
  • Switch or SNMP selected Baud rate operation

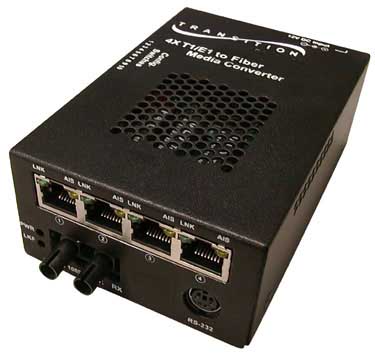

click for enlarged view



4x T1/E1 Transport Mux remotely-managed media converters are capable of transporting multiple T1/E1 lines, 10/100 Ethernet and an RS232 Data Channel over a single pair of fiber or a single fiber strand.

The Transport Mux is designed to address the needs of FTTx, such as Fiber-to-the-Business, Fiber-to-the-Building, Fiber-to-the-MDU and Fiber-to-the-Home. With the remotely-managed converter, service providers are able to achieve significant cost savings within the network by limiting the number of fiber runs required and increasing the level of integrated hands-on management control over each link in the system.

Transition's remotely managed Transport Mux media converter is available in two versions:




Product Number Port One Port Two
1) SAS4TEF1011-100 1300nm multimode (ST) [2 km/1.2 miles] Ports 2 5: (RJ-48) [1.5 km/0.9 mi.]; Port 6: 6-pin DIN [3 m/10 ft.]
2) AS4TEF1013-100 1300nm multimode (SC) [2 km/1.2 miles] Ports 2 5: (RJ-48) [1.5 km/0.9 mi.]; Port 6: 6-pin DIN [3 m/10 ft.]
3) AS4TEF1014-100 1310nm single mode (SC) [20 km/12.4 miles] Ports 2 5: (RJ-48) [1.5 km/0.9 mi.]; Port 6: 6-pin DIN [3 m/10 ft.]
4) AS4TEF1015-100 1310nm single mode (SC) [40 km/24.9 miles] Ports 2 5: (RJ-48) [1.5 km/0.9 mi.]; Port 6: 6-pin DIN [3 m/10 ft.]
5) AS4TEF1016-100 1310nm single mode (SC) [60 km/37.3 miles] Ports 2 5: (RJ-48) [1.5 km/0.9 mi.]; Port 6: 6-pin DIN [3 m/10 ft.]
6) AS4TEF1017-100 1550nm single mode (SC) [80 km/49.7 miles] Ports 2 5: (RJ-48) [1.5 km/0.9 mi.]; Port 6: 6-pin DIN [3 m/10 ft.]
7) AS4TEF1029-100 1310nm TX / 1550nm RX single fiber single mode (SC) [20 km/12.4 miles] Ports 2 5: (RJ-48) [1.5 km/0.9 mi.]; Port 6: 6-pin DIN [3 m/10 ft.]
8) AS4TEF1029-101 1550nm TX / 1310nm RX single fiber single mode (SC) [20 km/12.4 miles] Ports 2 5: (RJ-48) [1.5 km/0.9 mi.]; Port 6: 6-pin DIN [3 m/10 ft.]
9) AS4TEF1029-102 1310nm TX / 1550nm RX single fiber single mode (SC) [40 km/24.9 miles] Ports 2 5: (RJ-48) [1.5 km/0.9 mi.]; Port 6: 6-pin DIN [3 m/10 ft.]
10) AS4TEF1029-103 1550nm TX / 1310nm RX single fiber single mode (SC) [40 km/24.9 miles] Ports 2 5: (RJ-48) [1.5 km/0.9 mi.]; Port 6: 6-pin DIN [3 m/10 ft.]
